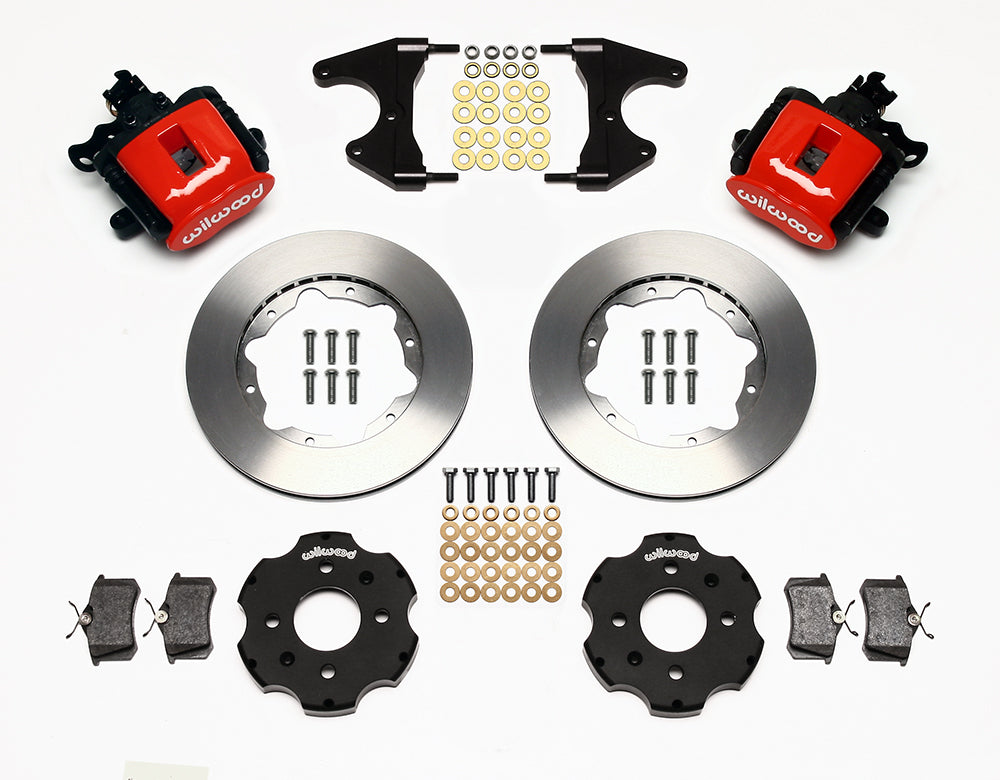

Wilwood rear CPB kit for Civic 2.46-inch drum hubs: red calipers and 11.00-inch plain-face rotor pieces laid out

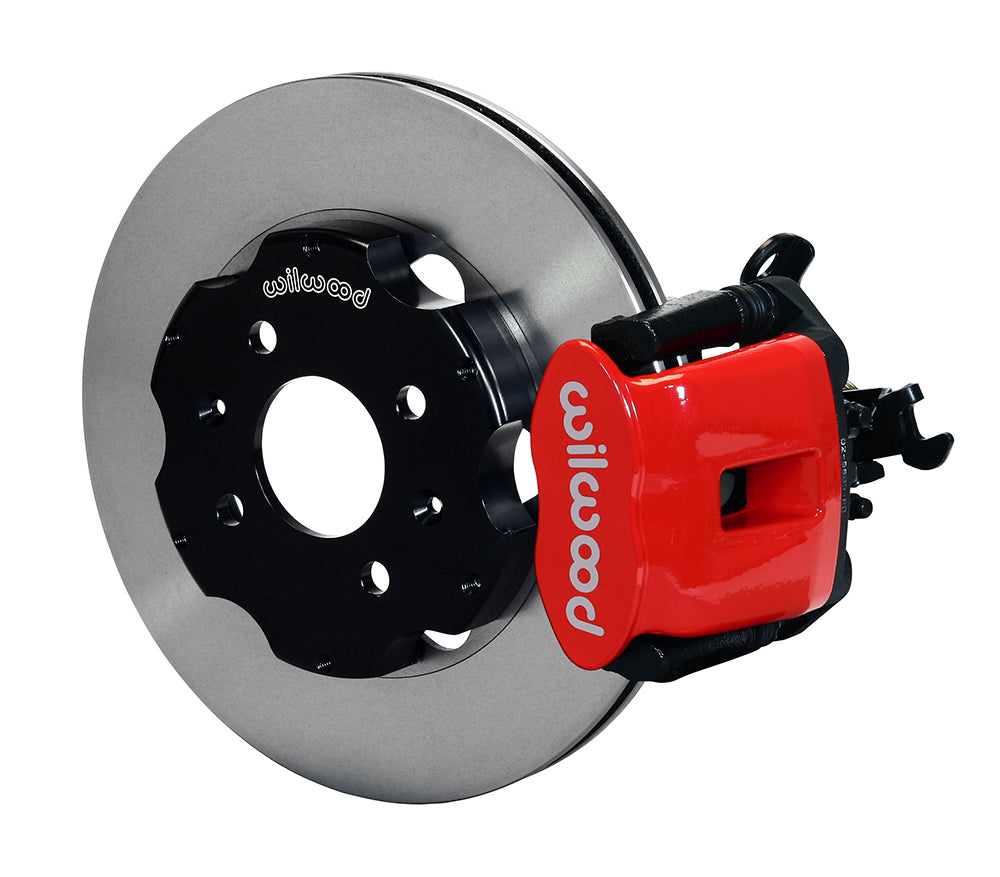

Wilwood rear red CPB caliper beside an 11.00-inch plain-face rotor, angled assembly for Civic 2.46-inch drum hubs
Wilwood rear CPB kit for Civic 2.46-inch drum hubs: red calipers and 11.00-inch plain-face rotor pieces laid out
Wilwood rear red CPB caliper beside an 11.00-inch plain-face rotor, angled assembly for Civic 2.46-inch drum hubs

Wilwood Rear Plain-Rotor Conversion with Red CPB Calipers, Honda Civic (1992–2000), 11-Inch, 2.46 Offset

SKU: 140-10208-R

$1,025.78 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This red Wilwood rear conversion is for Civic hubs originally used with 200 × 35 mm drums. The plain 11-inch vented rotor and separate hat work with a 2.46-inch offset, while the CPB caliper supplies both hydraulic braking and cable-operated parking. Original hub geometry remains the key mounting criterion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10208-R
  • Type: Combination Parking Brake Caliper Rear Brake Kit
  • Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
  • Bores: 1.34 inches. Pads: BP-10.
  • Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 30 vanes.
  • Axle flange offset: 2.46 inches.
  • Wheel bolt circles: 4 x 3.93 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Parking cables/connections separate.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Use the applicable Civic coupe, hatchback or sedan row and its gearbox or ABS notes. Measure the hub rather than selecting solely by the 1992–2000 year range. Rear flex lines and parking connections must be matched separately to the vehicle. Verify the lever's return, rotor centering and actual wheel clearance during assembly before the brakes are tested.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1992-1994 Honda Civic HB Auto Excludes SI Model Disc Drum Rear Kit 1, 2, 3
1992-1993 Honda Civic Sedan DX / LX Models w/ AT Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe DX w/ Auto Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe EX AT Disc Drum Rear Kit 1, 2, 3
1994 Honda Civic Sedan DX Models w/ AT Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ AT w/ out ABS Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ Auto Disc Drum Rear Kit 1, 2, 3
1995 Honda Civic Sedan DX w/ AT Disc Drum Rear Kit 1, 2, 3
1996-2000 Honda Civic Coupe DX / HX Models Disc Drum Rear Kit 1, 2, 3
1996-2000 Honda Civic HB Disc Drum Rear Kit 1, 2, 3
1996, 1998 Honda Civic Sedan w/ out ABS Disc Drum Rear Kit 1, 2, 3
1996-2000 Honda Civic EX Coupe EX Disc Drum Rear Kit 1, 2, 3
1996 Honda Civic EX Coupe EX w/out ABS Disc Drum Rear Kit 1, 2, 3
1996-2000 Honda Civic EX Sedan EX Disc Drum Rear Kit 1, 2, 3
1996 Honda Civic LX Sedan LX Disc Drum Rear Kit 1, 2, 3
1997 Honda Civic Sedan Excludes EX Disc Drum Rear Kit 1, 2, 3
1998-1999 Honda Civic GX Sedan GX Disc Drum Rear Kit 1, 2, 3
1999-2000 Honda Civic Sedan Disc Drum Rear Kit 1, 2, 3
