Wilwood Rear Red 11-Inch Drilled/Slotted Brake Kit for Honda Civic (1992–2000), 2.46-Inch Offset

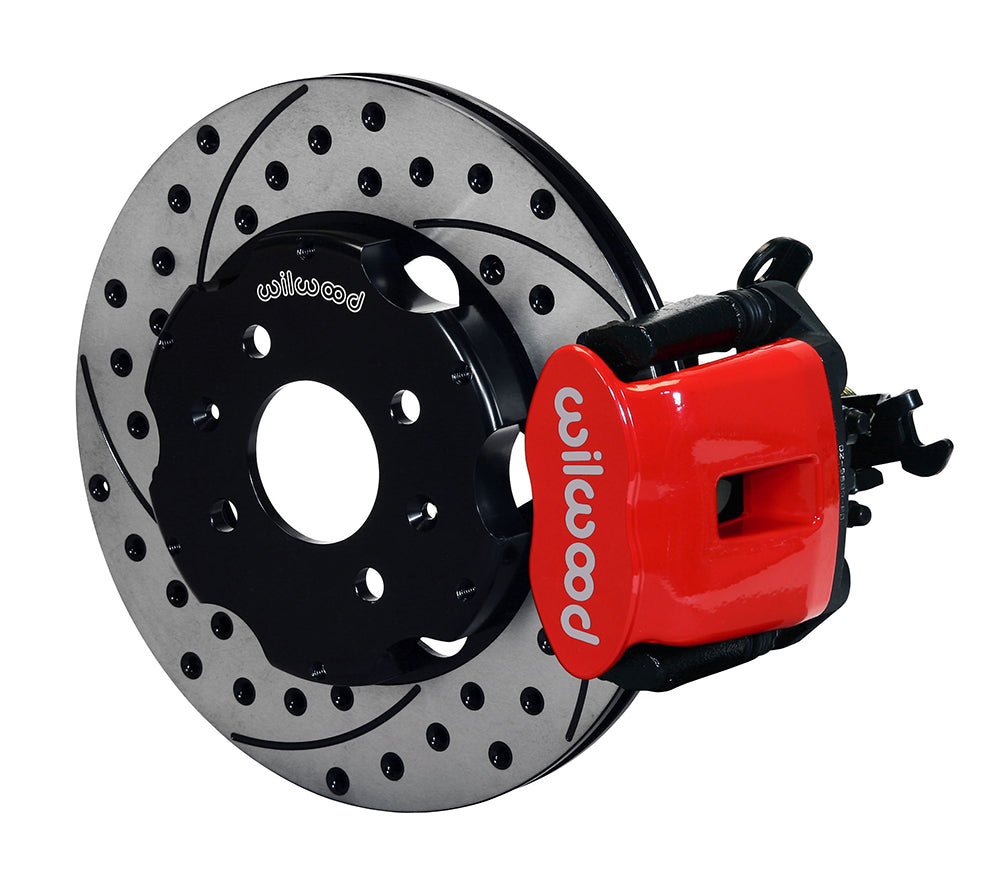

Red CPB calipers and drilled/slotted rotors distinguish this Wilwood 11-inch Civic rear package. It replaces the specified 200 × 35 mm rear-drum assembly using hats configured for 2.46-inch hub offset. The caliper combines a hydraulic service piston with a mechanical parking lever. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10208-DR
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 30 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

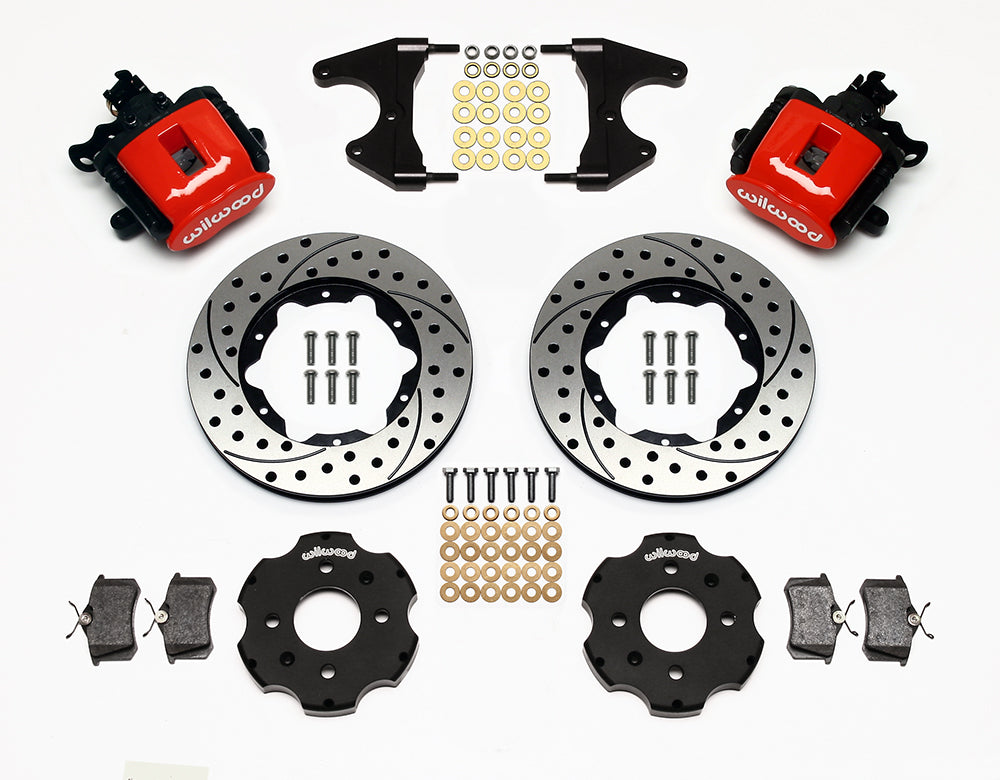

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the actual Civic hub arrangement, then confirm the transmission, ABS and body-style conditions in its application row. A 2.71-inch drum hub needs a different kit even if the vehicle name is identical. Confirm the hydraulic hose connections and parking-cable travel before installation. The wheel-clearance drawing must be checked against the complete wheel profile, including the spoke face behind the caliper.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
