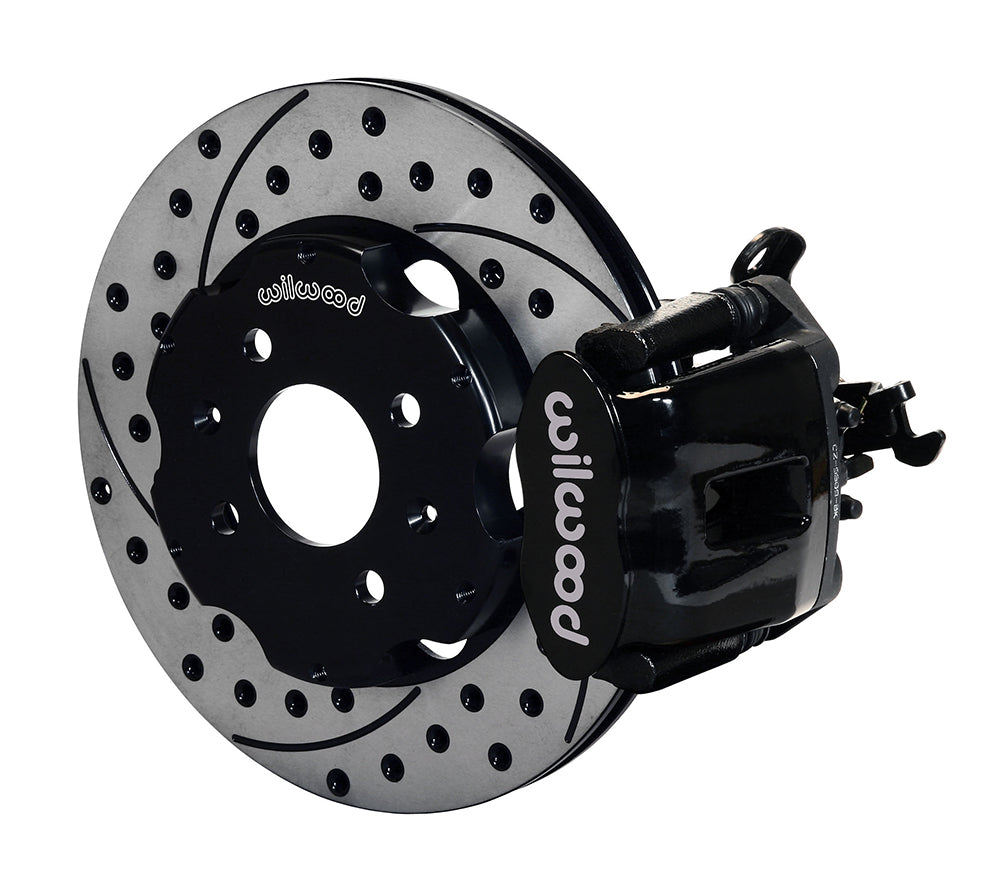

Wilwood Rear Drilled/Slotted 11-Inch CPB Kit, Black, Honda Civic (1992–2000), 200 × 35 mm Drum Hubs

Wilwood pairs black CPB calipers with drilled/slotted 11-inch rotors for this Civic rear drum-to-disc conversion. The bracket and hat dimensions correspond to the 200 × 35 mm drum hub at 2.46-inch offset. Cable parking operation is built into the hydraulic caliper, so no separate parking drum is added. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10208-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 30 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

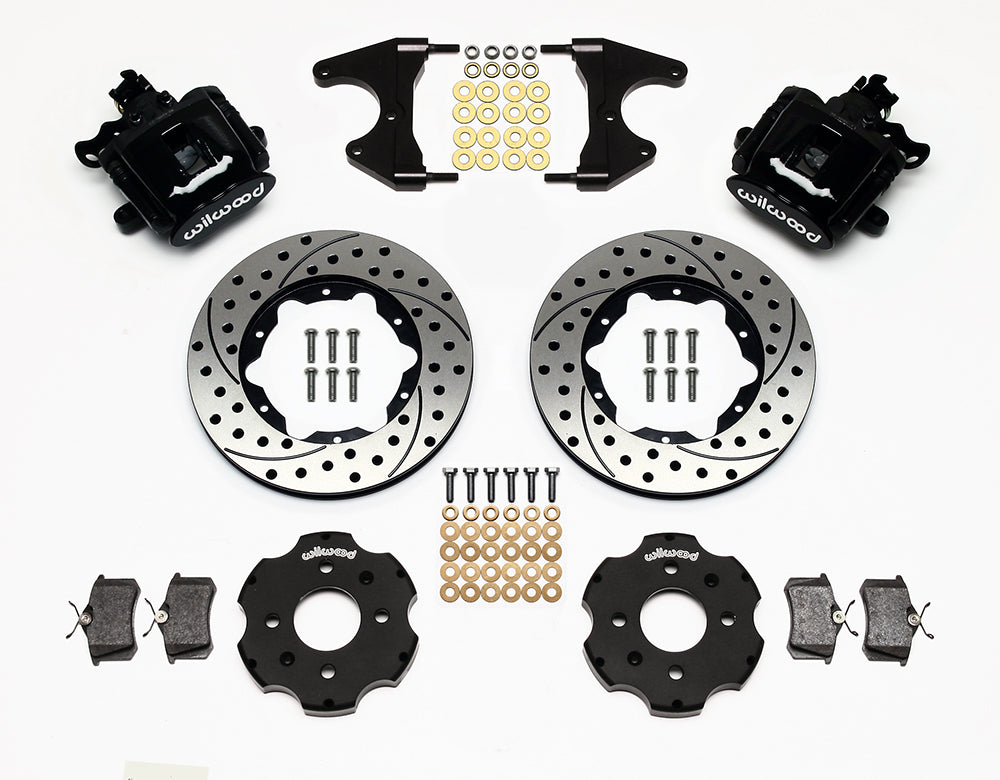

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the original drum size and measure the actual rear hub before selecting the kit. Civic trim, gearbox and ABS variants overlap across 1992–2000, making the exact model-option row relevant. Provide appropriate flex lines and parking cables separately. Check rotor centering after the hats are installed, and compare the selected wheels with the diagram for caliper and spoke clearance.

Match the individual model, year, submodel and brake configuration in the fitment table below.
