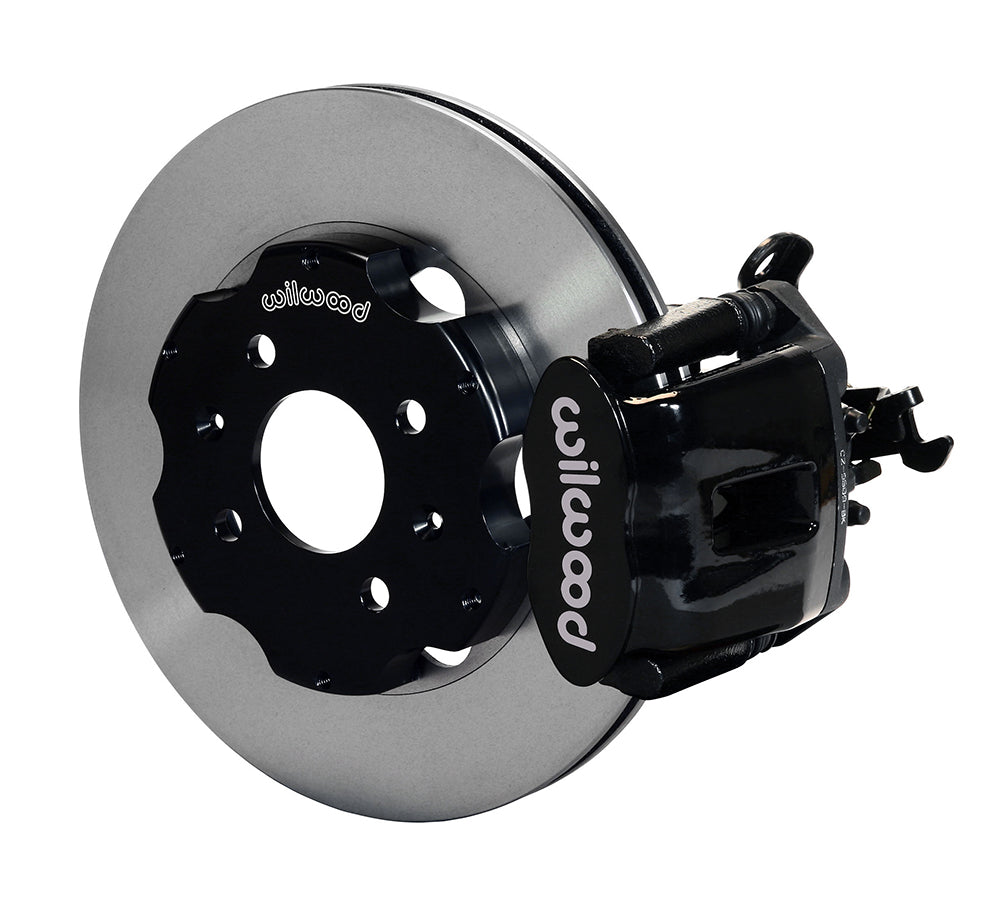

Wilwood Rear Black 11-Inch Plain Brake Conversion for Honda Civic (1992–2000), 2.46-Inch Drum Hubs

This Wilwood Civic kit converts the specified rear drum-hub arrangement to 11-inch vented disc brakes. Black combination parking calipers provide the service and parking functions, while separate hats locate the rotors at the required 2.46-inch hub offset. It is the package for the original 200 × 35 mm drum geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10208
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.34 inches. Pads: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 30 vanes.
• Axle flange offset: 2.46 inches.
• Wheel bolt circles: 4 x 3.93 inches.

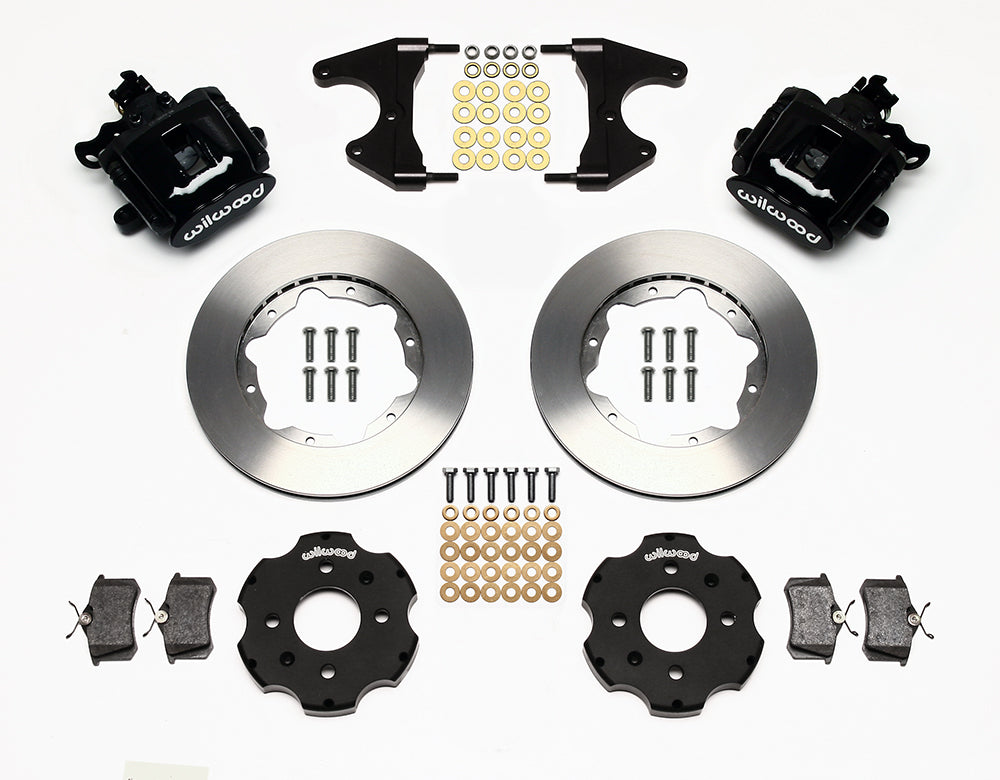

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the individual Civic coupe, sedan or hatchback row, including transmission and ABS qualifications. The 2.46-inch and 2.71-inch drum-hub arrangements are not interchangeable, even where model years overlap. Confirm the measured hub offset and bracket location before assembly. Select hydraulic lines and cable connections to match the car, and verify the actual wheel's inner contour with the installation template.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
