Product details

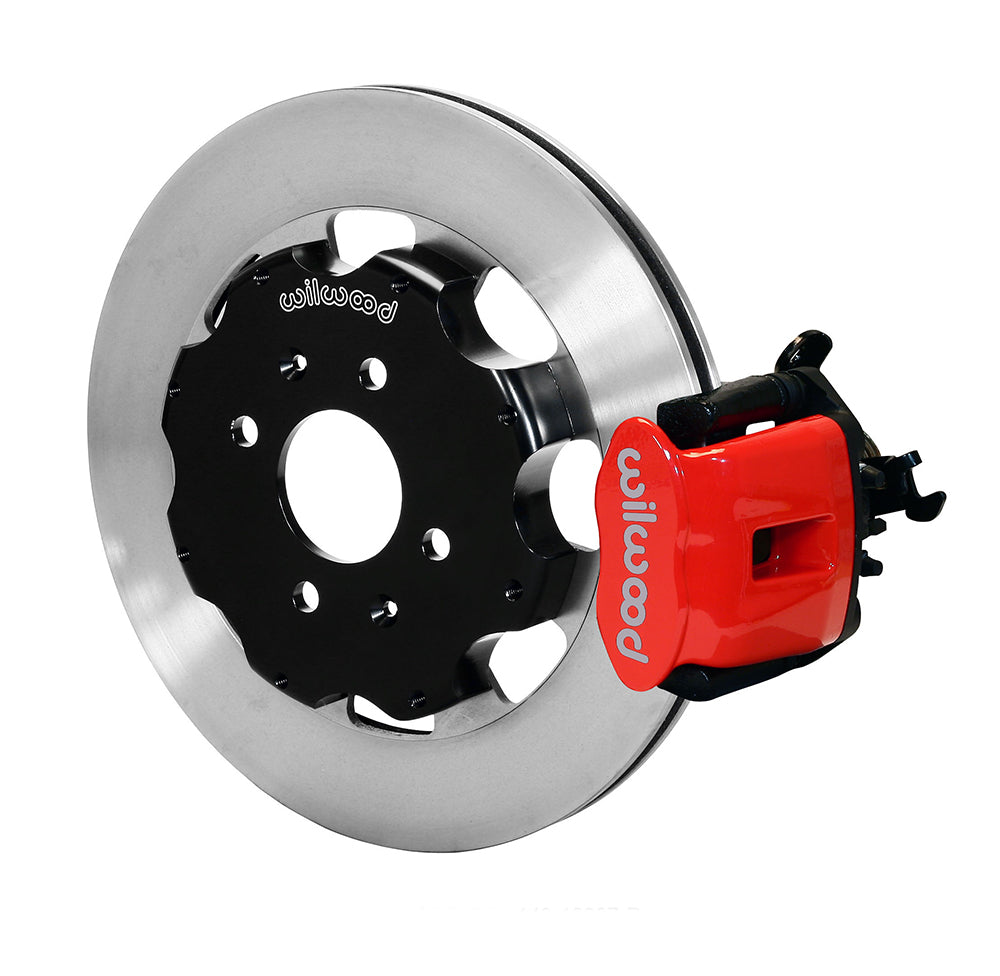

Plain-face 12.19-inch vented rotors and red CPB calipers form this Wilwood rear package. The hydraulic piston provides service braking, while a cable lever operates the parking mechanism inside the same caliper. The hats and brackets are specific to a 2.39-inch original-disc hub offset. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10207-R
- Type: Combination Parking Brake Caliper Rear Brake Kit
- Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
- Bores: 1.34 inches. Pads: BP-10.
- Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
- Axle flange offset: 2.39 inches.
- Wheel bolt circles: 4 x 3.93 inches.

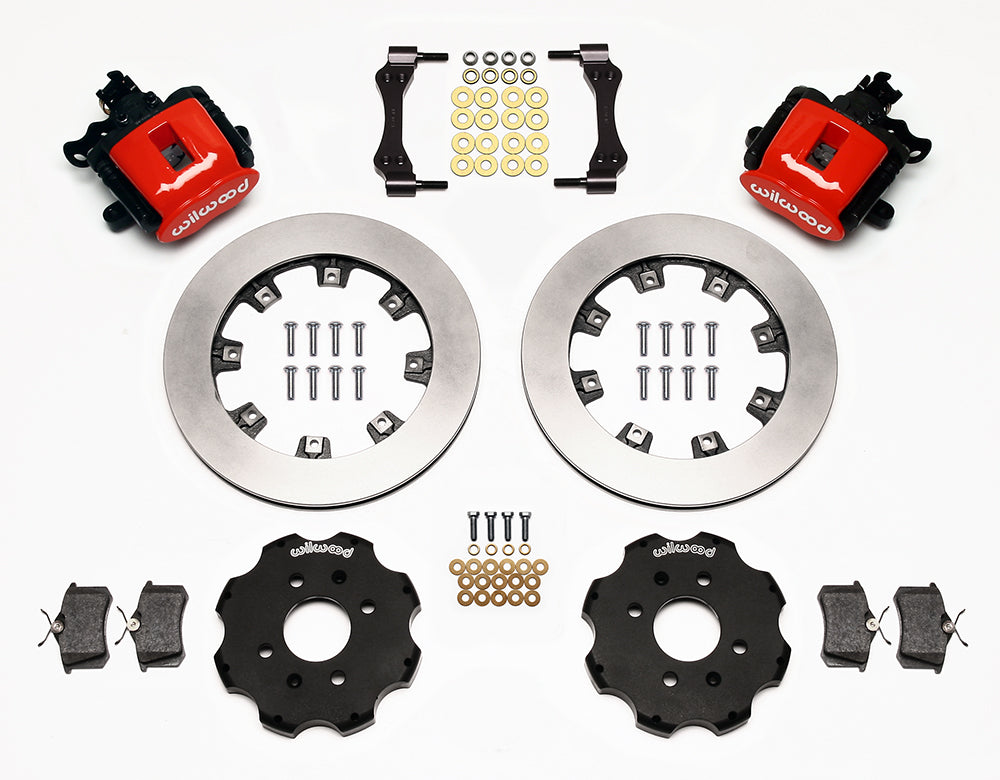

- Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Parking cables/connections separate.
- Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Check the correct Acura/Honda row and retain its rear-disc, ABS and body-style qualifications. The rotor diameter is not a substitute for a hub-offset measurement. Consult the actual wheel drawing because Wilwood's nominal wheel references vary between the kit summary and its note. Arrange hoses and parking-cable interfaces separately and inspect the assembled caliper alignment before bleeding.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1990-1996 | Acura | Integra | All | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1990-1991 | Honda | CRX | Si | SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1992-1995 | Honda | Civic | EX | Sedan EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1992-1993 | Honda | Civic | Si | HB SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1993 | Honda | Civic del Sol | w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | HB SI w/ out ABS | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | EX | Coupe EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1994-1995 | Honda | Civic | Si | Hatchback SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1994 | Honda | Civic del Sol | W/ Rear Disc VTEC | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc S | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc w/ ABS VTEC | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1997-2001 | Acura | Integra | All, Except Type-R | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1999-2000 | Honda | Civic | Si | Coupe SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
