Product details

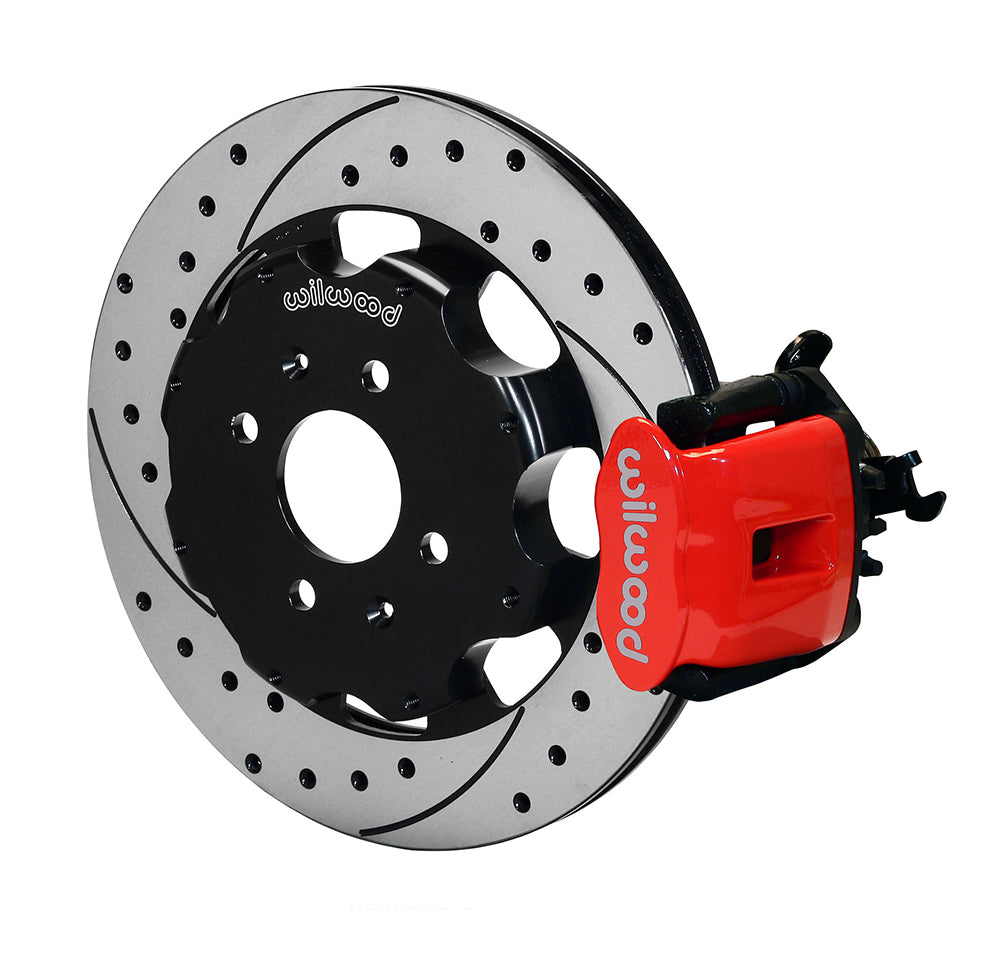

This red Wilwood rear kit combines 12.19-inch SRP drilled/slotted rotors with single-piston combination parking calipers. Separate rotor hats and radial brackets locate on the original disc-brake hub with a 2.39-inch offset. The larger rotor does not change the requirement for that specific rear hub arrangement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10207-DR
- Type: Combination Parking Brake Caliper Rear Brake Kit
- Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
- Bores: 1.34 inches. Pads: BP-10.
- Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
- Axle flange offset: 2.39 inches.
- Wheel bolt circles: 4 x 3.93 inches.

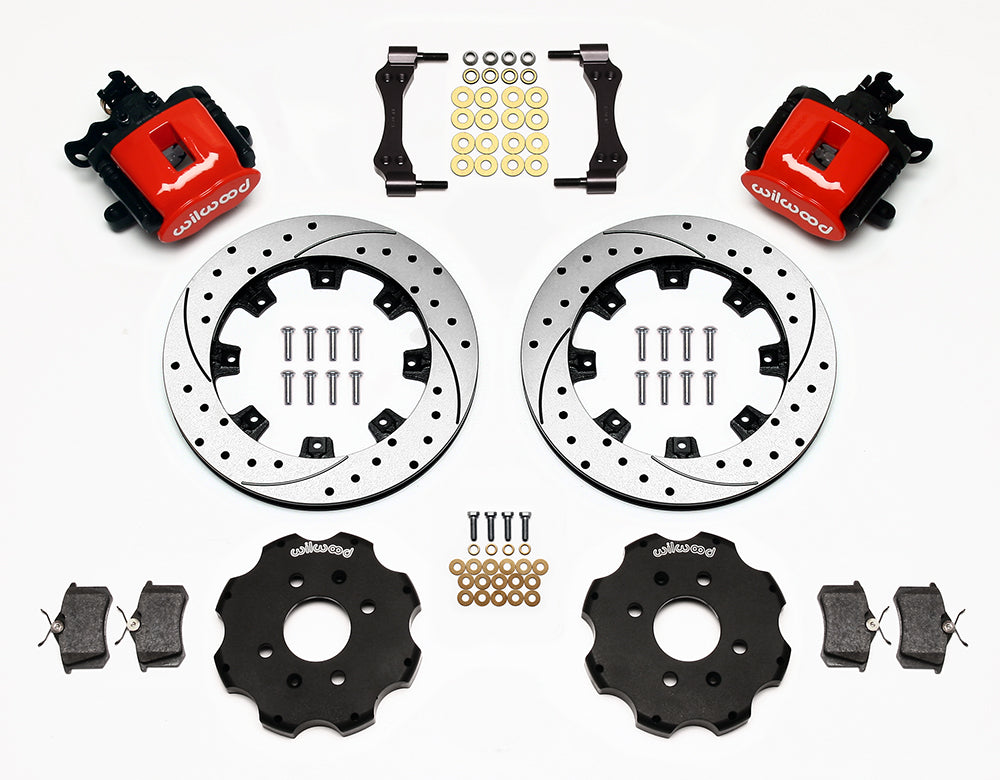

- Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Parking cables/connections separate.
- Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Verify each listed Integra, Civic, Civic del Sol or CRX configuration, especially ABS and body-style distinctions. A car converted from drums needs its actual hub dimensions checked, not just its current caliper type. Use the wheel template to resolve the differing nominal wheel-size references. Choose compatible flex lines and parking cables, then confirm the lever fully releases with the cable slack adjusted correctly.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1990-1996 | Acura | Integra | All | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1990-1991 | Honda | CRX | Si | SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1992-1995 | Honda | Civic | EX | Sedan EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1992-1993 | Honda | Civic | Si | HB SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1993 | Honda | Civic del Sol | w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | HB SI w/ out ABS | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | EX | Coupe EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1994-1995 | Honda | Civic | Si | Hatchback SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1994 | Honda | Civic del Sol | W/ Rear Disc VTEC | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc S | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc w/ ABS VTEC | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1997-2001 | Acura | Integra | All, Except Type-R | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1999-2000 | Honda | Civic | Si | Coupe SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
