Product details

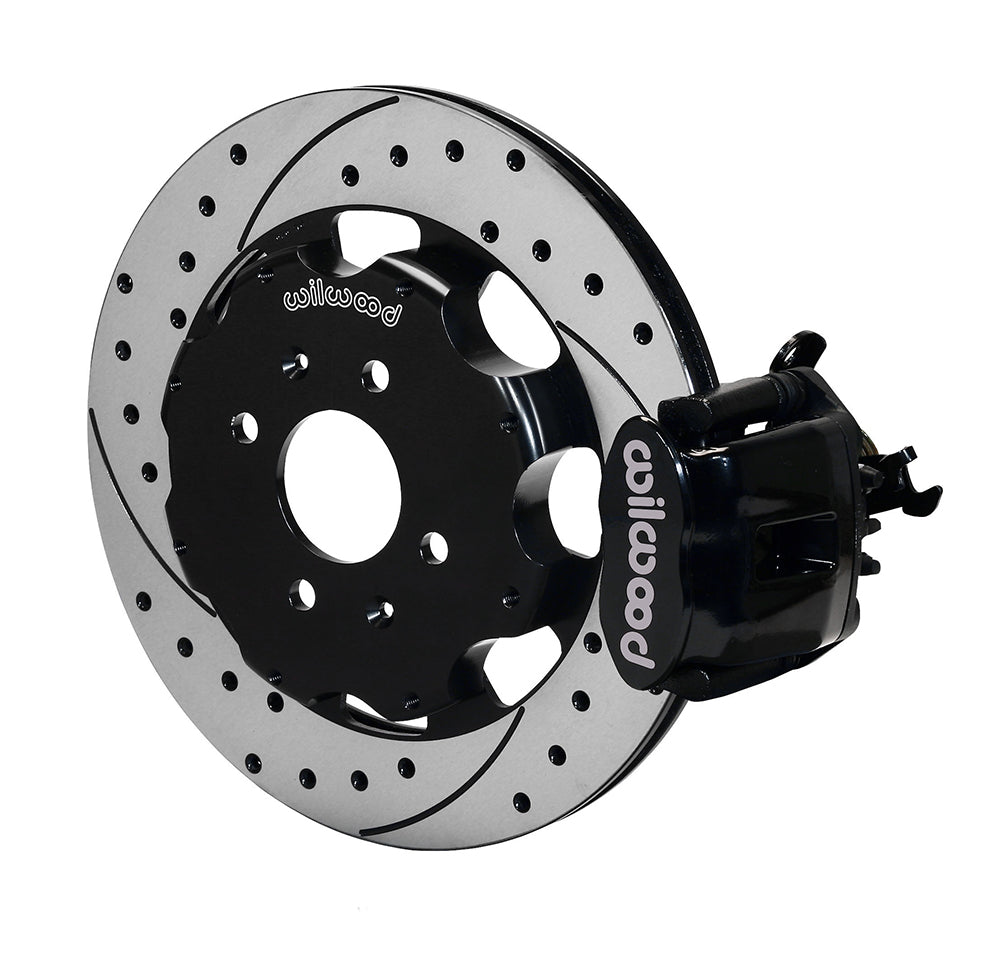

Black CPB calipers work over 12.19-inch drilled/slotted rotors in this Wilwood rear conversion. The mounting package retains the original rear-disc hub arrangement and places the vented friction ring on a separate hat. Parking-brake operation is mechanical through the caliper lever, sharing the caliper with hydraulic service braking. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10207-D
- Type: Combination Parking Brake Caliper Rear Brake Kit
- Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
- Bores: 1.34 inches. Pads: BP-10.
- Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
- Axle flange offset: 2.39 inches.
- Wheel bolt circles: 4 x 3.93 inches.

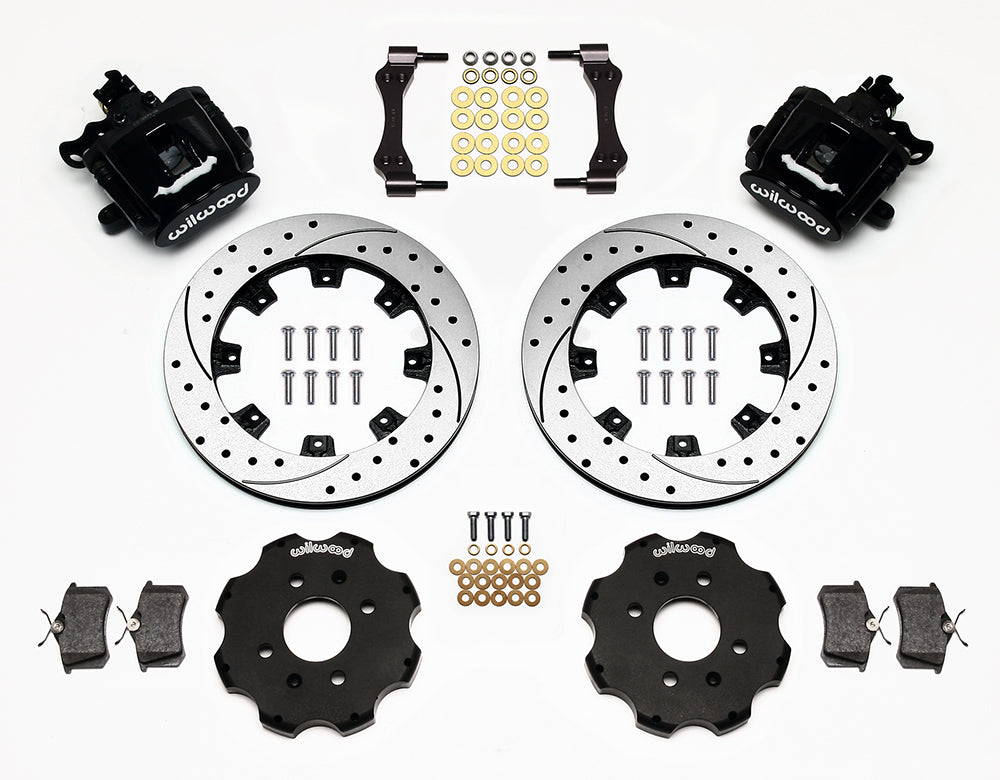

- Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Parking cables/connections separate.
- Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Match the individual Honda/Acura application, including ABS and original rear-disc equipment. Measure hub offset at 2.39 inches rather than substituting a drum-hub dimension. The manufacturer's wheel-size references differ, making the full clearance template essential. Confirm hose end fittings, cable travel and wheel spoke depth before assembly; the hydraulic lines and parking connections are not supplied as a complete vehicle plumbing system.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1990-1996 | Acura | Integra | All | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1990-1991 | Honda | CRX | Si | SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1992-1995 | Honda | Civic | EX | Sedan EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1992-1993 | Honda | Civic | Si | HB SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1993 | Honda | Civic del Sol | w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | HB SI w/ out ABS | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | EX | Coupe EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1994-1995 | Honda | Civic | Si | Hatchback SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
| 1994 | Honda | Civic del Sol | W/ Rear Disc VTEC | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc S | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc w/ ABS VTEC | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1997-2001 | Acura | Integra | All, Except Type-R | Disc | Disc | Rear Kit | 1, 2, 3, 4 | |
| 1999-2000 | Honda | Civic | Si | Coupe SI | Disc | Disc | Rear Kit | 1, 2, 3, 4 |
