Product details

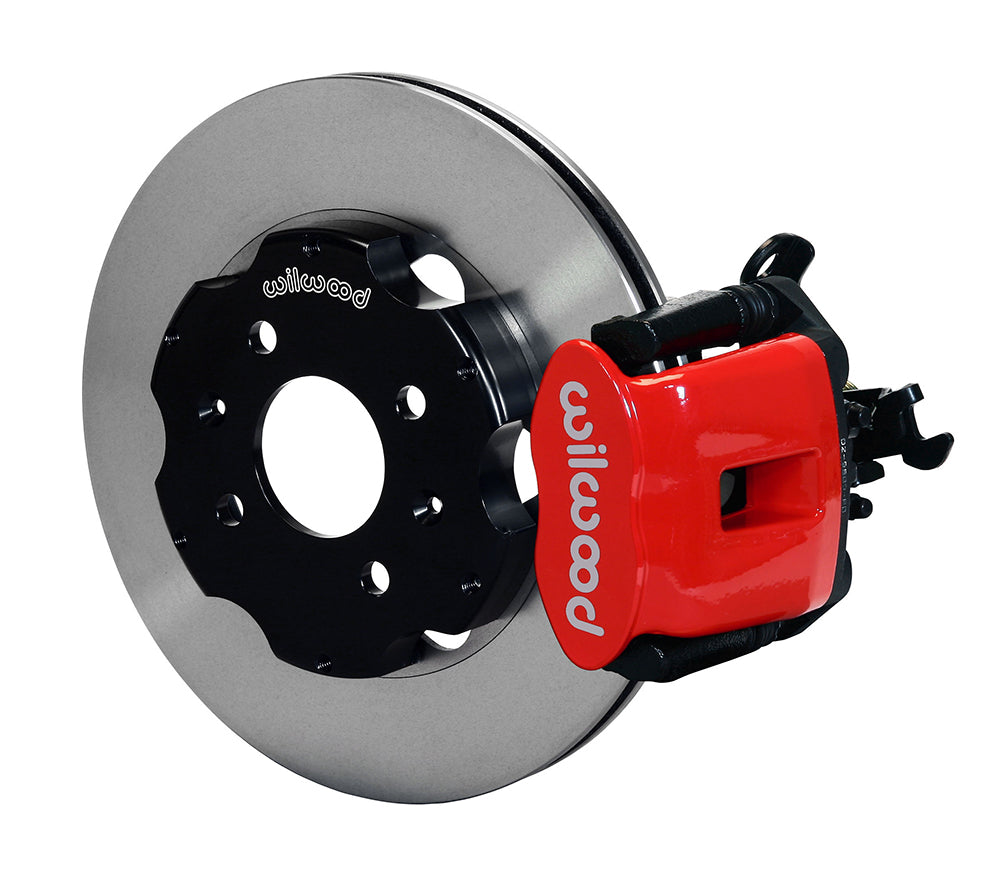

Red combination parking calipers clamp plain-face vented rotors in this Wilwood 11-inch rear conversion. The rotor hats and brackets are located for original rear disc hubs at 2.39-inch offset. A cable-operated parking mechanism is incorporated into each hydraulic caliper, rather than added as an internal drum. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10206-R
- Type: Combination Parking Brake Caliper Rear Brake Kit
- Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
- Bores: 1.34 inches. Pads: BP-10.
- Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 30 vanes.
- Axle flange offset: 2.39 inches.
- Wheel bolt circles: 4 x 3.93 inches.

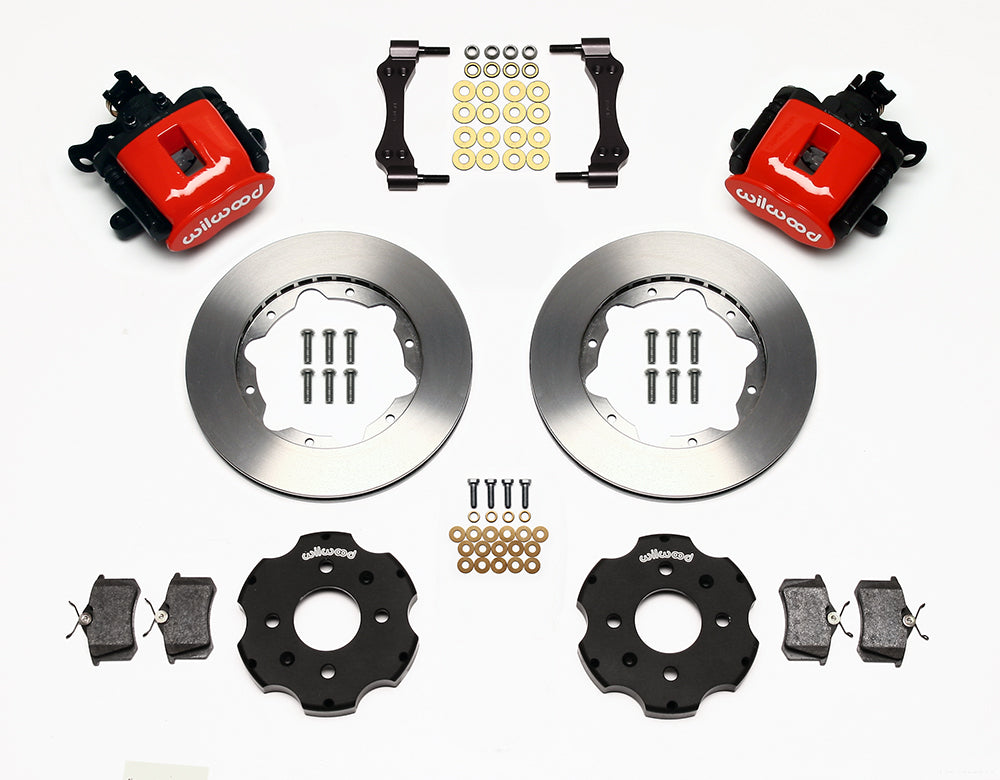

- Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Parking cables/connections separate.
- Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Read the specific Integra, CRX, Civic or Civic del Sol model option and verify the original rear-disc configuration. The disc and drum hub offsets are different physical arrangements. Check caliper centering and cable release during assembly, with suitable hydraulic lines chosen separately. Compare the wheel's inner profile with the clearance diagram instead of relying only on its nominal size.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1990-1996 | Acura | Integra | All | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1990-1991 | Honda | CRX | Si | SI | Disc | Disc | Rear Kit | 1, 2, 3 |
| 1992-1995 | Honda | Civic | EX | Sedan EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3 |
| 1992-1993 | Honda | Civic | Si | HB SI | Disc | Disc | Rear Kit | 1, 2, 3 |
| 1993 | Honda | Civic del Sol | w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1994-1995 | Honda | Civic | HB SI w/ out ABS | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1994-1995 | Honda | Civic | EX | Coupe EX w/ Rear Disc | Disc | Disc | Rear Kit | 1, 2, 3 |
| 1994-1995 | Honda | Civic | Si | Hatchback SI | Disc | Disc | Rear Kit | 1, 2, 3 |
| 1994 | Honda | Civic del Sol | W/ Rear Disc VTEC | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc S | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc SI | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc w/ ABS VTEC | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1997-2001 | Acura | Integra | All, Except Type-R | Disc | Disc | Rear Kit | 1, 2, 3 | |
| 1999-2000 | Honda | Civic | Si | Coupe SI | Disc | Disc | Rear Kit | 1, 2, 3 |
