Wilwood Front Forged Dynalite Drag Conversion for GM/Ford/Mercury Cars (1960–1982), 10.75-Inch Drilled Rotors

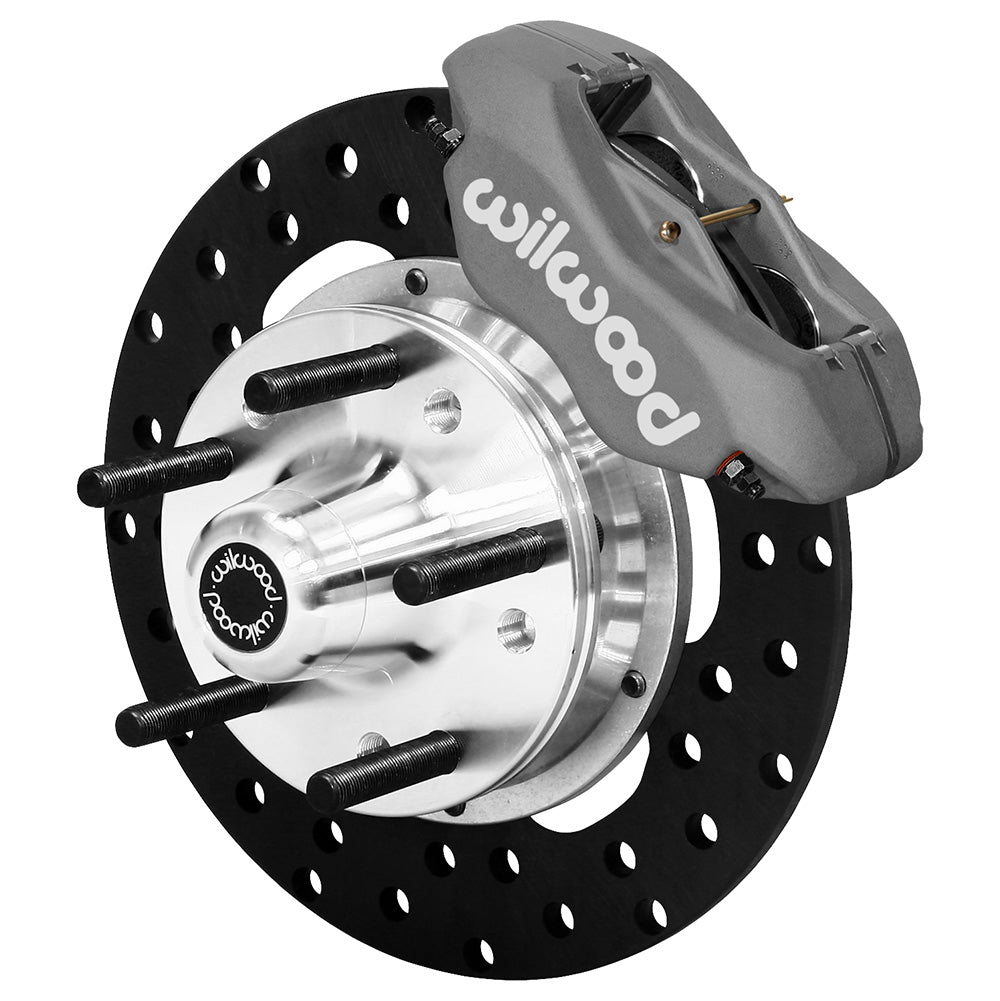

Wilwood's four-piston Dynalite front drag kit uses drilled solid steel rotors and aluminum replacement hubs for the specified spindle combinations. The 10.75-inch friction rings are 0.35 inches wide and mount independently of the hubs. Because the model list includes several aftermarket front-suspension arrangements, the spindle configuration matters as much as the vehicle year. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-1017-BD
• Type: Forged Dynalite Front Drag Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons; Type III Anodize.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 10.75-inch diameter × 0.35-inch width; Drilled, Steel, Black Oxide. Solid, unvented.
• Wheel mounting change from OE: -.12 inches per side.
• Hubs: Hub - Solid Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

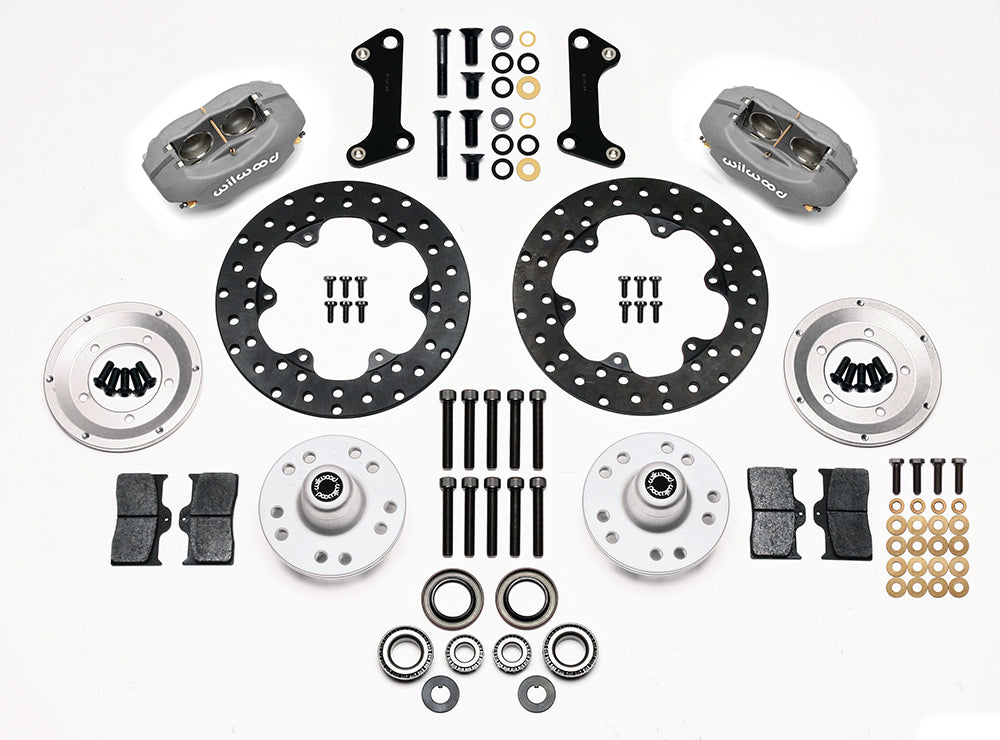

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Read the individual model and original disc/drum or Ridetech pin-spindle entry before ordering. Follow DS192 for any required spindle preparation and hub-bearing selection. The wheel mounting face changes by -0.12 inches relative to the stated OE reference, which must be included in the wheel-position check. Supply appropriate hydraulic plumbing and verify the actual wheel's barrel and spoke clearance.

Match the individual model, year, submodel and brake configuration in the fitment table below.
