Wilwood Rear Red Mustang Brake/Parking Conversion (2005–2014), 12.88-Inch Drilled/Slotted

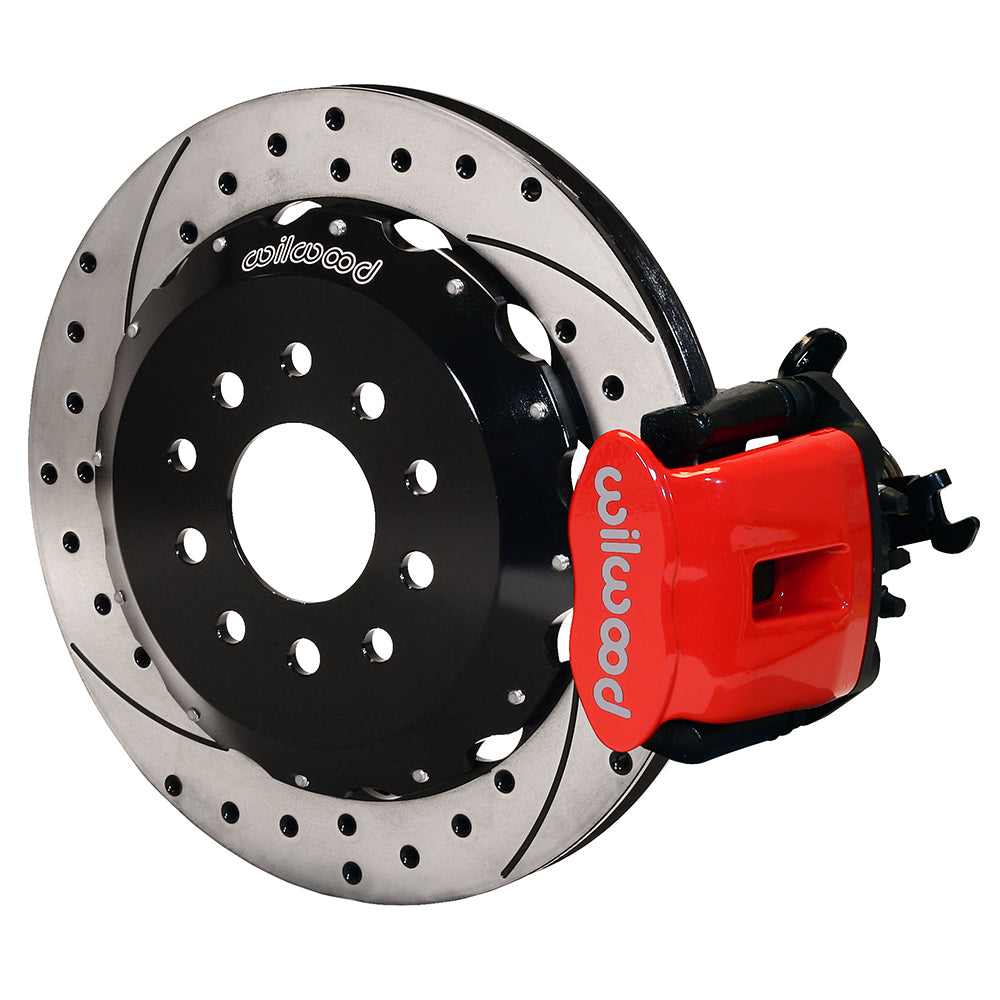

Red CPB calipers and drilled/slotted Spec-37 rotors make up this Wilwood rear Mustang conversion. It provides hydraulic service braking and cable-actuated parking without an internal parking drum. The 12.88-inch rotor diameter works with the selected caliper brackets and 2.66-inch axle offset. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10159-DR
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Red Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.00-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Rear housing end: Mustang 05-up.
• Axle flange offset: 2.66 inches.
• Wheel bolt circles: 5 X 4.50 inches.

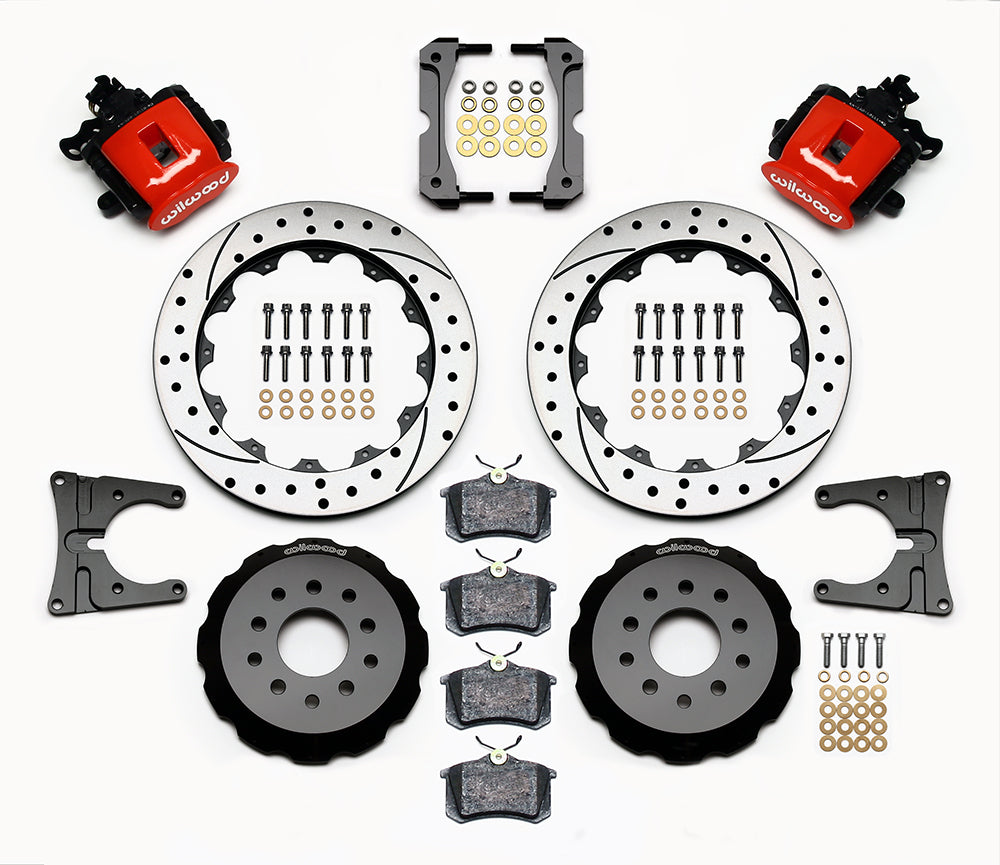

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the rear housing dimensions and the specific Mustang model option listed below. Front brake equipment alone does not identify this rear mounting pattern. Confirm that the parking cable can operate and release the CPB lever through its required travel, and select the CPB-specific hose arrangement. Before assembly, use the wheel template to check clearance behind the spokes as well as around the rim barrel.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
