Wilwood Rear Black 12.88-Inch Drilled/Slotted CPB Kit for Ford Mustang (2005–2014), 2.66-Inch Offset

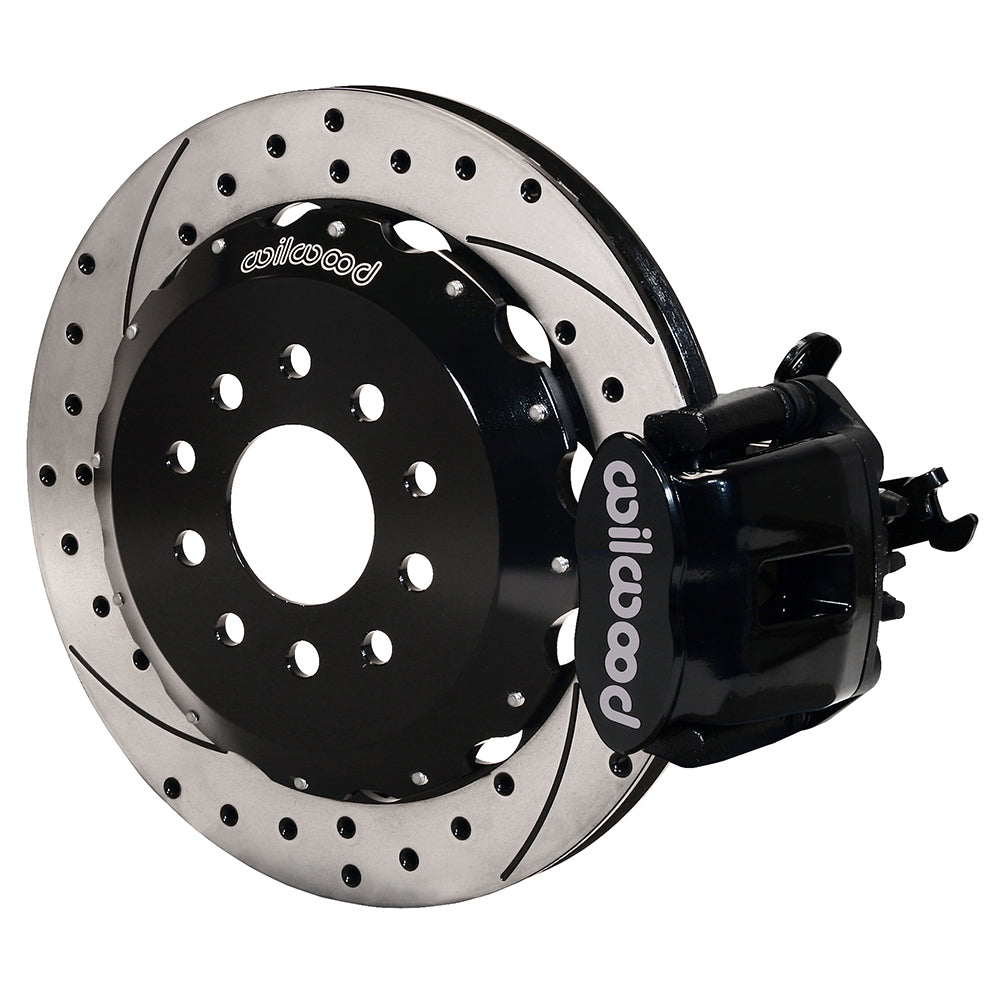

Black combination parking calipers clamp drilled/slotted vented rotors in this Wilwood Mustang package. The friction rings measure 12.88 × 1.00 inches and mount on separate hats, while the caliper's lever provides cable-operated parking. The brackets locate to the later Mustang housing at 2.66-inch offset. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10159-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.00-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Rear housing end: Mustang 05-up.
• Axle flange offset: 2.66 inches.
• Wheel bolt circles: 5 X 4.50 inches.

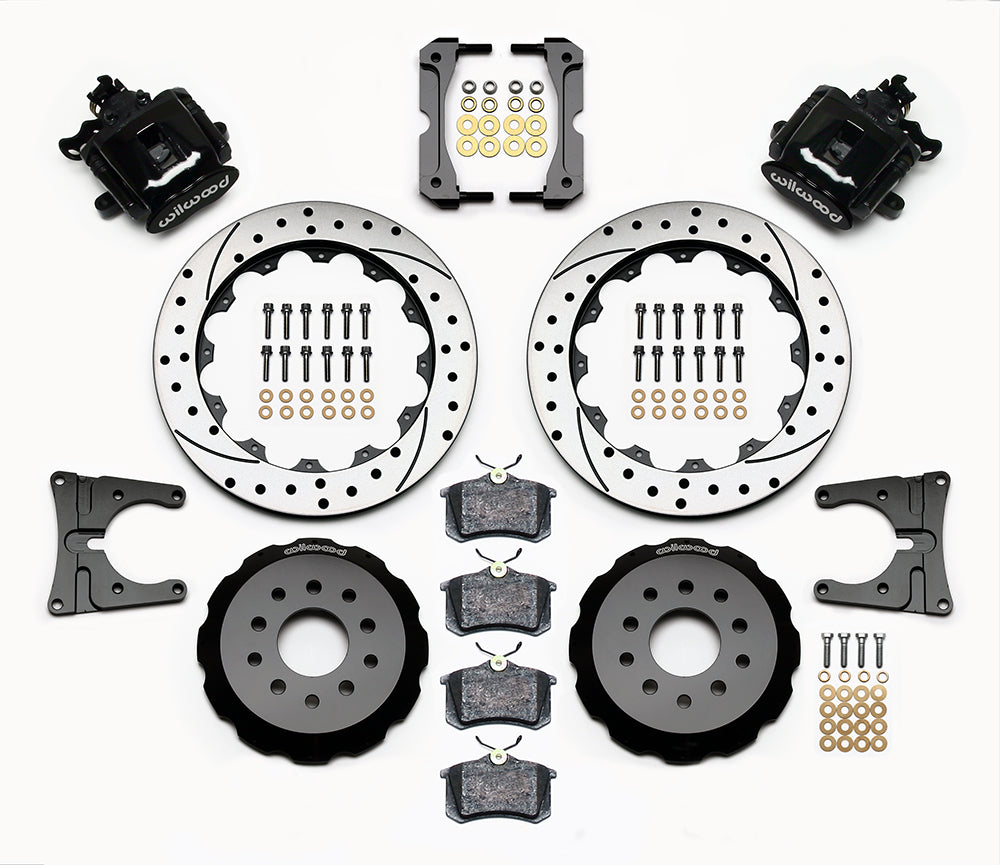

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the individual 2005–2014 Mustang application and rear axle rather than selecting by a Brembo or other front-brake label. The CPB kit uses its own rear flex-line arrangement, distinct from the internal-drum conversion. Plan suitable hydraulic connections and cable routing separately, then check both wheel barrel clearance and caliper-to-spoke space using the supplied diagram.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
