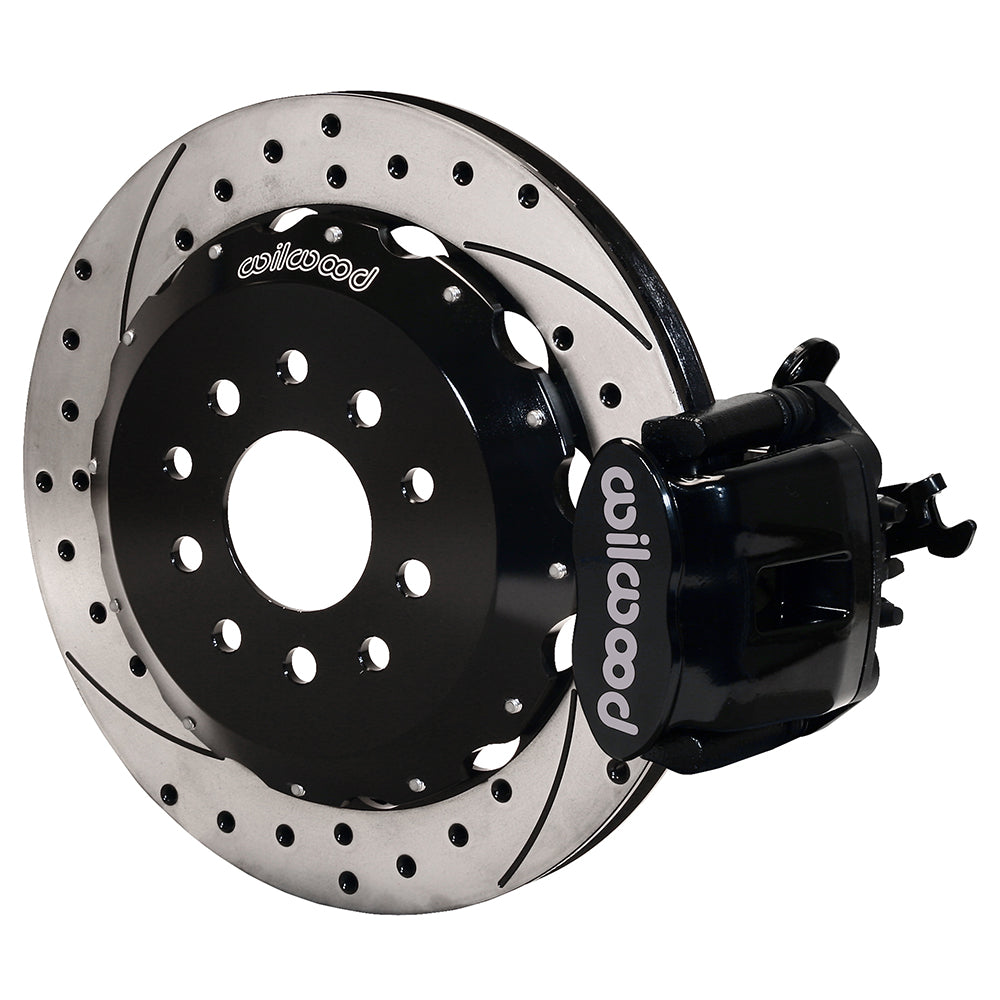

Wilwood Rear Mustang CPB Conversion (1994–2004), Black Calipers and 12.88-Inch Drilled/Slotted Rotors

Drilled/slotted Spec-37 rotors distinguish this black-caliper Wilwood rear conversion for the Mustang solid axle. Each CPB caliper combines hydraulic service braking with a mechanical parking lever, avoiding a separate drum assembly. The selected rotor is 12.88 inches in diameter and 1.00 inch wide. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10158-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.00-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Rear housing end: 8.8 Ford 94-04.
• Axle flange offset: 3.25 inches.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

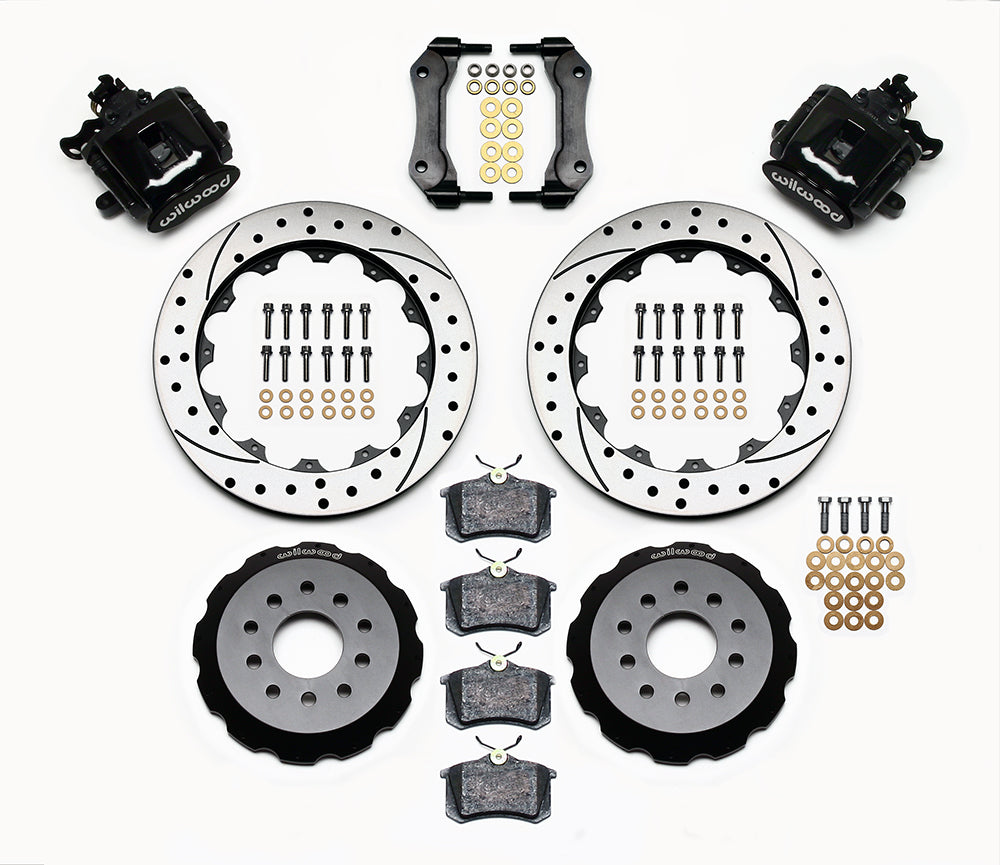

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Cobra IRS rear suspensions are excluded. Measure the solid-axle mounting arrangement and confirm the 3.25-inch offset against the installation drawing. The 1995–1998 application requires custom rear flex lines, unavailable through Wilwood, while the parking cable installation must also be matched to the car. Verify wheel depth as well as diameter before fitting the brake assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
