Wilwood Rear Black Combination Parking Brake Kit for Ford Mustang (1994–2004), 12.88-Inch GT Slotted

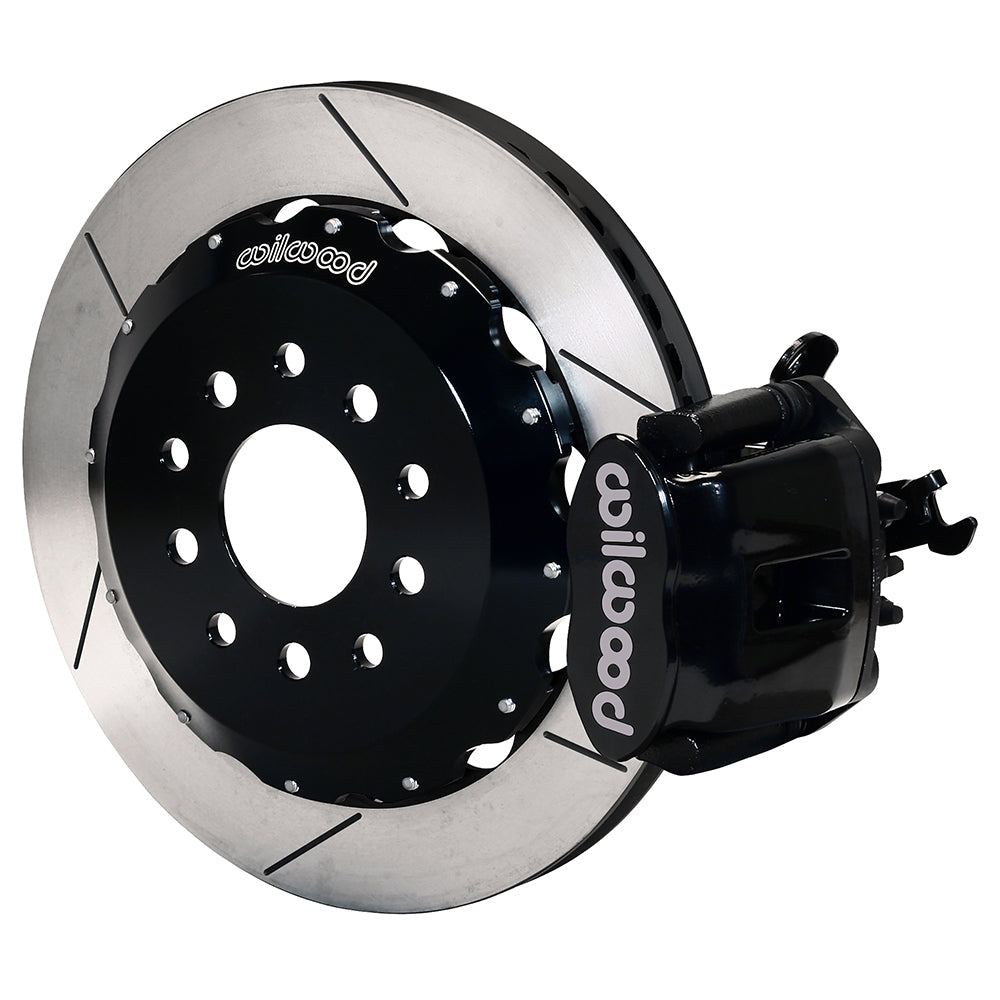

Wilwood's rear Mustang CPB kit combines a hydraulic single-piston caliper with a cable-operated parking mechanism. Black calipers clamp 12.88-inch GT slotted rotors, mounted on hats for the 1994–2004 solid rear axle. The package does not fit Cobra independent rear suspension. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10158
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston; Black Powder Coat.
• Bores: 1.62 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.00-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Rear housing end: 8.8 Ford 94-04.
• Axle flange offset: 3.25 inches.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

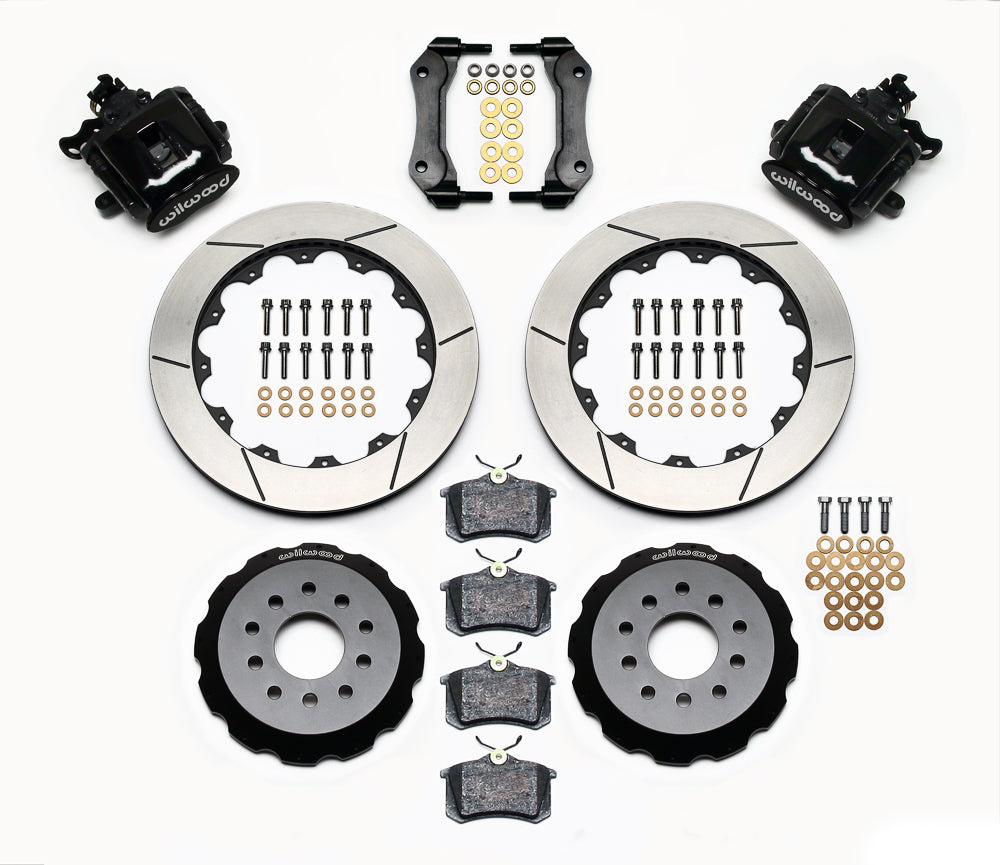

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the 8.8-inch Ford housing arrangement and 3.25-inch axle offset before installation. For 1995–1998 cars, Wilwood specifically calls for a custom rear hose solution that it does not supply. Later hose references still require application selection. Check parking-cable attachment, rotor-to-caliper alignment and the wheel clearance drawing rather than assuming every Mustang rear brake package is interchangeable.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
