Wilwood Front Two-Piston Drag Brake Kit, Ford Pinto/Mustang II and Mercury Bobcat (1971–1980), 10-Inch Drilled

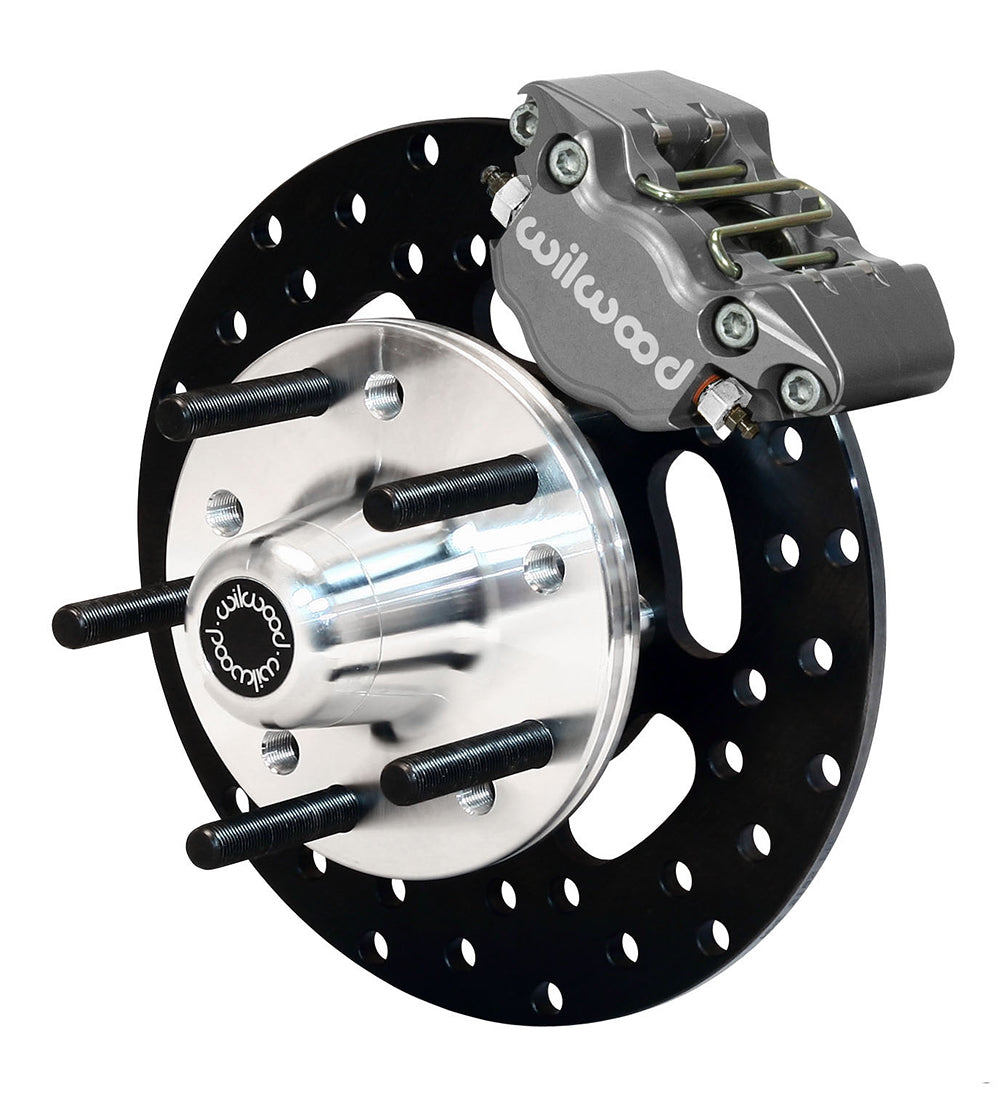

This Wilwood front drag kit uses two-piston Dynapro Single calipers over drilled 10.00-inch solid steel rotors. Replacement five-lug hubs adapt the specified Pinto/Mustang II spindle arrangement for competition use. The 0.32-inch rotor width and two-piston layout set it apart from the larger four-piston Dynalite kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-1012-D
• Type: Dynapro Single Front Drag Brake Kit
• Calipers: Dynapro Single; 2 pistons; Type III Anodize.
• Bores: 1.75 inches. Pads: BP-10.
• Rotors: 10.00-inch diameter × 0.32-inch width; Drilled, Steel, Black Electro Coat. Solid, unvented.
• Wheel mounting change from OE: +.41 inches per side.
• Hubs: Hub - Solid Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

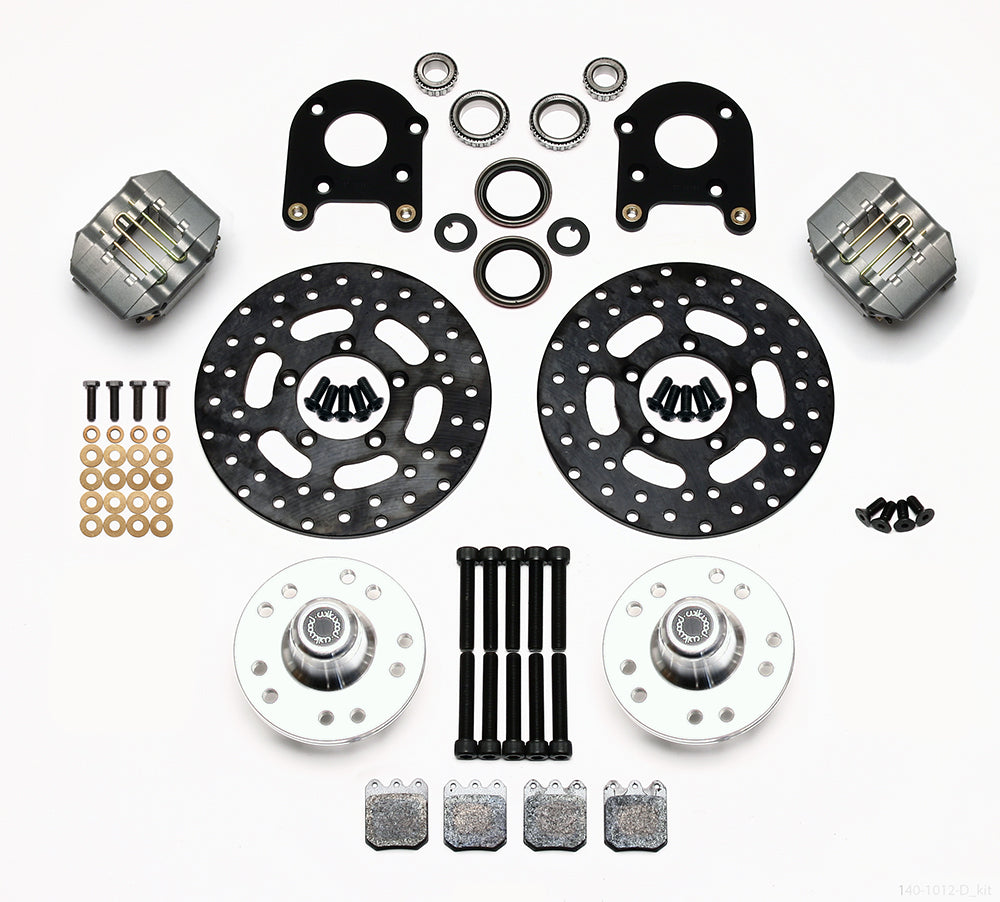

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 14 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: For use on four wheel disc equipped cars up to 2400 pounds. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Select the correct 1971–1980 Pinto, 1974–1978 Mustang II or 1975–1980 Bobcat application and compare the original disc/drum spindle. The supplied hubs support five-lug configurations rather than retaining four-lug wheels. Check the +0.41-inch wheel offset change and the clearance diagram for the chosen wheel. Hydraulic lines are separate, and any master-cylinder pushrod adjustment depends on the existing hydraulic setup.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
