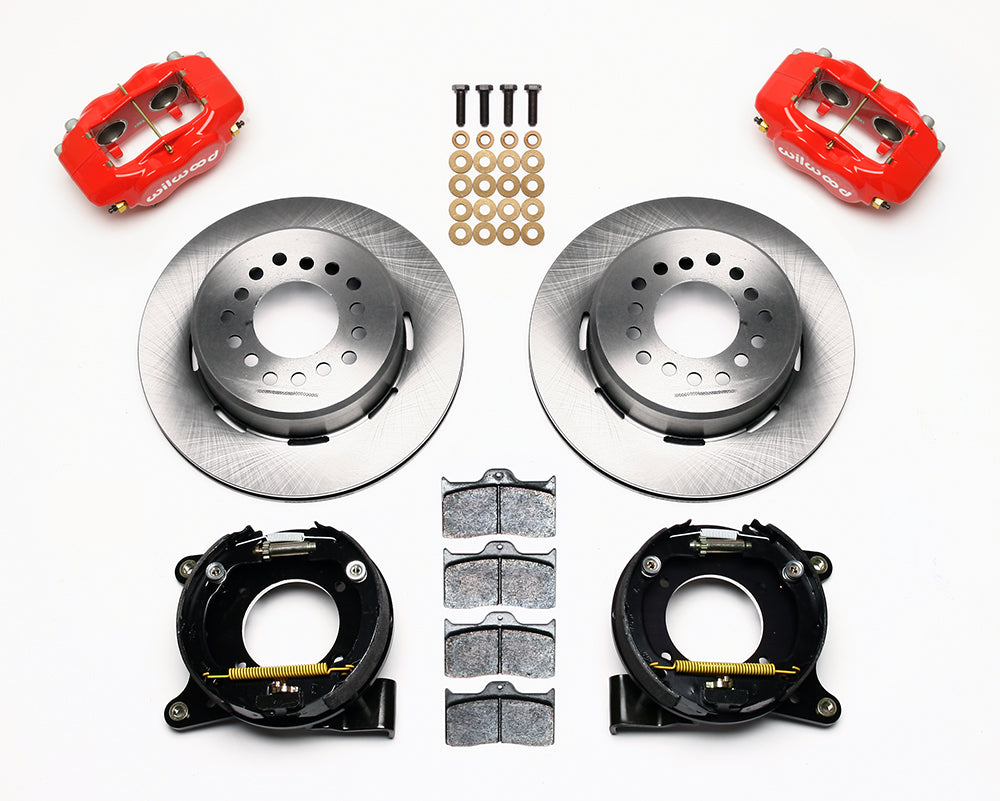

Wilwood rear Dynalite kit for C10 2.42-inch-offset parking brake: red calipers and 12.19-inch plain-face rotor pieces laid out

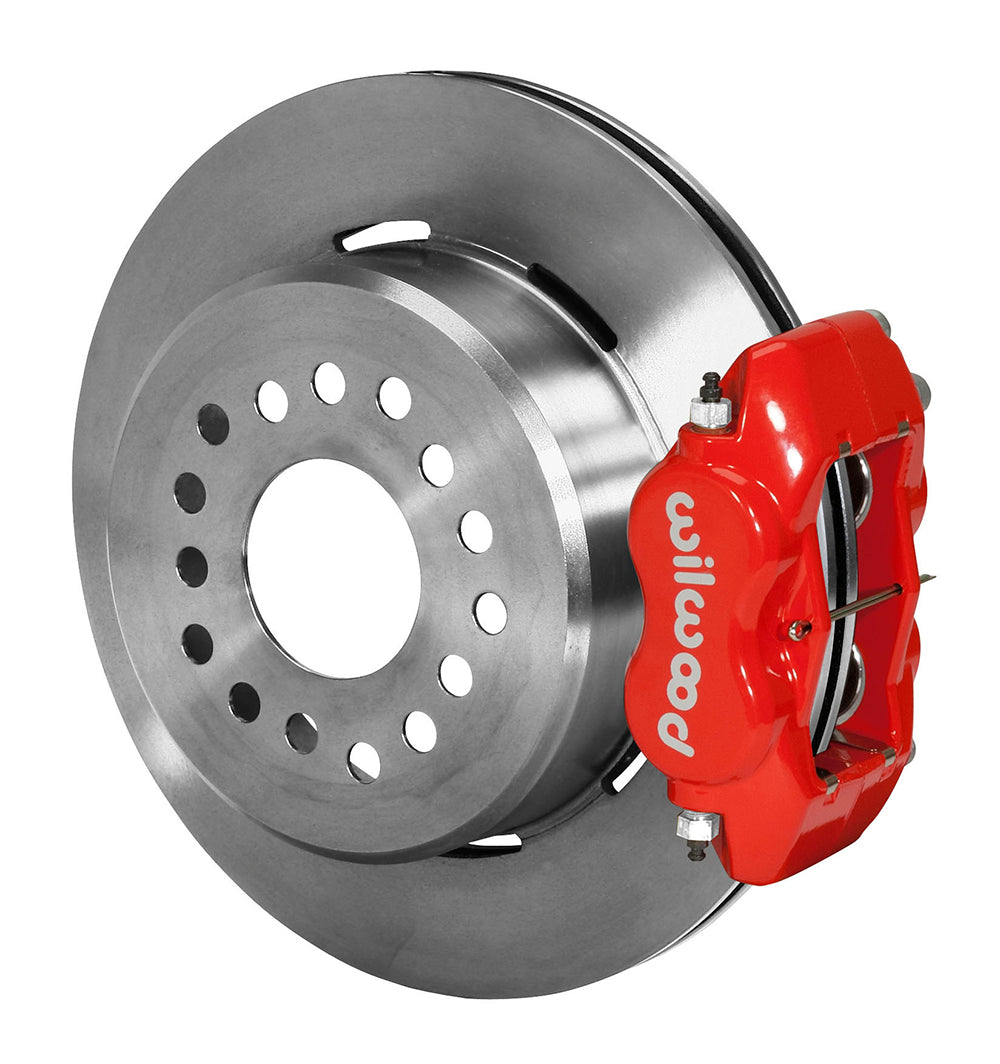

Wilwood rear red Dynalite caliper beside a 12.19-inch plain-face rotor, angled assembly for C10 2.42-inch-offset parking brake
Wilwood rear Dynalite kit for C10 2.42-inch-offset parking brake: red calipers and 12.19-inch plain-face rotor pieces laid out
Wilwood rear red Dynalite caliper beside a 12.19-inch plain-face rotor, angled assembly for C10 2.42-inch-offset parking brake

Wilwood Rear Plain-Rotor Parking Brake Kit, Red Dynalite Calipers, Chevrolet/GMC Trucks (1963–1987), 2.42 Offset

SKU: 140-10094-R

$1,114.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The plain-face version of Wilwood's Dynalite rear truck package combines red four-piston calipers with integrated rotor-and-hat assemblies. Internal parking shoes provide a mechanical parking function independently of the hydraulic caliper. A large C10 housing end at 2.42-inch offset is required for bracket alignment. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10094-R
  • Type: Forged Dynalite Rear Parking Brake Kit
  • Calipers: Forged Dynalite Internal; 4 pistons; Red Powder Coat.
  • Bores: 1.38, 1.38 inches. Pads: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
  • Rear housing end: Large Chevy C10.
  • Axle flange offset: 2.42 inches.
  • Wheel bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware. Internal parking-shoe assemblies included.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Parking cables/connections separate.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the five-lug Chevrolet/GMC rear axle measurements against DS583, including bearing registration and flange-to-axle distance. Front steering or suspension equipment cannot confirm this rear conversion. Provide compatible hydraulic hoses and parking cable connections, and check that the completed system has suitable front/rear brake balance. Verify wheel clearance with the diagram before installation.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1963-1967 Chevrolet C10 Panel 4 x 2 Drum Drum Rear Kit 1, 2, 3
1963-1967 Chevrolet C10 Panel Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1967 Chevrolet C10 Panel Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1963-1970 Chevrolet C10 Pickup 4 x 2 Drum Drum Rear Kit 1, 2, 3
1963-1974 Chevrolet C10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1974 Chevrolet C10 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 Chevrolet Suburban 4 x 2 Drum Drum Rear Kit 1, 2, 3
1963-1966 Chevrolet Suburban 4 x 4 Drum Drum Rear Kit 1, 2, 3
1963-1966 Chevrolet Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 Chevrolet Suburban Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 Chevrolet Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 Chevrolet Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1963-1964 GMC 1000 Series 4 x 2 Drum Drum Rear Kit 1, 2, 4, 3
1963-1965 GMC 1000 Series Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1965 GMC 1000 Series Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1965 GMC 1000 Series Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1963-1965 GMC 1000 Series Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1963-1964 GMC Suburban 4 x 2 Drum Drum Rear Kit 1, 2, 4, 3
1963-1966 GMC Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 GMC Suburban Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 GMC Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1963-1966 GMC Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1965, 1967, 1969 Chevrolet C10 Pickup w/ Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 5, 4, 3
1965 GMC 1000 Series 4 x 2 Drum Drum Rear Kit 1, 2, 3
1965 GMC 1000 Series 4 x 4 Drum Drum Rear Kit 1, 2, 3
1965-1966 GMC Suburban 4 x 2 Drum Drum Rear Kit 1, 2, 3
1965 GMC Suburban 4 x 4 Drum Drum Rear Kit 1, 2, 3
1966 GMC 1000 4 x 2 Drum Drum Rear Kit 1, 2, 3
1966 GMC 1000 4 x 4 Drum Drum Rear Kit 1, 2, 3
1966 GMC 1000 Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1966 GMC 1000 Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1966 GMC 1000 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1966 GMC 1000 Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1967-1970 Chevrolet C10 Suburban 4 x 2 Drum Drum Rear Kit 1, 2, 3
1967-1986 Chevrolet C10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1967-1986 Chevrolet C10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1967-1970 GMC C15/C1500 Suburban 4 x 2 Drum Drum Rear Kit 1, 2, 3
1967-1974 GMC C15/C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1967-1974 GMC C15/C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1967-1970 GMC C1500 Pickup 4 x 2 Drum Drum Rear Kit 1, 2, 3
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1969-1970 Chevrolet Blazer 4 x 4 Drum Drum Rear Kit 1, 2, 3
1970 Chevrolet Blazer 4 x 2 Drum Drum Rear Kit 1, 2, 3
1970-1974 Chevrolet Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1970-1974 Chevrolet Blazer Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1970-1974 Chevrolet Blazer Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1970-1974 Chevrolet Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1970 GMC Jimmy 4 x 2 Drum Drum Rear Kit 1, 2, 3
1970 GMC Jimmy 4 x 4 Drum Drum Rear Kit 1, 2, 3
1970-1982 GMC Jimmy Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1970-1982 GMC Jimmy Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1970-1982 GMC Jimmy Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1970-1982 GMC Jimmy Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1971-1972 Chevrolet Blazer 4 x 2 w/ OE Disc Brake Spindle Disc Drum Rear Kit 1, 2, 3
1971-1974 Chevrolet C10 Pickup Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1971-1980 Chevrolet C10 Suburban Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1971-1974, 1979-1980 GMC C1500 Pickup Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1971-1982 GMC Jimmy 4 x 2 Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1971-1972 GMC P15 Series 4 x 2 w/ OE Disc Brake Spindle Disc Drum Rear Kit 1, 2, 3
1973-1974 Chevrolet Blazer 4 x 2, OE Disc Brake Spindle Disc Drum Rear Kit 1, 2, 3
1973-1974 Chevrolet Blazer Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1973-1974 Chevrolet C10 Pickup Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1973-1986 Chevrolet C10 Suburban Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1973-1974 Chevrolet G10 Van All Disc Drum Rear Kit 1, 2, 3
1973-1974 Chevrolet G20 Van All Disc Drum Rear Kit 1, 2, 3
1973-1974 GMC C15/C1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1973-1974, 1979-1986 GMC C1500 Pickup Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1973-1982 GMC Jimmy Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1973-1980 GMC P15 Series All Disc Drum Rear Kit 1, 2, 3
1975-1980 Chevrolet C10 Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1975-1986 Chevrolet C10 Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1975-1986 Chevrolet C10 Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1975-1986 Chevrolet C10 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1975-1986 Chevrolet C10 Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1975-1986 Chevrolet C10 w/ Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 5, 4, 3
1975-1987 Chevrolet G10 Beauville Beauville Disc Drum Rear Kit 1, 2, 3
1975-1987 Chevrolet G10 Chevy Van Chevy Van Disc Drum Rear Kit 1, 2, 3
1975-1987 Chevrolet G10 Sportvan Sportvan Disc Drum Rear Kit 1, 2, 3
1975-1980 Chevrolet K5 Blazer 4 x 2, OE Disc Brake Spindle Disc Drum Rear Kit 1, 2, 3
1975-1982 Chevrolet K5 Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1975-1982 Chevrolet K5 Blazer Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1975-1982 Chevrolet K5 Blazer Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1975-1978 GMC C15 Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1975-1978 GMC C15 Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1975-1978 GMC C15 Suburban Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1975-1978 GMC C15 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1975-1978 GMC C15 Suburban Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1975-1978 GMC C15 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1975-1978 GMC C15 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1979-1980 GMC C1500 Suburban Disc Brake Spindle (OE) Disc Drum Rear Kit 1, 2, 3
1979-1986 GMC C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1979-1986 GMC C1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1979-1986 GMC C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1981-1986 Chevrolet C10 With 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1986 Chevrolet C10 With 1.25" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1986 Chevrolet C10 Suburban With 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1986 Chevrolet C10 Suburban With 1.25" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1982 Chevrolet K5 Blazer 4 x 2 Disc Drum Rear Kit 1, 2, 3
1981-1986 GMC C1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1986 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1986 GMC C1500 Suburban 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1981-1986 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1983 Chevrolet G10 Base Base Disc Drum Rear Kit 1, 2, 3
1983-1984, 1986-1987 Chevrolet G10 Bonaventure Bonaventure Disc Drum Rear Kit 1, 2, 3
1985-1987 Chevrolet G20 Beauville Beauville Disc Drum Rear Kit 1, 2, 3
1985-1987 Chevrolet G20 Chevy Van Chevy Van Disc Drum Rear Kit 1, 2, 3
1985-1987 Chevrolet G20 Sportvan Sportvan Disc Drum Rear Kit 1, 2, 3
1987 Chevrolet R10 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 Chevrolet R10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 Chevrolet R10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Pickup Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Pickup w/ Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 5, 4, 3
1987 Chevrolet R10 Suburban 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 Chevrolet R10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 Chevrolet R10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Suburban Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1987 Chevrolet R10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 GMC R1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 GMC R1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Pickup Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Suburban 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 GMC R1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor Disc Drum Rear Kit 1, 2, 3
1987 GMC R1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Rear Kit 1, 2, 4, 3
1987 GMC R1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1, 2, 4, 3
