Wilwood Front Plain-Rotor Pro-Street Kit, Red Calipers, Ford Mustang (1994–2004), 11.75-Inch

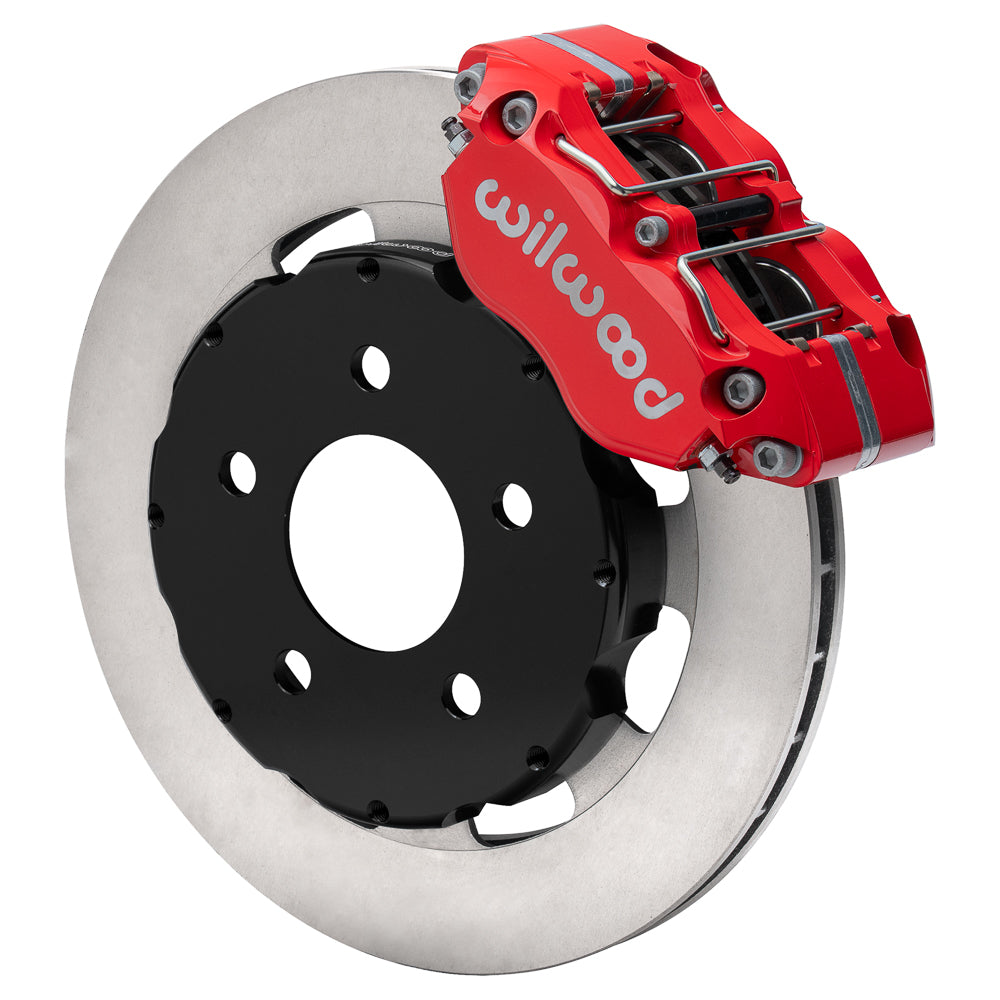

Red four-piston calipers are paired with plain-face, vented 11.75-inch iron rotors in this Wilwood Pro-Street conversion. The separate hats suit the Mustang's specified five-lug, stock-offset disc-spindle arrangement. This selected kit has plain friction faces; a drilled rotor in an alternate gallery view should not be taken as the supplied rotor specification. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10016-R
• Type: Dynapro Radial Front Pro-Street Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Red Powder Coat.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel bolt circles: 5 x 4.50 inches.

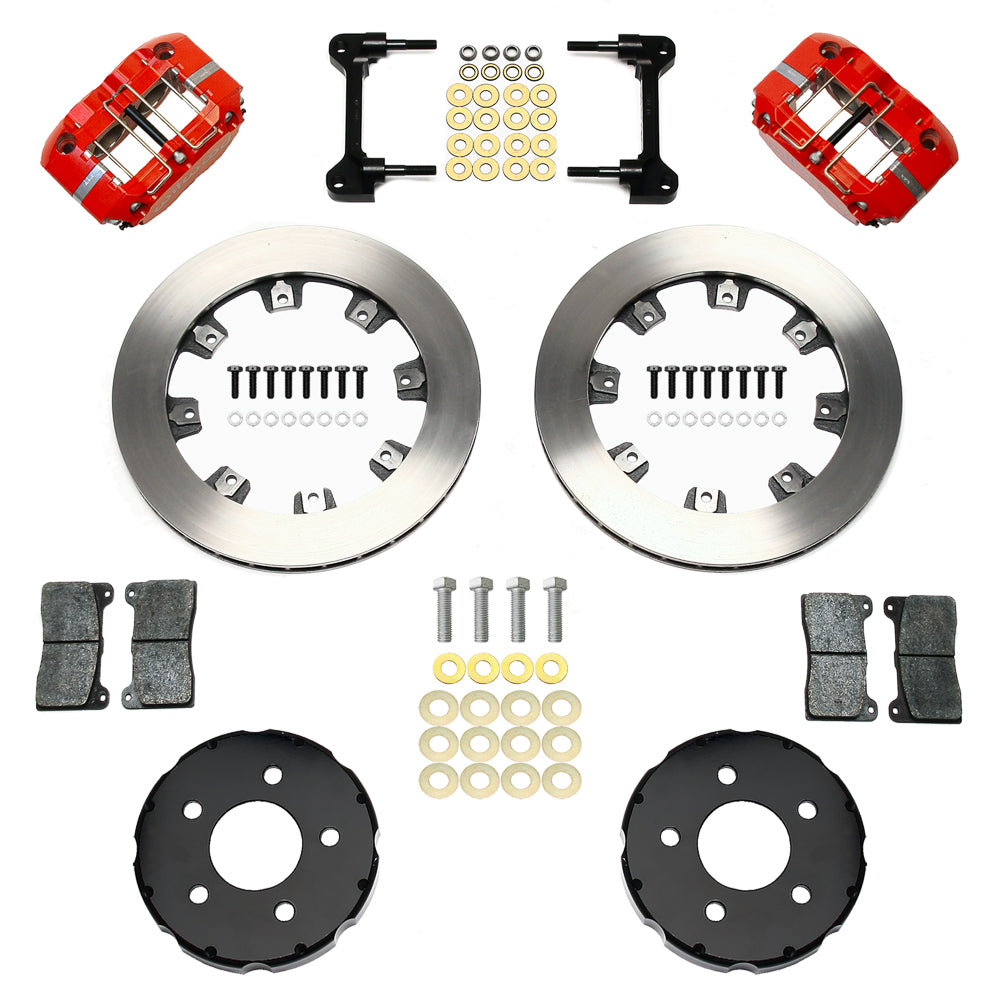

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: Pro Street / Drag Race. For Drag applications weighing in excess of 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Confirm the 1994–2004 Mustang hub and spindle dimensions before installation, then compare the intended wheel with the clearance template. A nominal wheel diameter does not account for spoke depth. Arrange hydraulic lines and fittings separately and check routing at both steering locks. Evaluate the master cylinder already fitted to the vehicle for displacement and pedal travel instead of assuming every conversion requires a new cylinder.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
