Wilwood Front Red Dynapro Brake Conversion for Ford Mustang (1994–2004), 11.75-Inch Drilled/Slotted

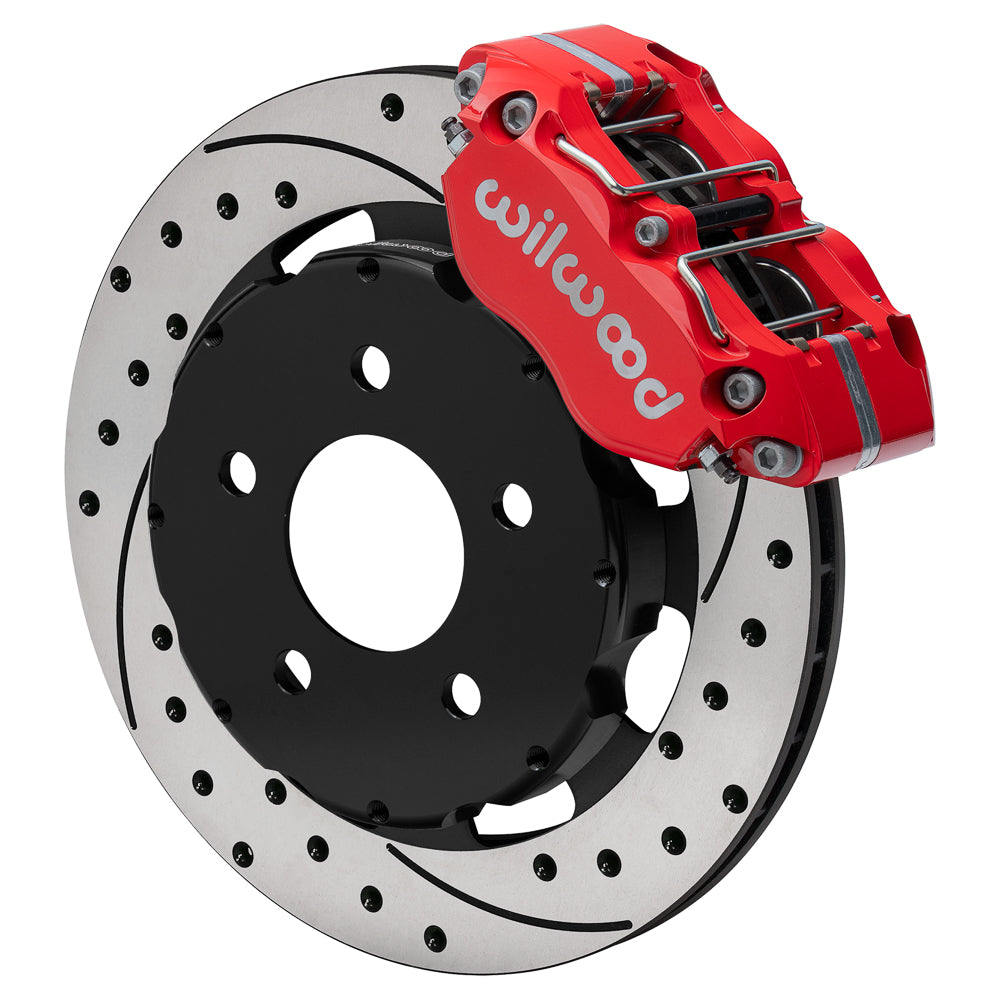

This red-caliper Wilwood Mustang kit uses vented iron rotors with the SRP drilled/slotted surface. Its four-piston Narrow Dynapro units are radially mounted, and the 11.75-inch rotor diameter is paired with a 0.81-inch width. The assembly keeps the specified stock-offset hub layout while replacing the service-brake friction components. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10016-DR
• Type: Dynapro Radial Front Pro-Street Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Red Powder Coat.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel bolt circles: 5 x 4.50 inches.

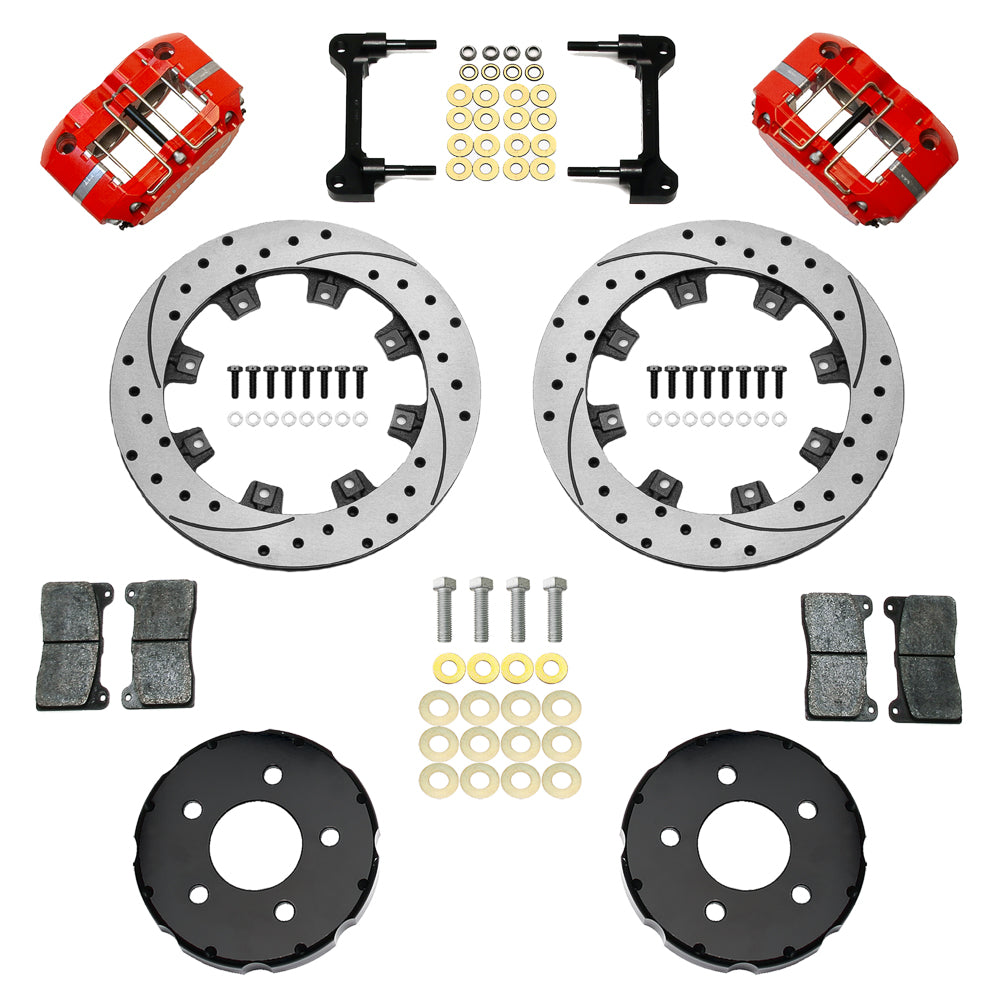

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: Pro Street / Drag Race. For Drag applications weighing in excess of 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Check the car's 1994–2004 disc-spindle arrangement and five-lug hubs against the installation drawing. Any altered hub, knuckle or wheel must be evaluated on its actual dimensions. Hydraulic flex lines are not part of the selected kit; confirm the correct end fittings and length. The finished system also needs adequate pedal travel, balanced front/rear pressure and clearance throughout steering movement.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
