Wilwood Front 11.75-Inch SRP Brake Kit, Black, for Ford Mustang (1994–2004), Dynapro Pro-Street

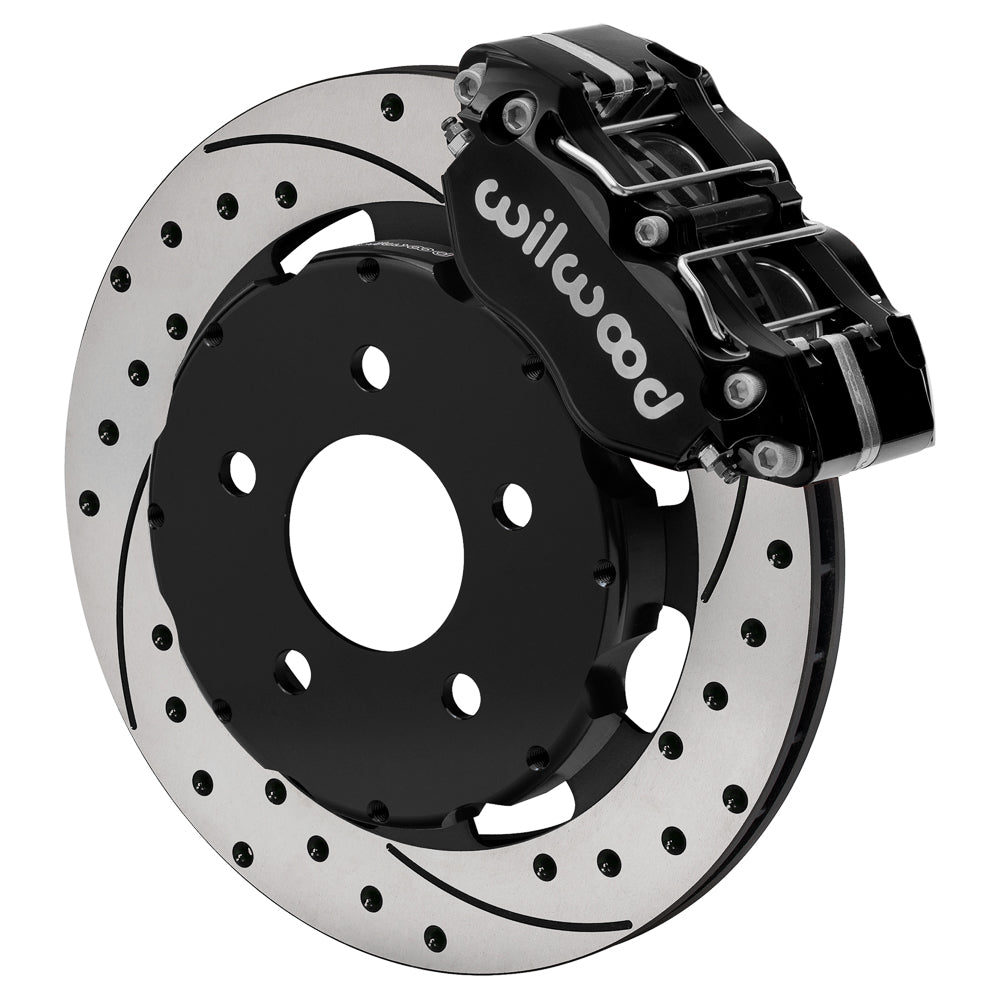

Drilled/slotted 11.75-inch rotors and black Narrow Dynapro calipers form this Wilwood front Pro-Street package. The vented iron friction rings measure 0.81 inches wide and attach to separate hats, distinguishing the assembly from the solid-rotor drag kit. It is intended for the specified Mustang disc-spindle arrangement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10016-D
• Type: Dynapro Radial Front Pro-Street Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Black Powder Coat.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel bolt circles: 5 x 4.50 inches.

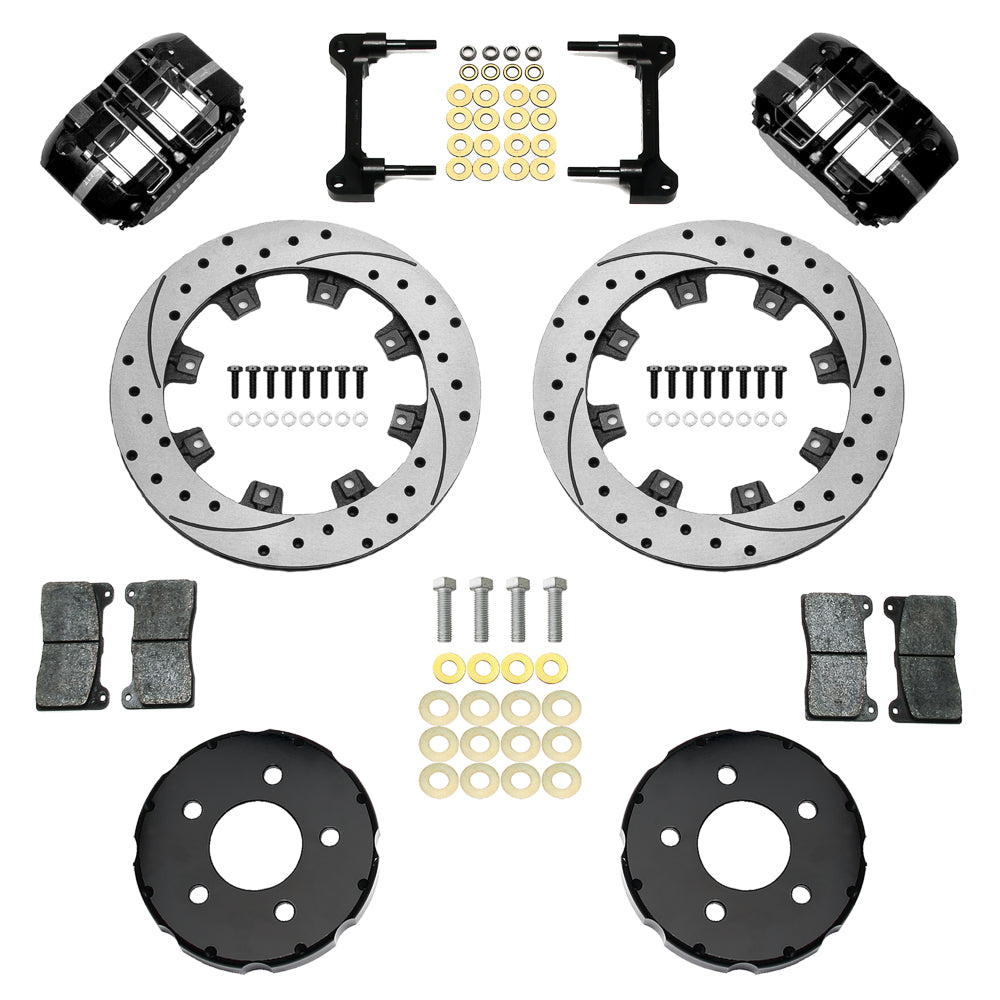

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: Pro Street / Drag Race. For Drag applications weighing in excess of 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Compare the original hub offset and five-lug spindle geometry with DS576 before assembly. Existing modifications can change caliper location or wheel clearance on a 1994–2004 Mustang. Suitable hydraulic hoses must be selected separately and routed through the suspension's full range. Verify that wheel spokes clear the caliper as well as the rotor radius, then follow the bleeding and bedding procedure for the supplied pads.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
