Wilwood Front Dynapro Drag Brake Kit for Ford Mustang (1994–2004), 11.75-Inch Drilled Steel Rotors

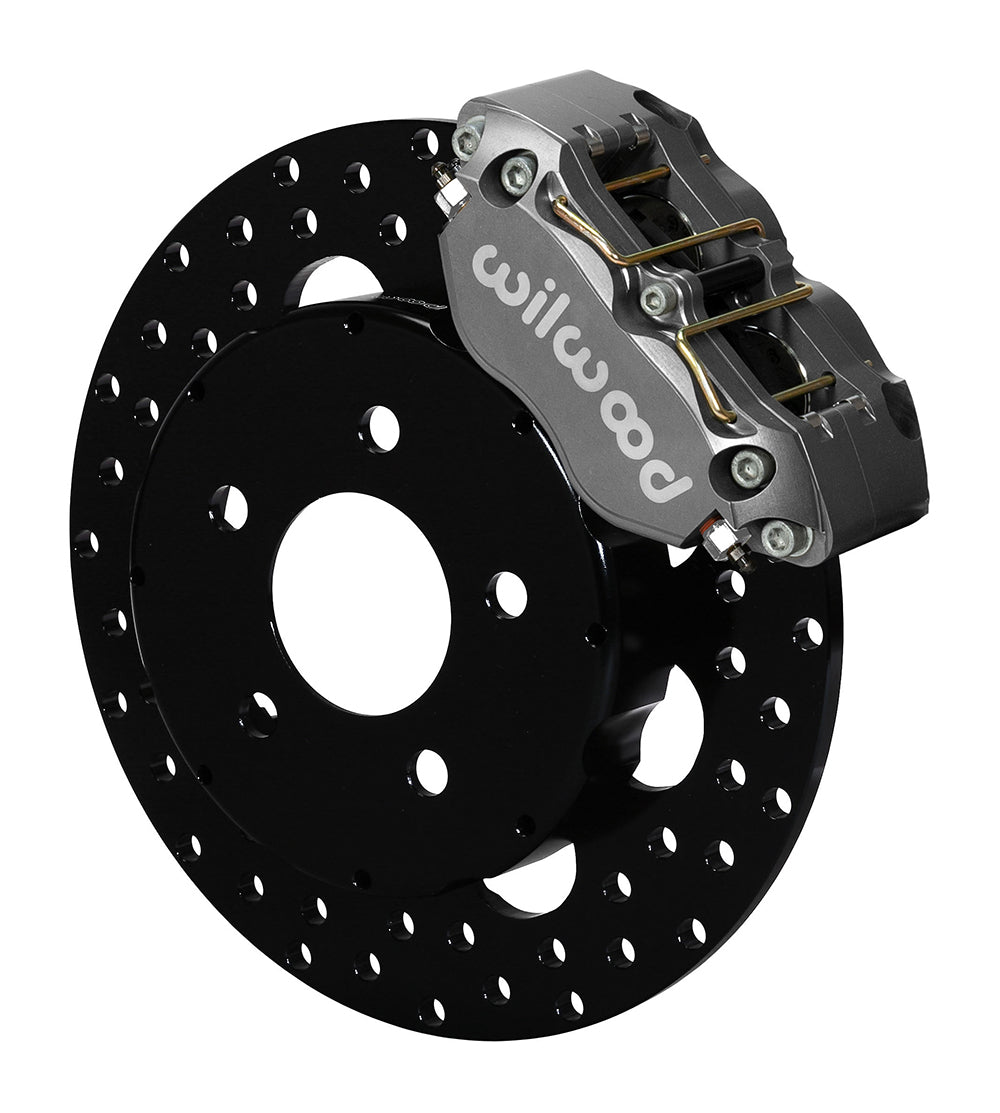

The solid steel rotors in this Wilwood Mustang front kit are drilled to reduce rotating weight for drag-racing use. Four-piston Narrow Dynapro calipers mount radially over an 11.75-inch friction ring. Unlike the vented Pro-Street package, this kit uses 0.35-inch unvented rotors and must be selected for the intended competition duty. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10015-D
• Type: Dynapro Radial Front Drag Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Type III Anodize.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.35-inch width; Drilled, Steel, Black Electro Coat. Solid, unvented.
• Wheel bolt circles: 5 x 4.50 inches.

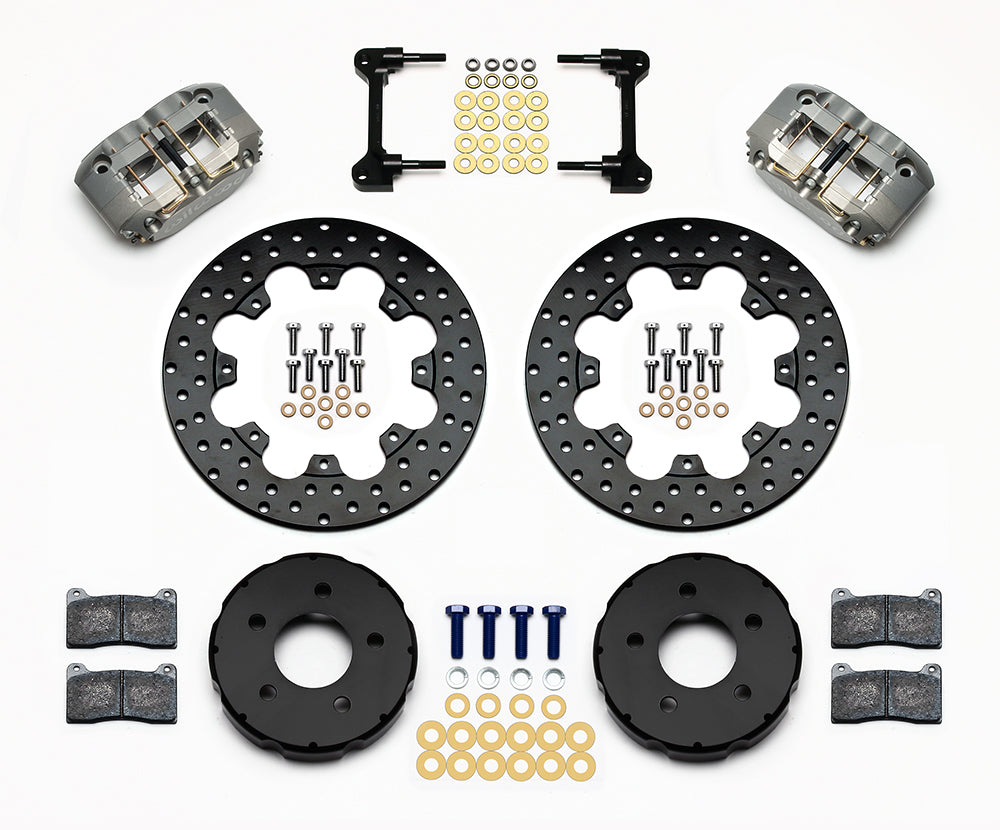

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

DS575 identifies the 1994–2004 Mustang five-lug, stock-offset disc-spindle arrangement. Check the exact spindle and hub configuration on Base, GT, Mach 1 or Cobra applications, including modified cars. Hydraulic lines are not supplied; the front-line reference is an installation selection, not an included part. Confirm wheel clearance using the drawing and match master-cylinder capacity and bias to the completed brake system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
