Wilwood Rear Polished Superlite Parking Brake Kit, 14-Inch Drilled/Slotted, Lincoln Town Car (1990)

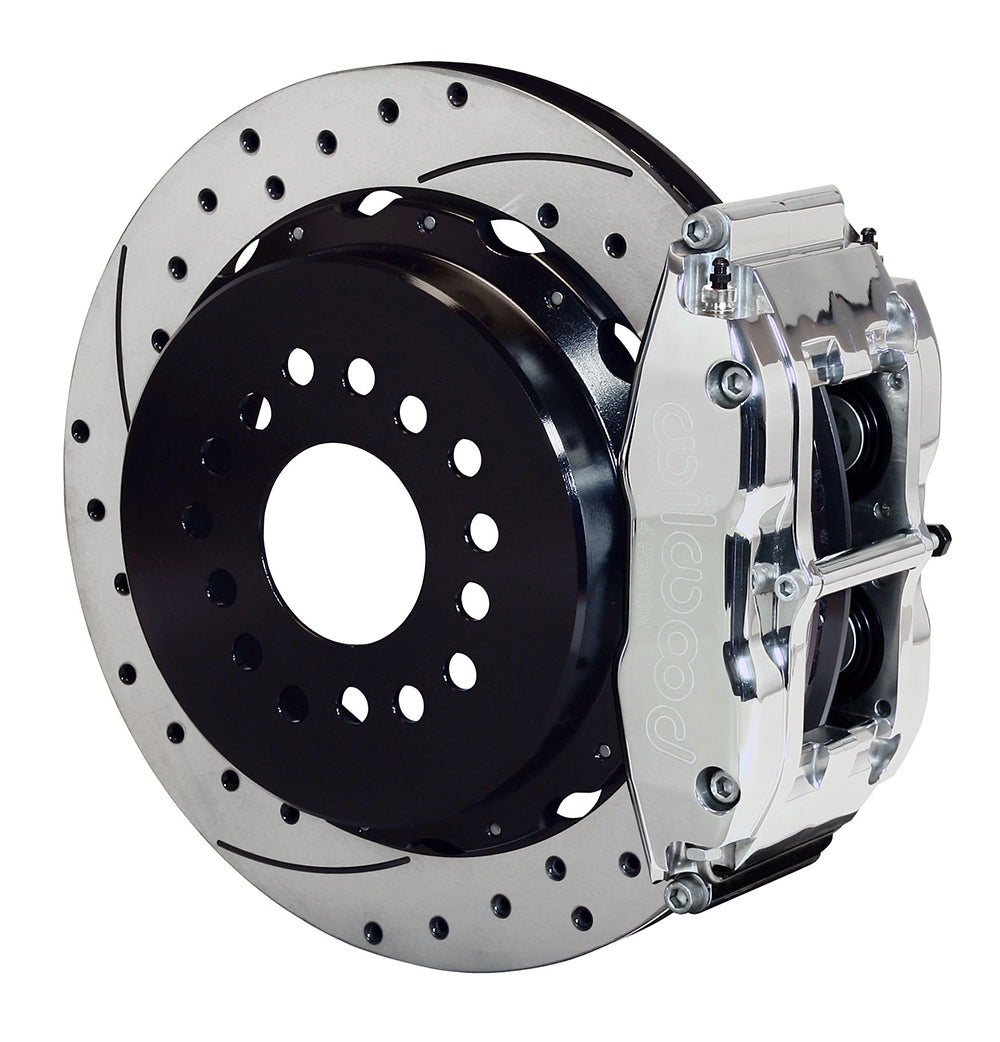

Polished four-piston calipers give this Wilwood rear parking brake conversion its selected finish. The braking assembly uses 14.00 × 1.10-inch drilled/slotted rotors with internal drum shoes, mounted around the new-style Big Ford housing end. The 2.50-inch axle offset controls rotor alignment with the radial caliper brackets. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10012-DP
• Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
• Calipers: Forged Narrow Superlite 4R; 4 pistons; Polish.
• Bores: 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
• Rear housing end: Big Ford New Style.
• Axle flange offset: 2.50 inches.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75; 5 x 5.00 inches.

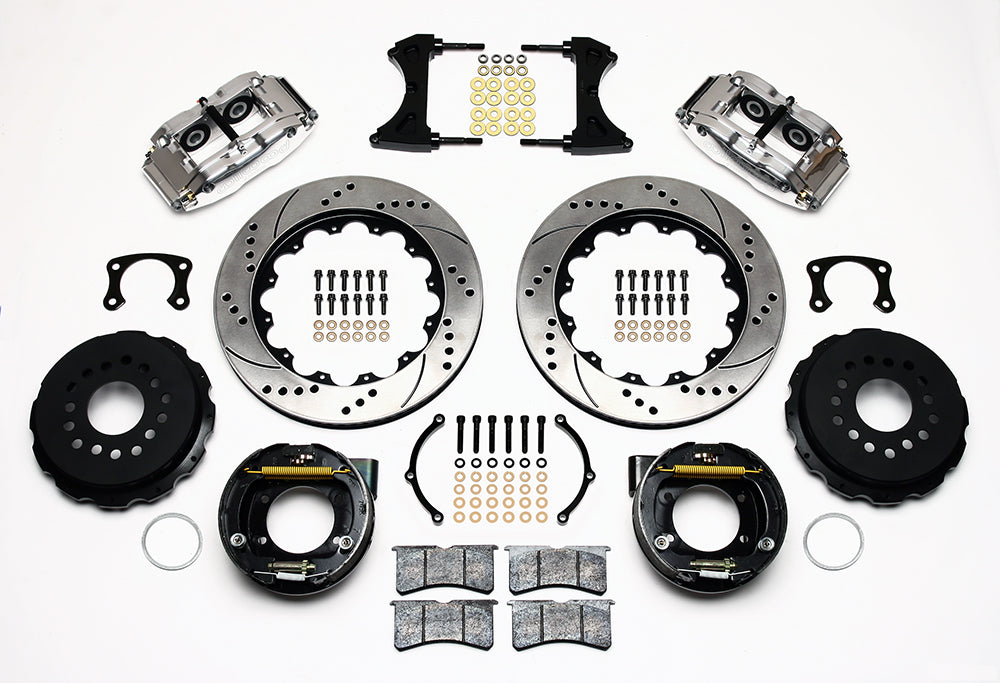

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats. Internal parking-shoe assemblies included.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Parking cables/connections separate.
• Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Before choosing this arrangement for a Town Car, identify the rear housing end and measure its offset directly. An axle swap can change compatibility even when the vehicle year stays the same. Allow space for both the internal parking-brake cable path and hydraulic flex line. Neither cable hardware nor hydraulic plumbing should be assumed present from the kit photographs; follow the installation parts list and wheel template.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
