Product details

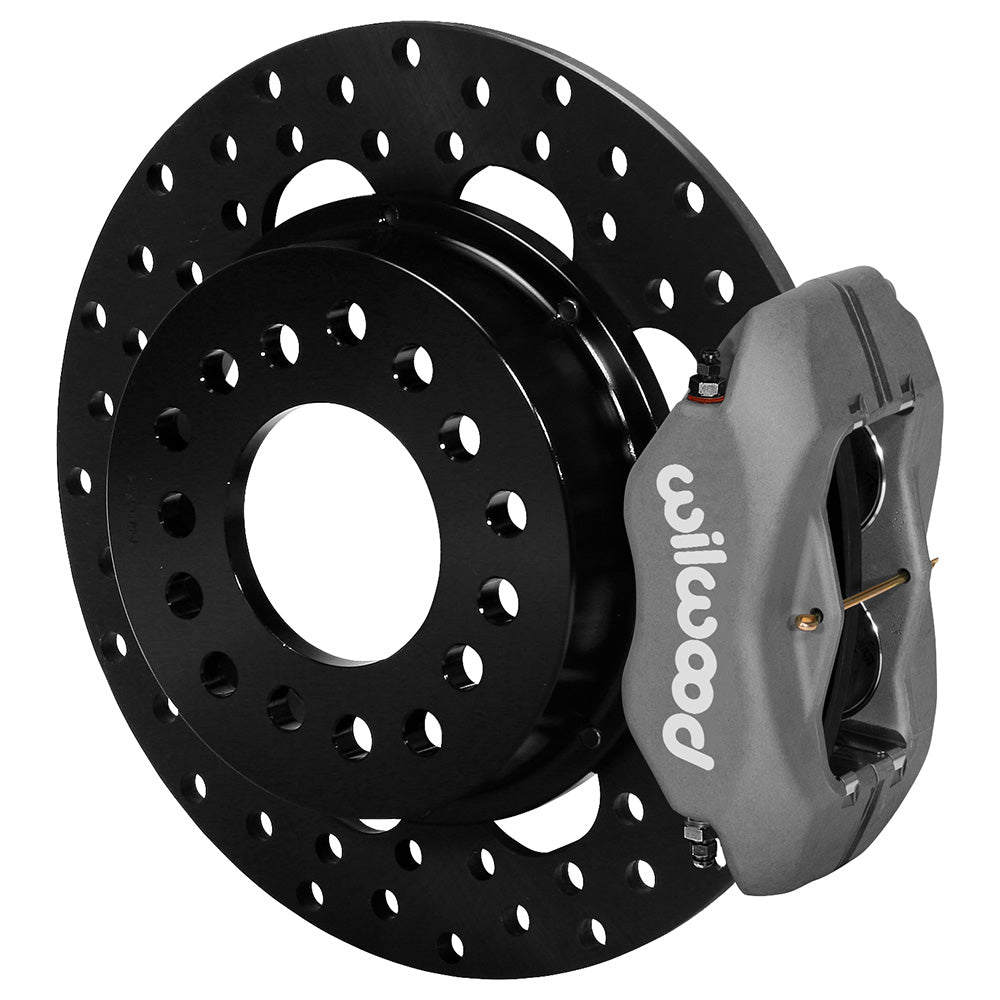

Designed around the symmetrical housing end used in M-W/Lamb rear-axle arrangements, this Wilwood drag brake kit uses a 2.81-inch offset. Four-piston forged calipers clamp drilled steel rotors attached to aluminum hats. This is a housing-specific competition conversion; there is no universal vehicle-model claim. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-0265-BD
- Type: Forged Dynalite Rear Drag Brake Kit
- Calipers: Forged Dynalite Internal; 4 pistons; Type III Anodize.
- Bores: 1.75, 1.75 inches. Pads: BP-10.
- Rotors: 11.44-inch diameter × 0.35-inch width; Drilled, Steel, Black Oxide. Solid, unvented.
- Rear housing end: Symmetrical End.
- Axle flange offset: 2.81 inches.
- Wheel bolt circles: 5 X 4.50; 5 X 4.75; 5 X 5.00 inches.

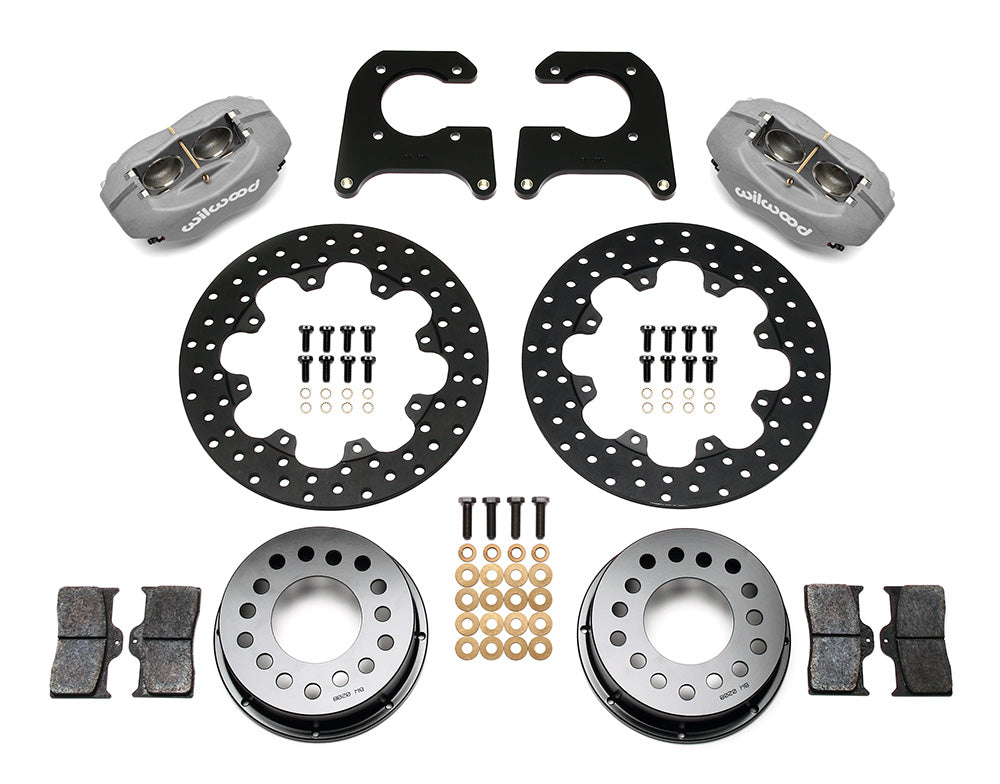

- Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
- Application-use guidance: For Drag applications up to 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.
Fitment & Compatibility
Match the symmetrical flange outline, mounting centers and bearing register to the installation drawing. The axle flange and hat must share an appropriate wheel-stud pattern and registration. Supply hydraulic hoses and fittings appropriate to the chassis, then verify caliper centering and wheel clearance before use. A car with a different housing end cannot be selected by axle brand alone.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
