Wilwood Rear Dynalite Drag Brake Kit, Big Ford 2.36-Inch Offset, Lincoln Town Car (1990)

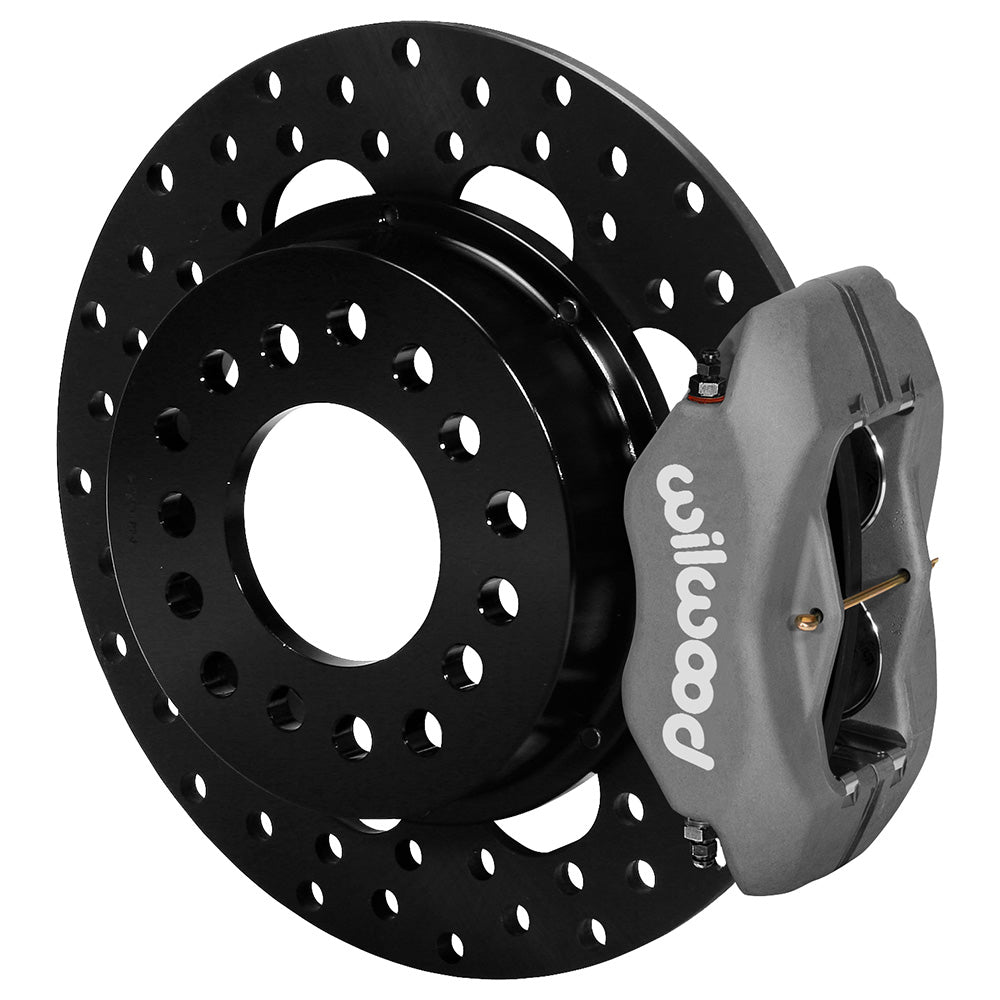

This Wilwood Forged Dynalite rear drag brake kit combines four-piston calipers with drilled, solid steel rotors for a race-prepared Big Ford rear housing. Its 2.36-inch axle offset is the critical selection dimension; the Lincoln Town Car year alone cannot establish compatibility with a replaced or modified rear axle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-0261-BD
• Type: Forged Dynalite Rear Drag Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons; Type III Anodize.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.44-inch diameter × 0.35-inch width; Drilled, Steel, Black Oxide. Solid, unvented.
• Rear housing end: Big Ford.
• Axle flange offset: 2.36 inches.
• Wheel bolt circles: 5 X 4.50; 5 X 4.75; 5 X 5.00 inches.

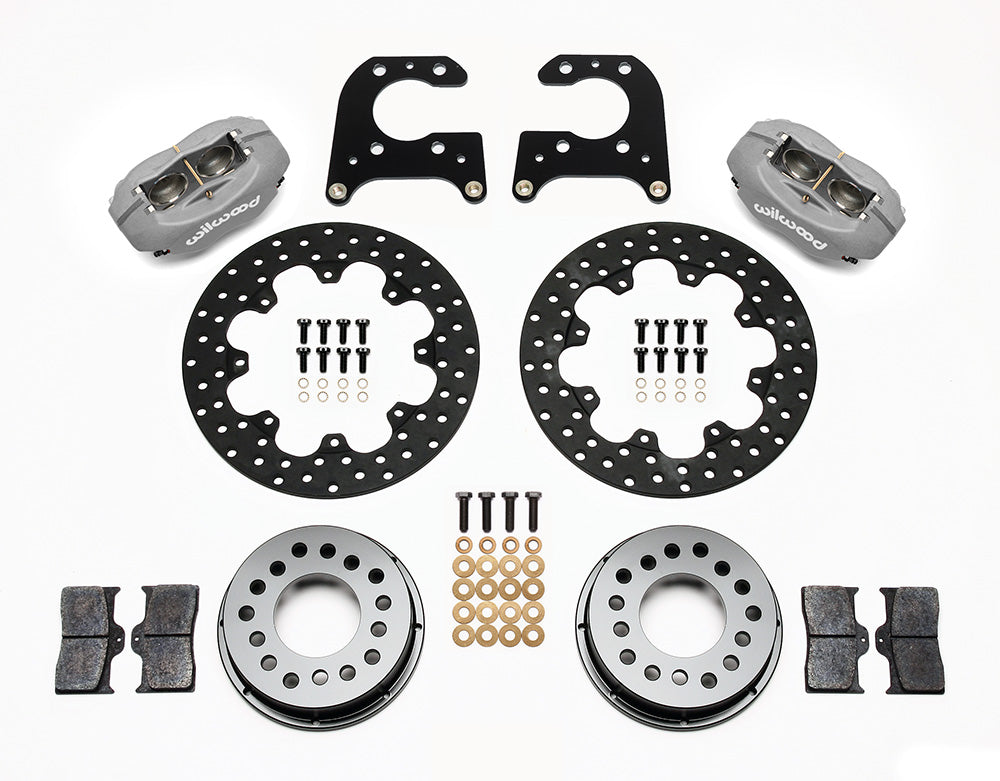

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: For Drag applications up to 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Check the housing-end bolt pattern, bearing register, stud diameter and measured axle offset before selecting this kit for a 1990 Town Car. The 11.44-inch rotors use aluminum mounting hats. Hydraulic lines and fittings are not included; the brake balance and master-cylinder displacement must suit the entire four-wheel system. Compare the wheel-clearance drawing with the actual wheel barrel and spoke profile.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
