Product details

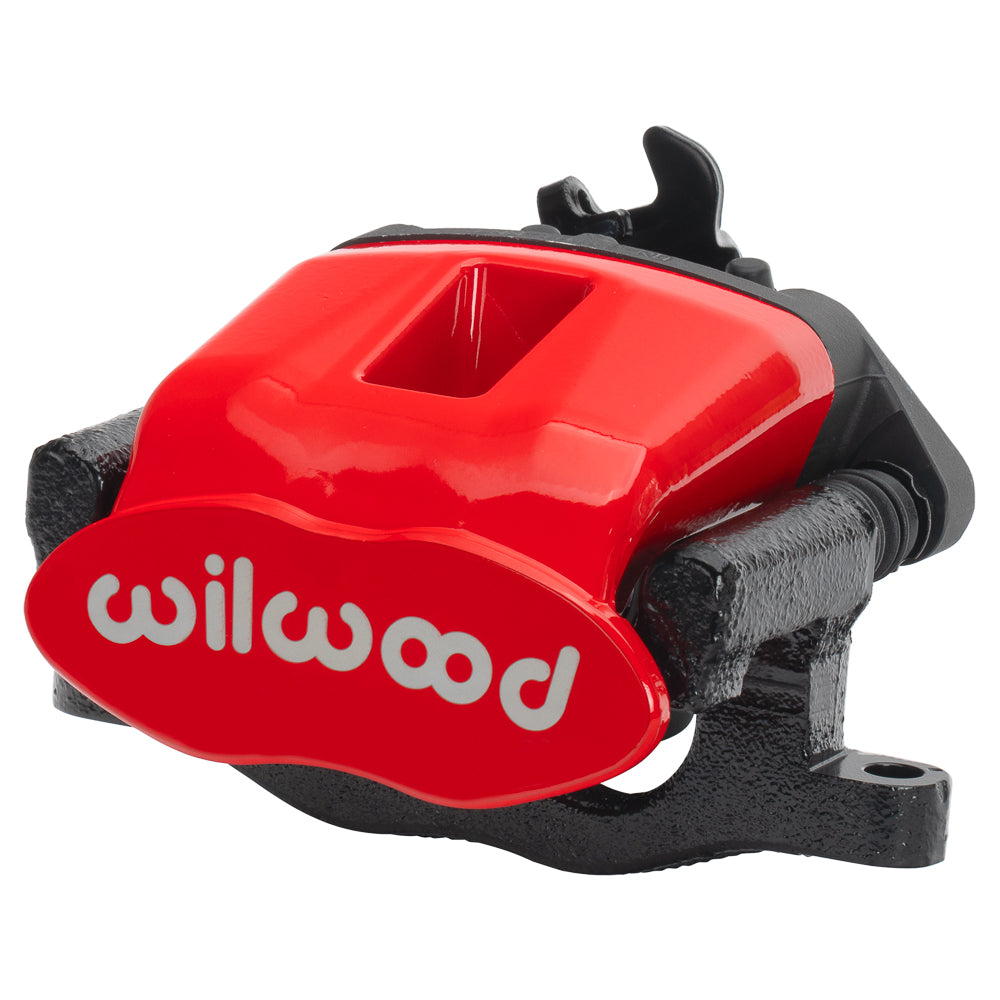

Red finish distinguishes this standard left-rear CPB combination caliper. Its hydraulic piston applies the service brake while the separate cable mechanism locks the parking pads. A 34 mm bore and nominal 0.81-inch rotor opening identify the selected body, which must be located on a suitable fixed radial bracket. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, from calipers and brake rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications; selection depends on the complete brake system.
Technical Details
- Manufacturer part number: 120-9809-RD
- Caliper type: Combination Parking Brake
- Construction: Aluminium / Steel
- Finish: Red Powder Coat
- Piston bores: 1.34 inches
- Piston type: Steel
- Piston count: 1
- Published piston area: 1.41 square inches
- Dust boots: Yes
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.75–0.81 inches
- Rotor diameter limits: 11.00–13.00 inches
- Mounting style: Radial
- Mounting side: Left Hand
- Mounting centers: 5.98 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.08 inch
- Hydraulic inlet thread: M10 x 1.00
- Required pad shape: D340
- Published pad area: 4 square inches
- Published pad volume: 1.5 cubic inches
- Manufacturer-listed component weight: 6.1 lb
Fitment & Compatibility
Check the complete rear conversion drawing for bracket height, rotor offset and pad sweep. Confirm the selected rotor thickness and diameter limits and inspect wheel-spoke clearance around both caliper and cable lever. The parking cable and M10 x 1.00 fitting must suit the installation, and the hydraulic sizing should remain appropriate for the front brakes.
For help identifying the correct brake component, provide the caliper markings and installation dimensions. PMB Performance has over 20 years of experience with parts and brake-system details.
