Product details

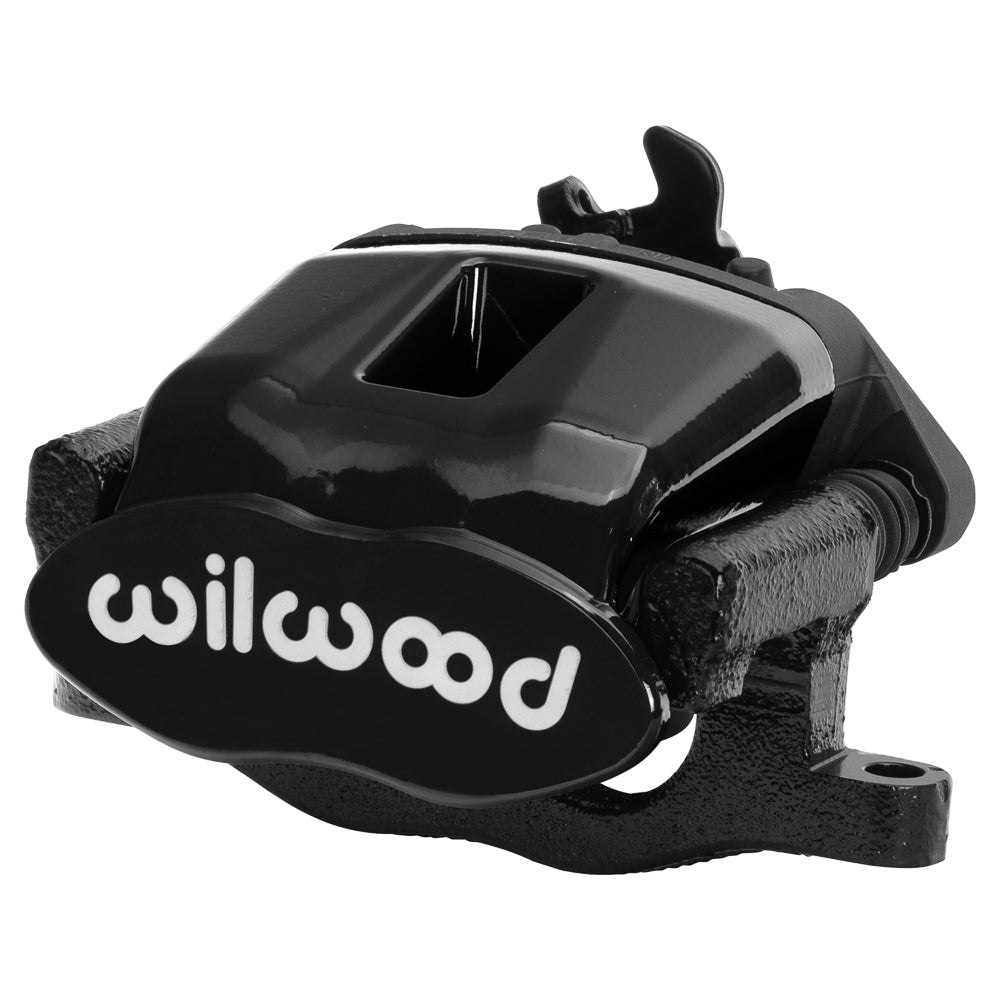

The standard black left-rear CPB is a hydra-mechanical caliper with one 34 mm service piston and an integrated parking-cable actuator. Its floating body is intended to remain aligned over the rotor as the pads operate. The nominal 0.81-inch opening and 5.98-inch radial interface define this caliper version. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-9809-BK
- Caliper type: Combination Parking Brake
- Construction: Aluminium / Steel
- Finish: Black Powder Coat
- Piston bores: 1.34 inches
- Piston type: Steel
- Piston count: 1
- Published piston area: 1.41 square inches
- Dust boots: Yes
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.75–0.81 inches
- Rotor diameter limits: 11.00–13.00 inches
- Mounting style: Radial
- Mounting side: Left Hand
- Mounting centers: 5.98 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.08 inch
- Hydraulic inlet thread: M10 x 1.00
- Required pad shape: D340
- Published pad area: 4 square inches
- Published pad volume: 1.5 cubic inches
- Manufacturer-listed component weight: 6.1 lb
Fitment & Compatibility
Match the rear bracket, rotor centerline and pad footprint to the exact mounting drawing. The rotor thickness must lie within 0.75–0.81 inch and its diameter within 11.00–13.00 inches. Check cable housing and end fit, lever movement and the M10 x 1.00 inlet, along with correct hydraulic balance for the complete brake package.
For help identifying the correct brake component, provide the caliper markings and installation dimensions. PMB Performance has over 20 years of experience with parts and brake-system details.
