Product details

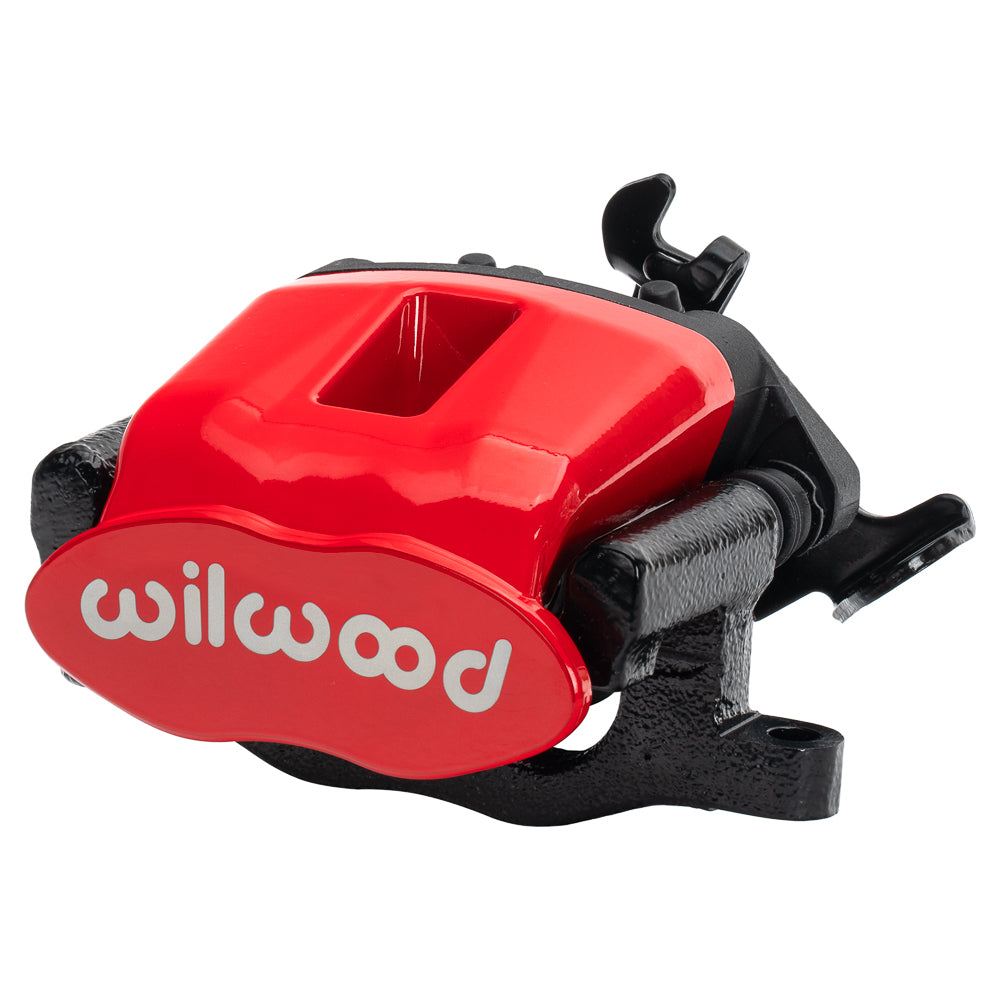

This red right-rear CPB is the standard 34 mm combination caliper for a nominal 0.81-inch-wide rotor. Hydraulic service braking and cable parking actuation share a floating caliper assembly. The bracket and complete rotor package determine the conversion application, while the caliper itself is supplied as an individual component. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, from calipers and brake rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications; selection depends on the complete brake system.
Technical Details
- Manufacturer part number: 120-9808-RD
- Caliper type: Combination Parking Brake
- Construction: Aluminium / Steel
- Finish: Red Powder Coat
- Piston bores: 1.34 inches
- Piston type: Steel
- Piston count: 1
- Published piston area: 1.41 square inches
- Dust boots: Yes
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.75–0.81 inches
- Rotor diameter limits: 11.00–13.00 inches
- Mounting style: Radial
- Mounting side: Right Hand
- Mounting centers: 5.98 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.08 inch
- Hydraulic inlet thread: M10 x 1.00
- Required pad shape: D340
- Published pad area: 4 square inches
- Published pad volume: 1.5 cubic inches
- Manufacturer-listed component weight: 6.1 lb
Fitment & Compatibility
Check the 5.98-inch radial interface and correct rotor centerline on the receiving axle bracket. The parking cable must have compatible end fittings, travel and return clearance. Verify a rotor within the selected width and diameter limits and confirm the hydraulic connection and balance with the front brake system.
