Product details

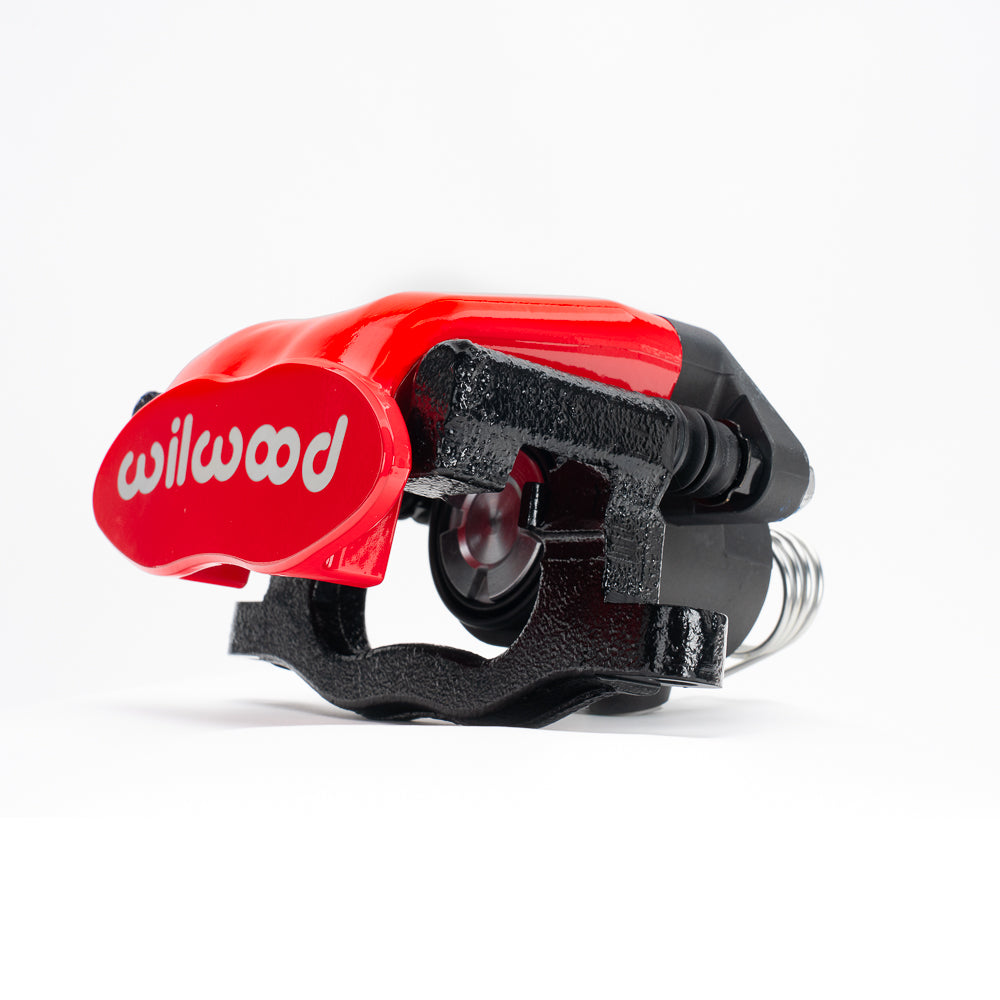

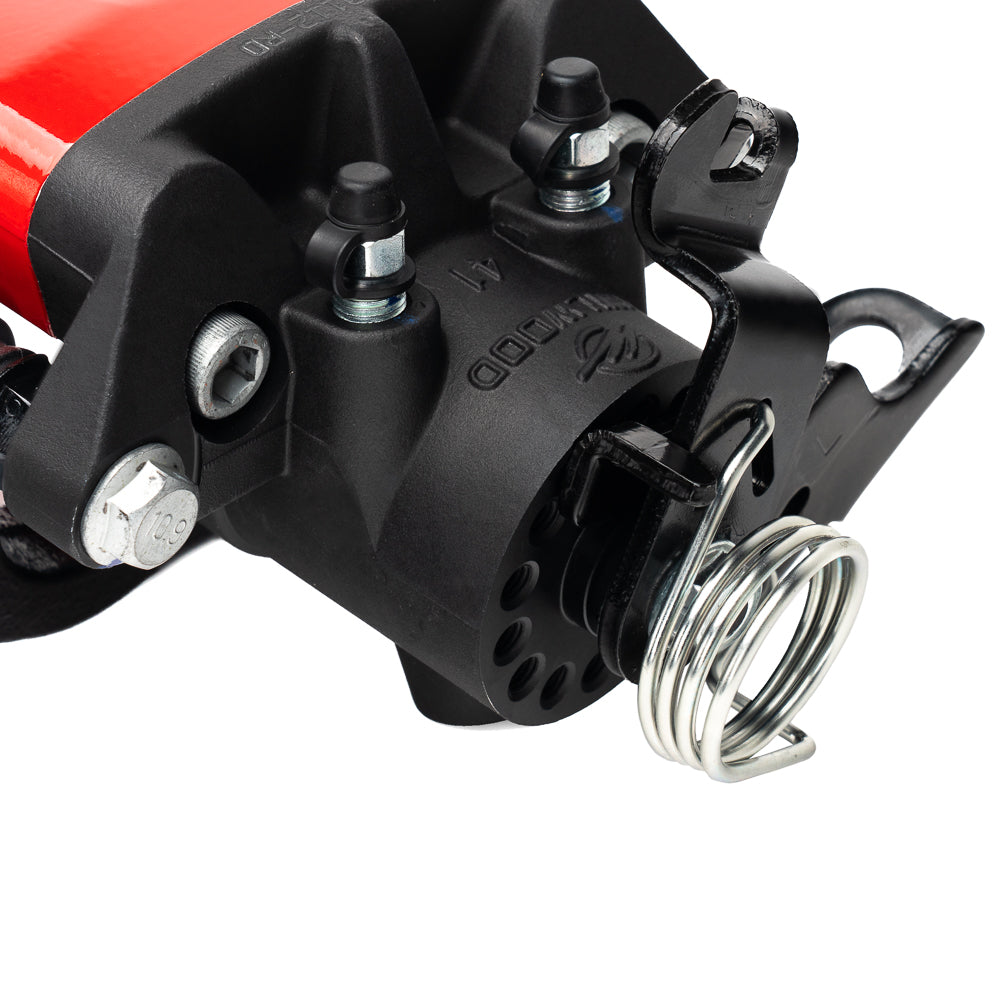

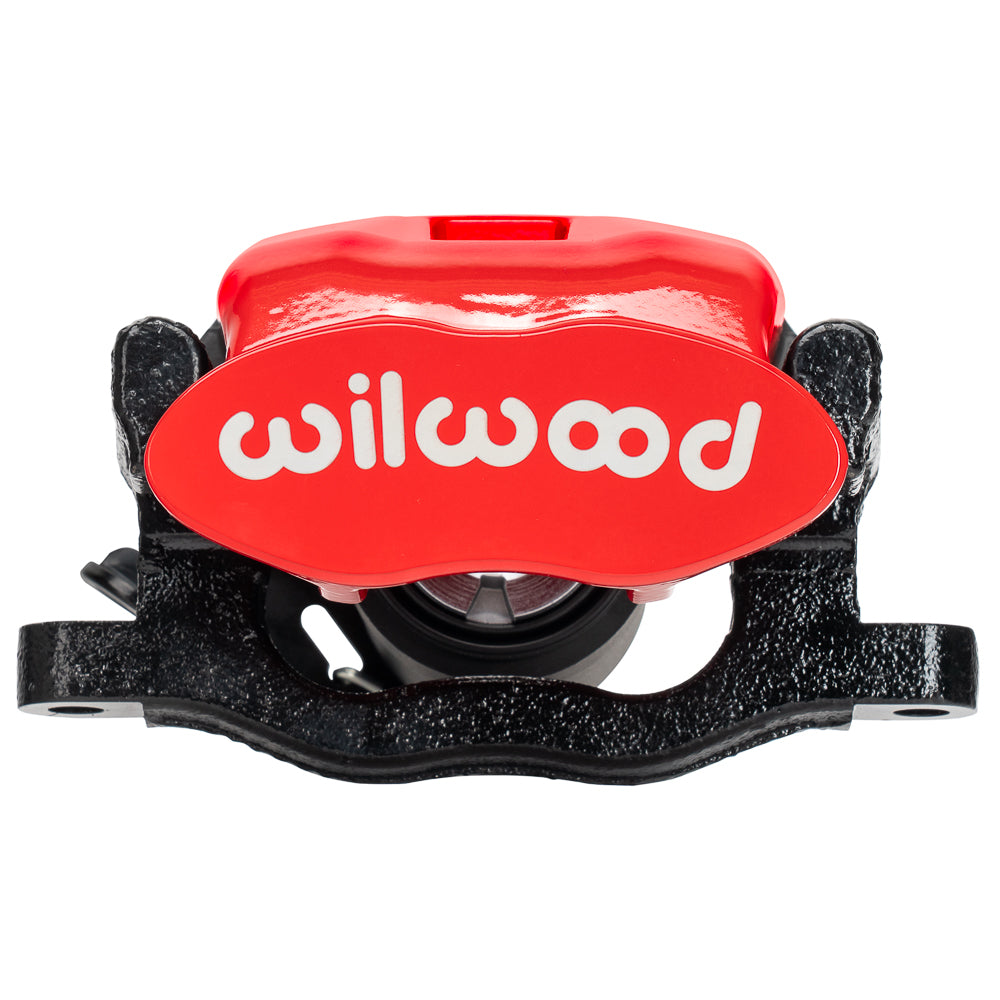

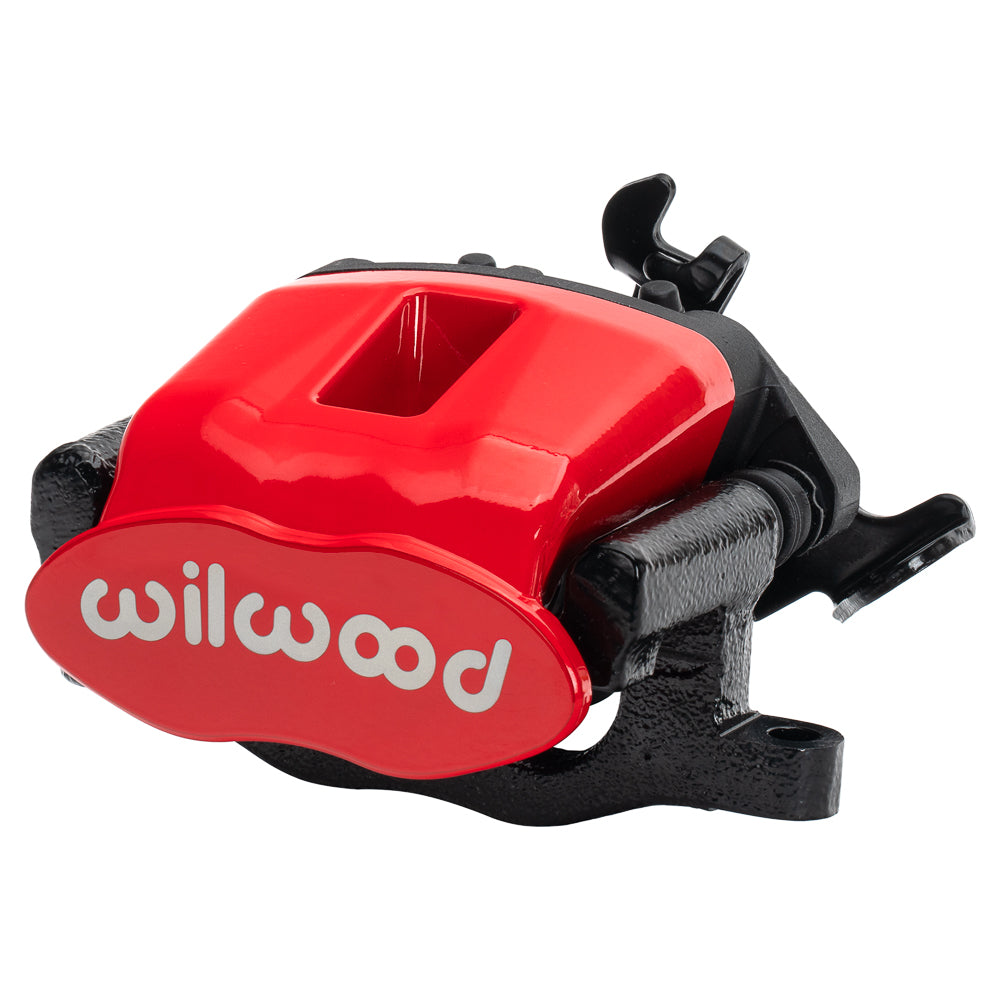

A red finish and the manufacturer’s Position 1 designation identify this right-rear CPB variant. A single 34 mm piston supplies hydraulic service braking, and an integrated cable mechanism supplies the parking lock. It belongs to the nominal 0.81-inch rotor-width combination-caliper range. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized uses, including calipers, brake rotors, master cylinders, valves, fittings and brake lines; each component must match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 120-9808-1-RD
- Caliper type: Combination Parking Brake
- Construction: Aluminium / Steel
- Finish: Red Powder Coat
- Piston bores: 1.34 inches
- Piston type: Steel
- Piston count: 1
- Published piston area: 1.41 square inches
- Dust boots: Yes
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.75–0.81 inches
- Rotor diameter limits: 11.00–13.00 inches
- Mounting style: Radial
- Mounting side: Right Hand
- Mounting centers: 5.98 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.08 inch
- Hydraulic inlet thread: M10 x 1.00
- Required pad shape: D340
- Published pad area: 4 square inches
- Published pad volume: 1.5 cubic inches
- Manufacturer-listed component weight: 6.1 lb
Fitment & Compatibility
Use the exact caliper reference or rear kit parts list to confirm the required Position 1 arrangement. Check cable travel and end fittings alongside the radial bracket and rotor centerline. The stated width and diameter envelope must be respected, but a shared envelope does not prove interchangeability with the standard CPB body.
