Product details

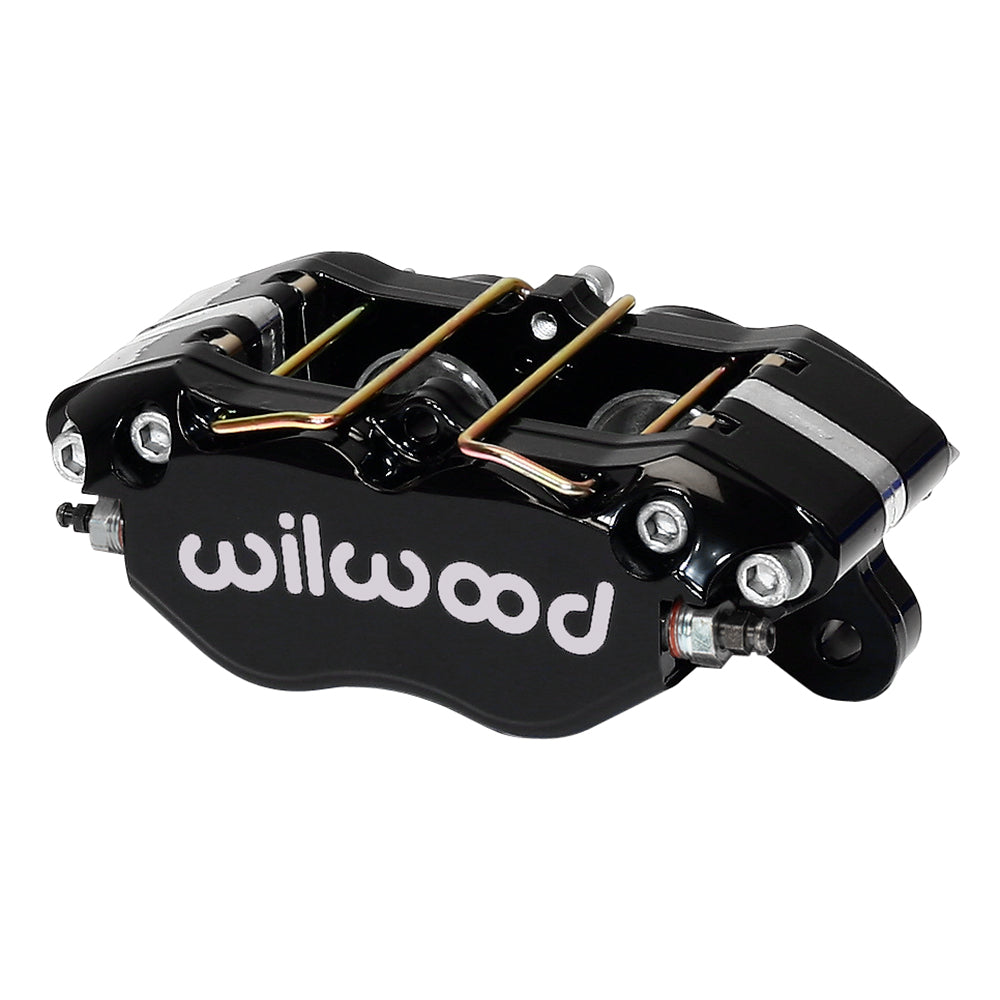

The smallest-bore DynaPro in this lug-mount group uses four 1.00-inch stainless pistons. Its black forged body is configured for a nominal 0.81-inch-wide rotor, with a published piston area of 1.58 square inches. This is a specific hydraulic choice rather than a universal alternative to a larger-piston DynaPro. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-9706
- Caliper type: Dynapro Lug Mount
- Construction: Forged Aluminium
- Finish: Black Powder Coat
- Piston bores: 1.00 / 1.00 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 1.58 square inches
- Dust boots: No
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.75–0.83 inches
- Rotor diameter limits: 10.00–13.06 inches
- Mounting style: Lug
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 5.25 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.10 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7812
- Published pad area: 6.36 square inches
- Published pad volume: 2.1 cubic inches
- Manufacturer-listed component weight: 3.8 lb
Fitment & Compatibility
Match the intended master-cylinder and axle balance requirements before using the smaller bores. Confirm the 5.25-inch lug spacing, 2.10-inch mount height and rotor offset. Check pad position on a rotor of suitable diameter and thickness, then inspect clearance to the wheel, inlet fitting and brake hose.
