Product details

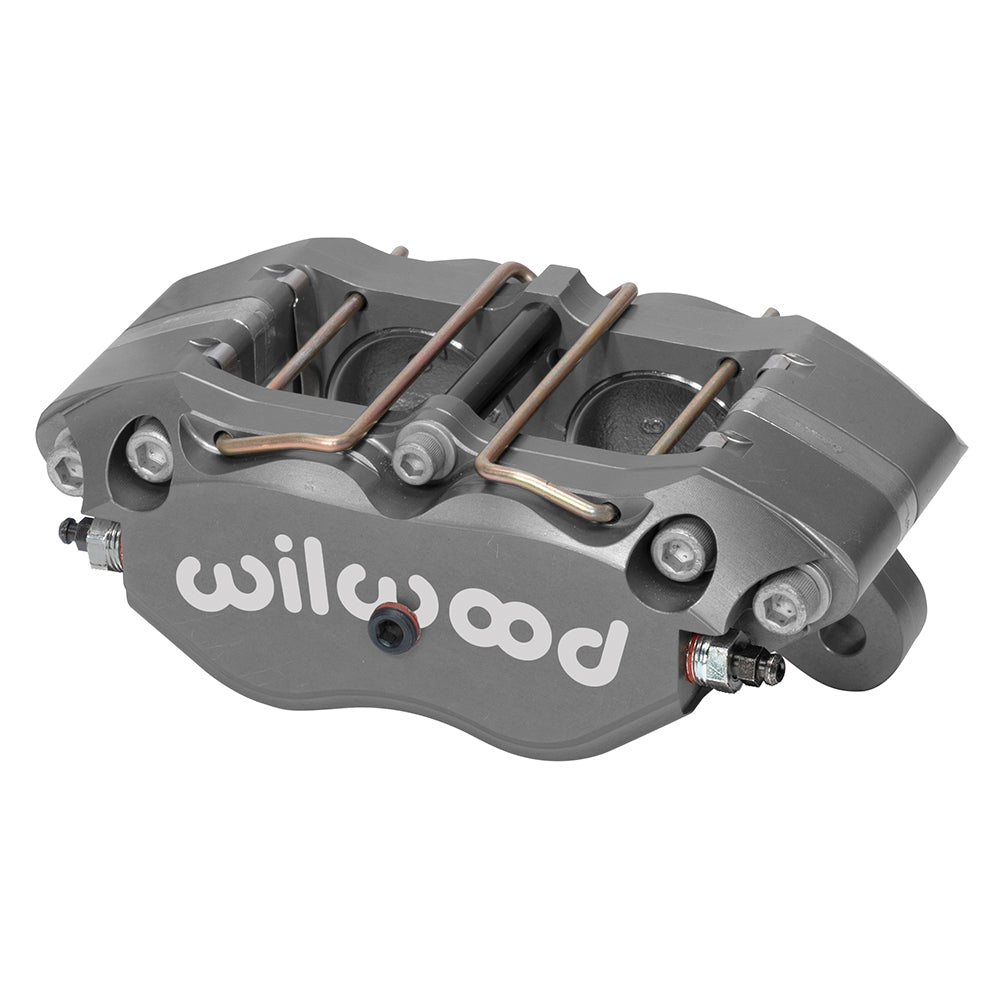

This anodized DynaPro is the side-inlet, small-bore option for a nominal 0.38-inch rotor width. It uses four 1.38-inch stainless pistons in a forged body, with the center bridge bolt included on the SI configuration. The side hydraulic connection should be selected deliberately to match the intended brake-line route. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized uses, including calipers, brake rotors, master cylinders, valves, fittings and brake lines; each component must match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 120-9705-SI
- Caliper type: Dynapro Lug Mount
- Construction: Forged Aluminium
- Finish: Type III Anodize
- Piston bores: 1.38 / 1.38 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 3.00 square inches
- Dust boots: No
- Nominal rotor width: 0.38 inch
- Rotor thickness limits: 0.25–0.38 inches
- Rotor diameter limits: 10.00–13.06 inches
- Mounting style: Lug
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 5.25 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.10 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7812
- Published pad area: 6.36 square inches
- Published pad volume: 2.1 cubic inches
- Manufacturer-listed component weight: 3.8 lb
Fitment & Compatibility
Check the full caliper outline and side fitting against the bracket and surrounding suspension. The 0.25–0.38-inch rotor thickness limits, pad sweep and lateral offset must all match. Verify 5.25-inch lug spacing and appropriate bleed orientation, and compare the piston area with the original brake package before installation.
