Product details

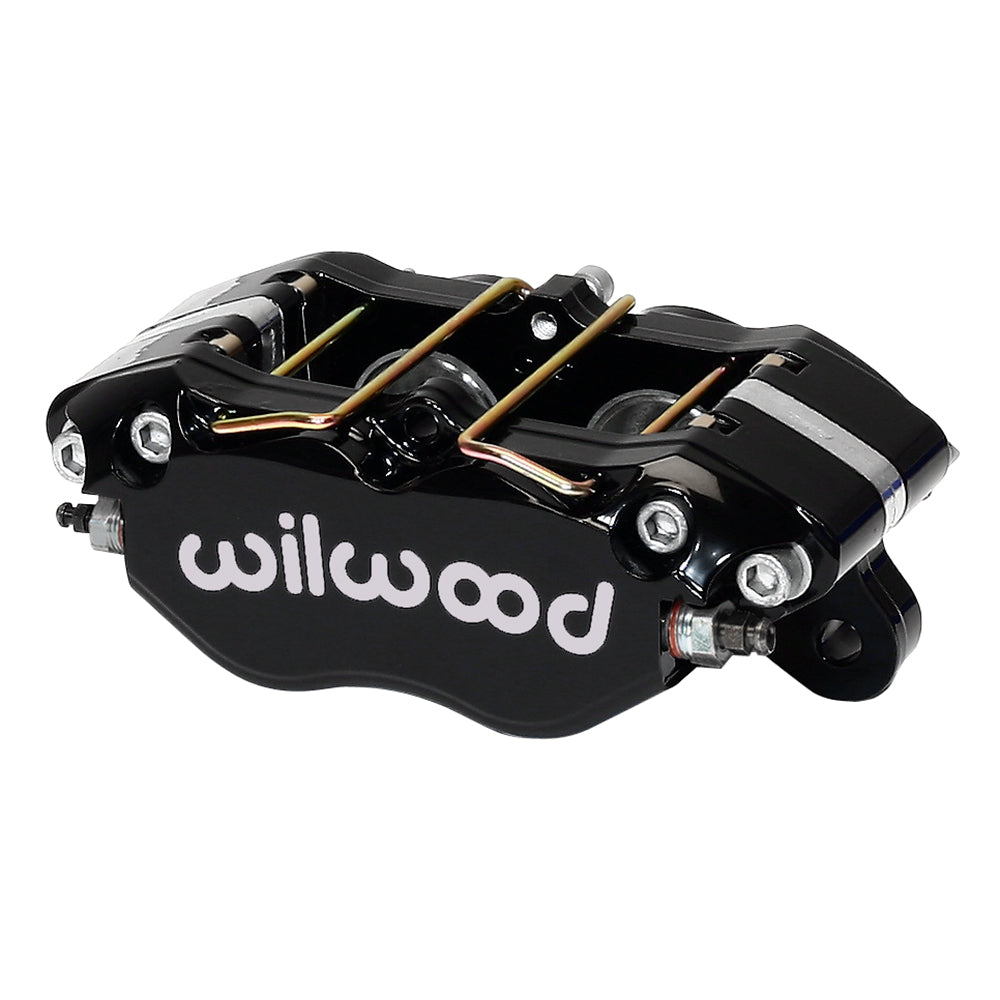

This black DynaPro is a four-piston lug-mount caliper with equal 1.75-inch stainless pistons. The rotor opening is the nominal 1.00-inch configuration rather than the wider or solid-rotor bodies in the same series. Internal hydraulic passages and replaceable wear plates are part of the forged DynaPro design. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized uses, including calipers, brake rotors, master cylinders, valves, fittings and brake lines; each component must match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 120-9692
- Caliper type: Dynapro Lug Mount
- Construction: Forged Aluminium
- Finish: Black Powder Coat
- Piston bores: 1.75 / 1.75 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 4.80 square inches
- Dust boots: No
- Nominal rotor width: 1.00 inch
- Rotor thickness limits: 0.94–1.04 inches
- Rotor diameter limits: 10.00–13.06 inches
- Mounting style: Lug
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 5.25 inches
- Mounting-hole size: 0.39 inch
- Mount height: 2.10 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7812
- Published pad area: 6.36 square inches
- Published pad volume: 2.1 cubic inches
- Manufacturer-listed component weight: 3.8 lb
Fitment & Compatibility
Match the bracket’s 5.25-inch centers and the rotor centerline to the exact drawing. The 0.94–1.04-inch width limits apply to this selected version. Verify pad support across the friction track, wheel clearance and a master-cylinder relationship that suits the published piston area before replacing another caliper.
PMB Performance brings over 20 years of brake and parts experience to selection questions. Send the existing caliper reference and brake-package details for help checking compatibility.
