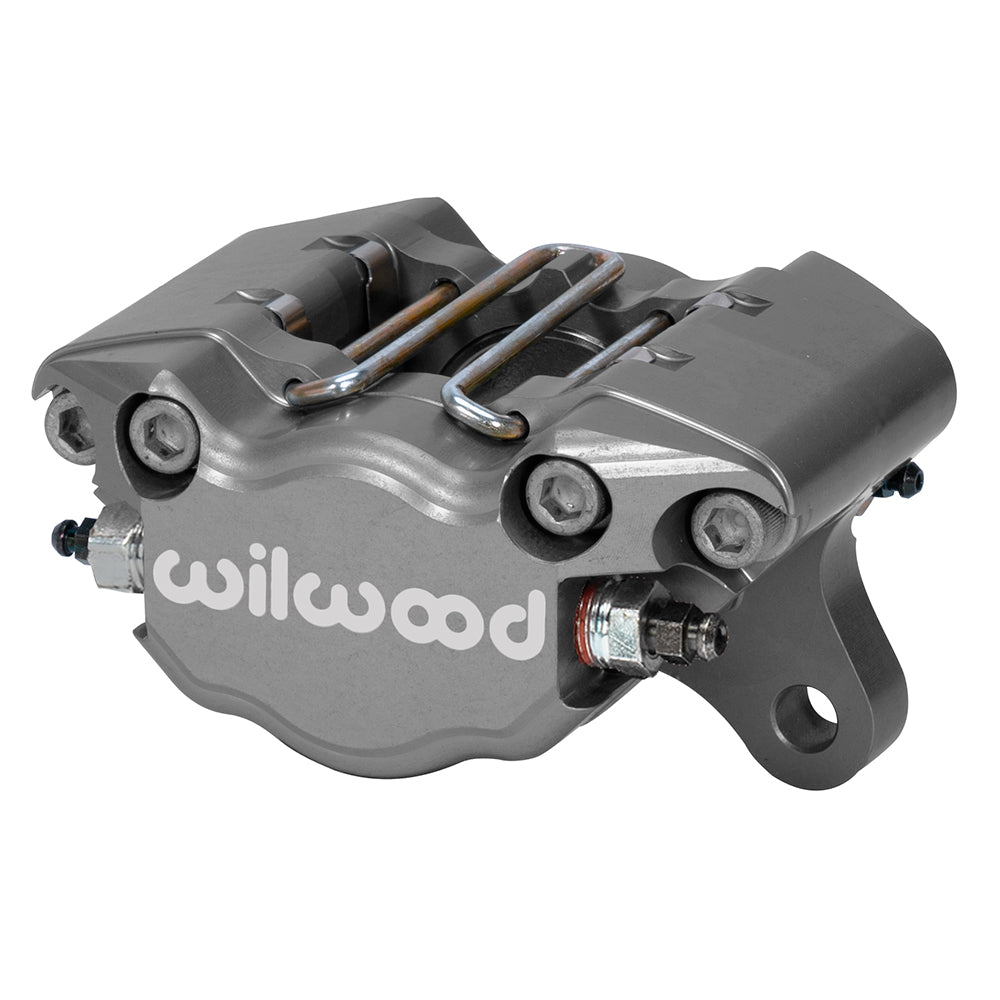

Wilwood DynaPro Single Long-Piston Caliper, 1.38-Inch Bores, 3.25-Inch Mount, 0.19-Inch rotor width: compact gray body, upper pad retainers and mounting ears

Wilwood DynaPro Single Long-Piston Caliper, 1.38-Inch Bores, 3.25-Inch Mount, 0.19-Inch rotor width

SKU: 120-9688-LP

$164.82 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The long-piston DynaPro Single is the extra-thin-rotor version of the 1.38-inch-bore DPS caliper. Two stainless pistons work in an anodized billet housing with 3.25-inch lug centers. Its nominal 0.19-inch rotor opening makes it a distinct configuration from the standard 0.38-inch body. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized uses, including calipers, brake rotors, master cylinders, valves, fittings and brake lines; each component must match the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 120-9688-LP
  • Caliper type: Dynapro Single
  • Construction: Billet Aluminium
  • Finish: Type III Anodize
  • Piston bores: 1.38 inches
  • Piston type: Stainless
  • Piston count: 2
  • Published piston area: 1.50 square inches
  • Dust boots: No
  • Nominal rotor width: 0.19 inch
  • Rotor thickness limits: 0.15–0.25 inches
  • Rotor diameter limits: 6.00–13.00 inches
  • Mounting style: Lug
  • Handedness: Not restricted to one side; correct mounting and bleed orientation required
  • Mounting centers: 3.25 inches
  • Mounting-hole size: 0.39 inch
  • Mount height: 1.92 inch
  • Hydraulic inlet thread: 1/8-27 NPT
  • Required pad shape: 6812
  • Published pad area: 3 square inches
  • Published pad volume: 1.1 cubic inches
  • Manufacturer-listed component weight: 2.3 lb

Fitment & Compatibility

Identify the long-piston variant when servicing an existing assembly; lug spacing and bore alone do not establish equivalence. Check rotor thickness within 0.15–0.25 inch, pad position and the bracket’s stand-off. Confirm hydraulic sizing and clearance around the rotor, hub and wheel before installing the replacement.
