Product details

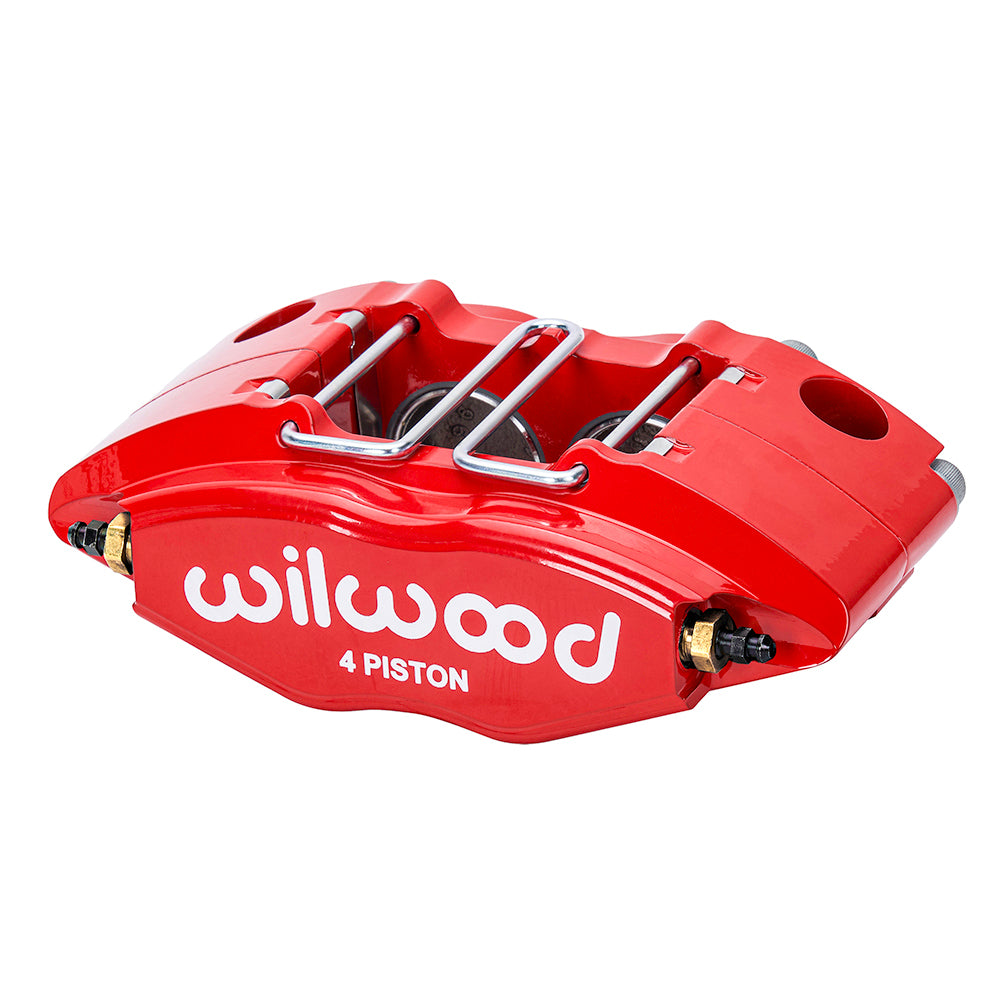

This red Powerlite combines the 1.38-inch stainless piston option with the wider 0.86-inch nominal rotor opening. Its forged body carries four pistons and mounts radially on a suitable bracket. It is supplied as an individual caliper for a dimensionally compatible brake conversion or matching component replacement. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-8729-RD
- Caliper type: Powerlite Radial Mount
- Construction: Forged Aluminium
- Finish: Red Powder Coat
- Piston bores: 1.38 / 1.38 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 3.00 square inches
- Dust boots: No
- Nominal rotor width: 0.86 inch
- Rotor thickness limits: 0.79–0.86 inches
- Rotor diameter limits: 9.45–11.00 inches
- Mounting style: Radial
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 5.08 inches
- Mounting-hole size: 0.40 inch
- Mount height: 1.56 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7912
- Published pad area: 5 square inches
- Published pad volume: 1.8 cubic inches
- Manufacturer-listed component weight: 2.8 lb
Fitment & Compatibility
Check the actual rotor thickness and the complete mounting outline against the package drawing. Radial spacing, mount height and lateral offset must place the pads correctly. Verify wheel-barrel and spoke clearance around the body and fitting, then confirm the hydraulic sizing required by the published piston area.
