Product details

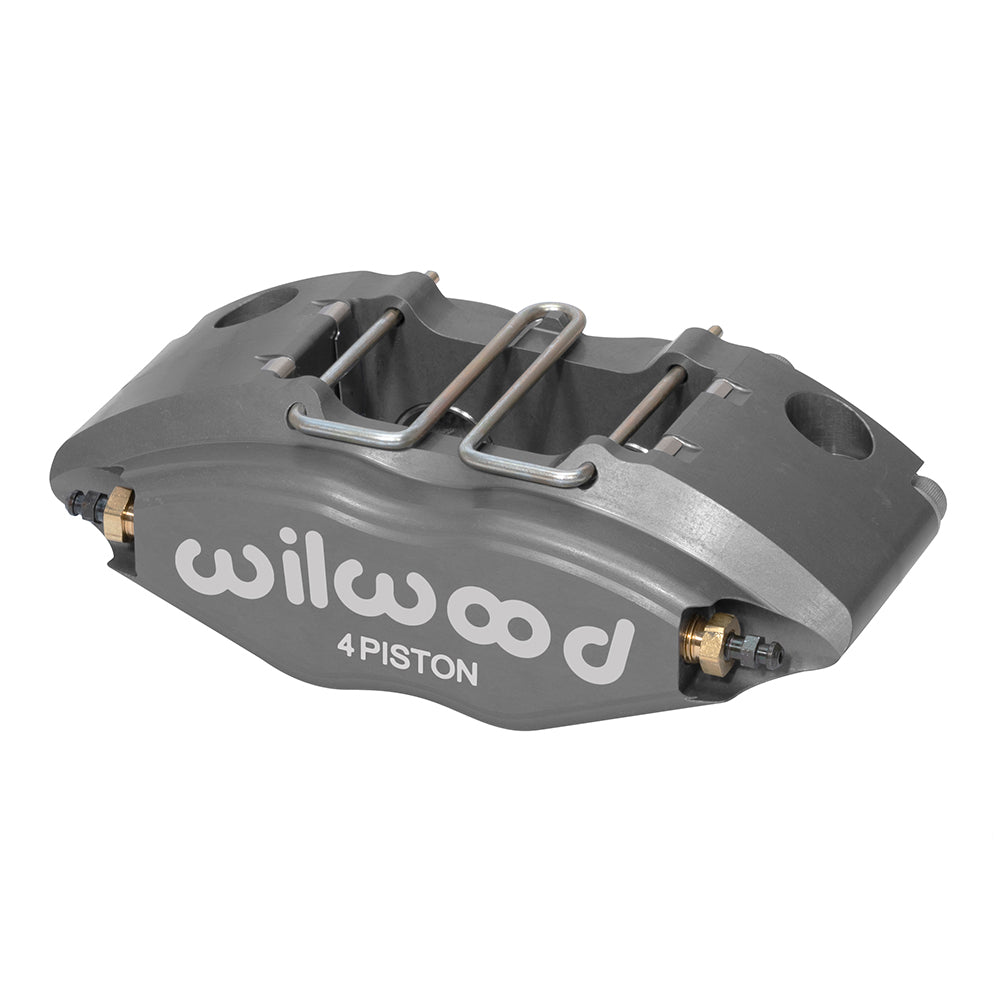

This anodized Powerlite uses the 1.25-inch piston option with the 0.79–0.86-inch rotor-width body. Four stainless pistons act in a forged radial housing, with top-mounted retention for the specified pad shape. The caliper should be selected by both hydraulic area and rotor dimensions when servicing a compact brake package. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, from calipers and brake rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications; selection depends on the complete brake system.
Technical Details
- Manufacturer part number: 120-8728
- Caliper type: Powerlite Radial Mount
- Construction: Forged Aluminium
- Finish: Type III Anodize
- Piston bores: 1.25 / 1.25 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 2.46 square inches
- Dust boots: No
- Nominal rotor width: 0.86 inch
- Rotor thickness limits: 0.79–0.86 inches
- Rotor diameter limits: 9.45–11.00 inches
- Mounting style: Radial
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 5.08 inches
- Mounting-hole size: 0.40 inch
- Mount height: 1.56 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7912
- Published pad area: 5 square inches
- Published pad volume: 1.8 cubic inches
- Manufacturer-listed component weight: 2.8 lb
Fitment & Compatibility
Verify the rotor’s measured width and centerline before checking the 5.08-inch mounting pattern. The bracket must set the proper radial height and pad contact without wheel or hub interference. Confirm the NPT inlet, available hose space and master-cylinder relationship with the complete brake assembly.
