Product details

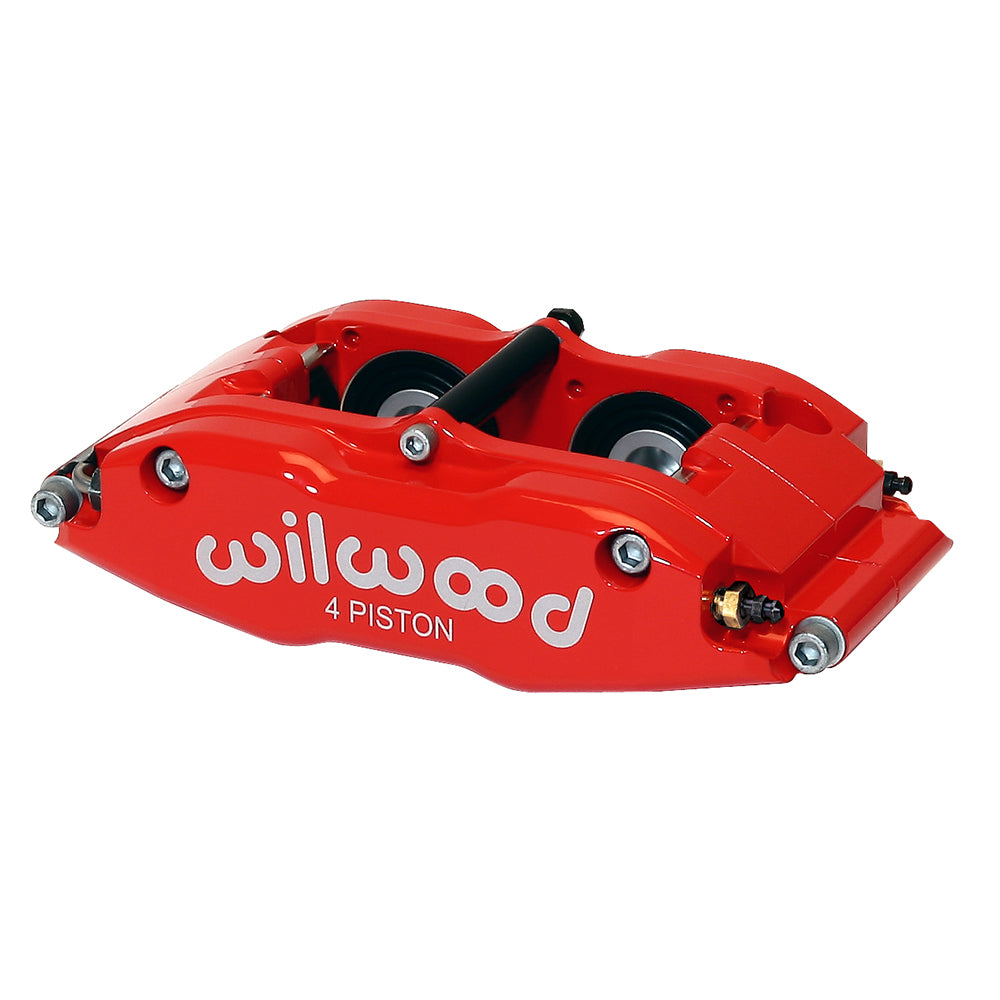

This right-hand red BNSL4R is the booted-piston, billet aluminum Narrow Superlite four-piston caliper. Four 1.25-inch bores and a nominal 1.10-inch rotor opening identify its hydraulic and rotor configuration. It is an individual component for a package designed around its radial mounting dimensions. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-8062-RRD
- Caliper type: Billet Narrow Superlite 4
- Construction: Billet Aluminium
- Finish: Red Powder Coat
- Piston bores: 1.25 / 1.25 inches
- Piston type: Aluminum
- Piston count: 4
- Published piston area: 2.46 square inches
- Dust boots: Yes
- Nominal rotor width: 1.10 inch
- Rotor thickness limits: 1.00–1.10 inches
- Rotor diameter limits: 11.75–14.00 inches
- Mounting style: Radial
- Mounting side: Right Hand
- Mounting centers: 5.98 inches
- Mounting-hole size: 0.39 inch
- Mount height: 1.45 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7416
- Published pad area: 8.2 square inches
- Published pad volume: 3.8 cubic inches
- Manufacturer-listed component weight: 5.0 lb
Fitment & Compatibility
Check the right-hand installation against the drawing before substituting for another Superlite series part. Verify 5.98-inch mounting centers, 2.32-inch mount height and the rotor’s friction-track position. The permitted rotor diameter and width, wheel-spoke envelope and NPT fitting clearance must all be confirmed with the complete assembly.
PMB Performance brings over 20 years of brake and parts experience to selection questions. Send the existing caliper reference and brake-package details for help checking compatibility.
