Product details

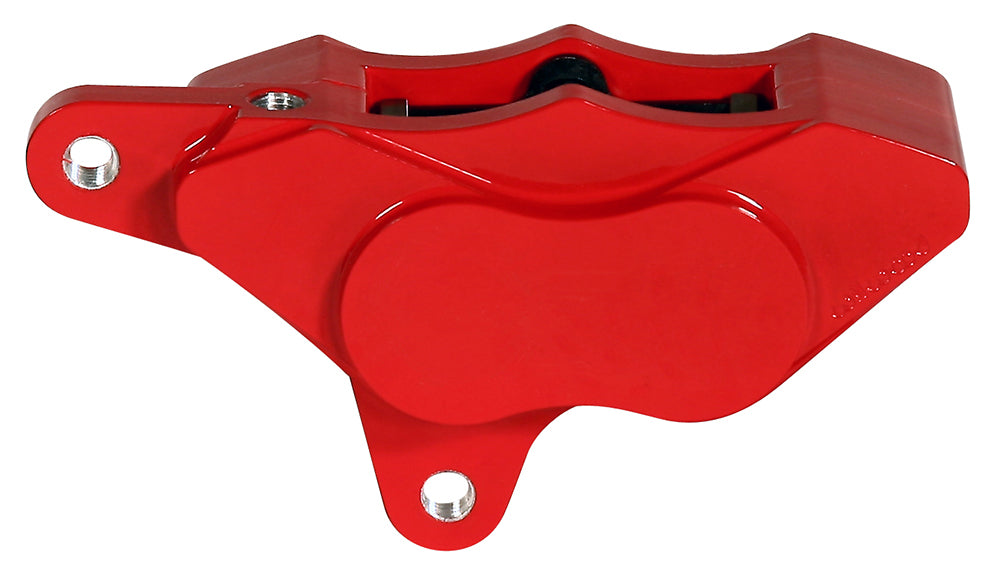

This red right-front GP310 is a billet aluminum motorcycle brake caliper with four 1.25-inch stainless pistons. It belongs to the earlier 1984–1999 Harley-Davidson direct fork-leg application identified by Wilwood. Its mounting and inlet specifications must agree with the motorcycle’s front brake arrangement. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-7736-RD
- Caliper type: GP310 Motorcycle Front (1984-1999)
- Construction: Billet Aluminium
- Finish: Red Powder Coat
- Piston bores: 1.25 / 1.25 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 2.46 square inches
- Dust boots: No
- Nominal rotor width: 0.25 inch
- Rotor thickness limits: 0.18–0.25 inches
- Rotor diameter limits: 11.00–11.50 inches
- Mounting style: Lug
- Mounting side: Right Hand
- Mounting centers: 3.44 inches
- Mount height: 2.33 inch
- Hydraulic inlet thread: 3/8-24
- Required pad shape: 6208
- Published pad area: 3.65 square inches
- Published pad volume: 0.63 cubic inches
- Manufacturer-listed component weight: 2.1 lb
- Supplied brake components: Individual GP310 caliper with brake pads
Fitment & Compatibility
Use the 3.44-inch mount pattern and 3/8-24 hydraulic connection as checks alongside model and year. Springer and four-speed FL applications are excluded. Verify the rotor’s measured width, pad sweep and wheel clearance, and use the fluid required by the particular motorcycle and complete brake system. Wilwood also specifically includes the 1983 Harley-Davidson XR1000 front application; verify the same fork, rotor and mounting requirements.
PMB Performance has over 20 years of experience helping customers with brake and parts fitment. Share the installed component identification and relevant measurements when requesting assistance.
Brake-pad warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov. This warning applies to the brake pads.
