Product details

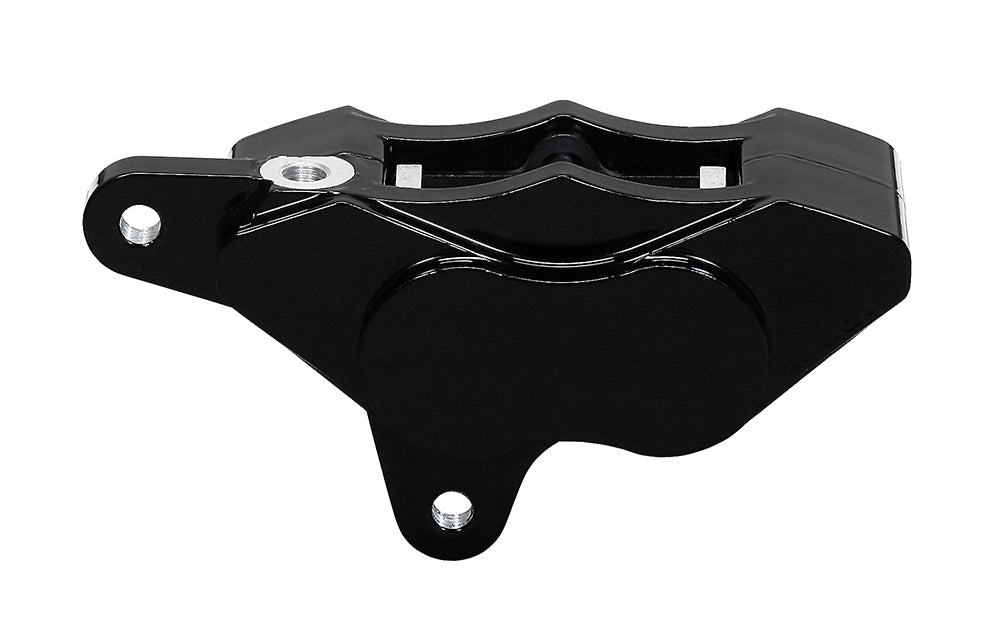

The black right-front GP310 is a four-piston motorcycle caliper for the supported 1984–1999 Harley-Davidson front-brake arrangement. It uses a 3.44-inch direct fork-leg mounting pattern and 1.25-inch stainless pistons. Wilwood excludes Springer and four-speed FL models from the stated front application. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. The manufacturer produces disc brake systems and components for motorsport, street-performance and specialized applications, with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Individual components are chosen to suit the complete brake system.
Technical Details
- Manufacturer part number: 120-7736-BK
- Caliper type: GP310 Motorcycle Front (1984-1999)
- Construction: Billet Aluminium
- Finish: Black Powder Coat
- Piston bores: 1.25 / 1.25 inches
- Piston type: Stainless
- Piston count: 4
- Published piston area: 2.46 square inches
- Dust boots: No
- Nominal rotor width: 0.25 inch
- Rotor thickness limits: 0.18–0.25 inches
- Rotor diameter limits: 11.00–11.50 inches
- Mounting style: Lug
- Mounting side: Right Hand
- Mounting centers: 3.44 inches
- Mount height: 2.33 inch
- Hydraulic inlet thread: 3/8-24
- Required pad shape: 6208
- Published pad area: 3.65 square inches
- Published pad volume: 0.63 cubic inches
- Manufacturer-listed component weight: 2.0 lb
- Supplied brake components: Individual GP310 caliper with brake pads
Fitment & Compatibility
Verify the fork-leg mount, rotor and right-hand orientation before ordering. The selected caliper lists 0.18–0.25-inch rotor thickness and an 11.00–11.50-inch diameter envelope. Check line connection, wheel clearance and the motorcycle’s required fluid specification; the GP310 family’s rear bracket applications do not define this front caliper’s fitment. Wilwood also specifically includes the 1983 Harley-Davidson XR1000 front application; verify the same fork, rotor and mounting requirements.
With over 20 years of parts experience, PMB Performance can help compare this component with your existing brake assembly. Include its caliper reference and any conversion-kit information.
