Product details

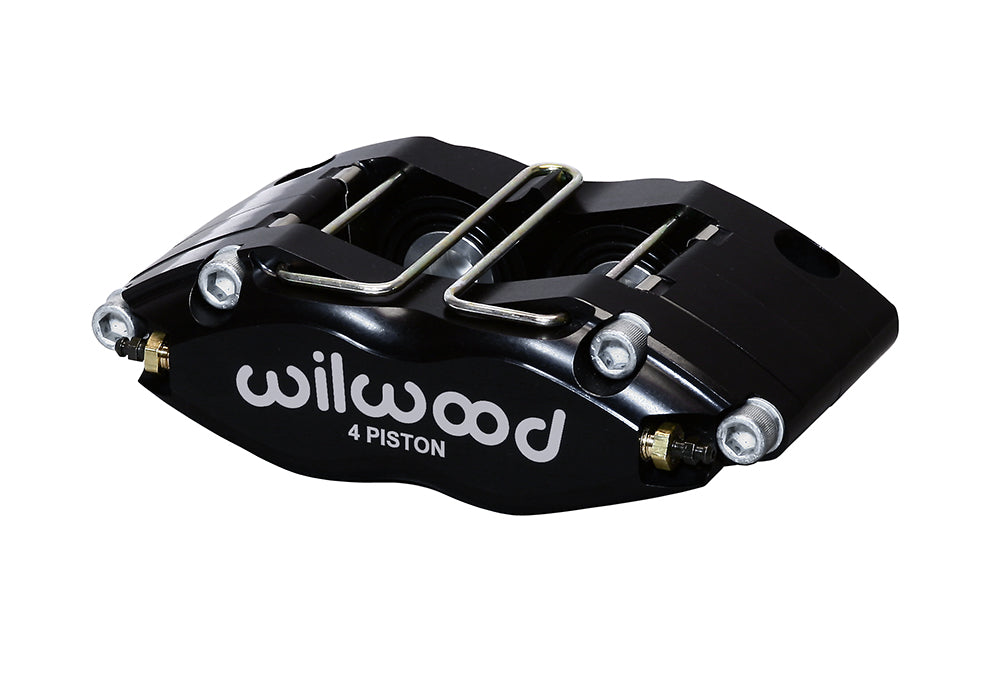

This DynaPro radial caliper uses four 1.50-inch aluminum pistons protected by dust boots. The selected body has a nominal 1.00-inch rotor opening and a black anodized finish. It is a dimensional brake component, with 5.98-inch mounting centers and a piston area that must suit the existing hydraulic system. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. The manufacturer produces disc brake systems and components for motorsport, street-performance and specialized applications, with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Individual components are chosen to suit the complete brake system.
Technical Details
- Manufacturer part number: 120-7328
- Caliper type: Dynapro Radial Mount
- Construction: Forged Aluminium
- Finish: Black Anodize
- Piston bores: 1.50 / 1.50 inches
- Piston type: Aluminum
- Piston count: 4
- Published piston area: 3.54 square inches
- Dust boots: Yes
- Nominal rotor width: 1.00 inch
- Rotor thickness limits: 0.94–1.04 inches
- Rotor diameter limits: 10.75–12.19 inches
- Mounting style: Radial
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 5.98 inches
- Mounting-hole size: 0.39 inch
- Mount height: 1.61 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 7816
- Published pad area: 6.36 square inches
- Published pad volume: 3 cubic inches
- Manufacturer-listed component weight: 4.1 lb
Fitment & Compatibility
Match both the radial bracket and the 0.88–1.04-inch rotor thickness envelope. Check the 10.75–12.19-inch rotor diameter limits against the pad track, and leave adequate wheel clearance. Dust-booted pistons distinguish this part from competition versions that may share the general DynaPro shape.
For help identifying the correct brake component, provide the caliper markings and installation dimensions. PMB Performance has over 20 years of experience with parts and brake-system details.
