Product details

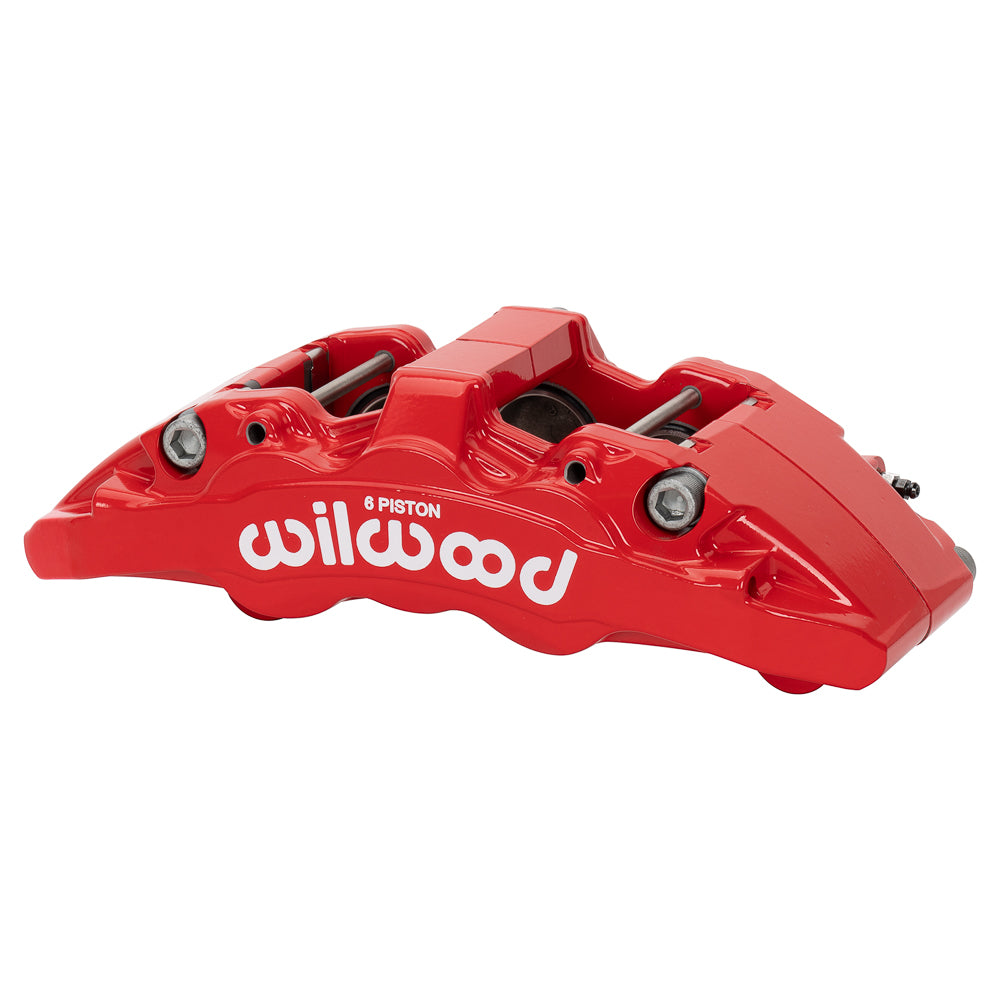

This red left-hand AeroDM supplies the caliper portion of Wilwood’s front conversion for the documented 2024–2025 Toyota Tacoma application. Six stainless pistons work in a forged body with internal hydraulic crossovers. Its 5.06-square-inch piston area and 7.08-inch lug spacing distinguish the working configuration that must match the rest of the brake system. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, from calipers and brake rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications; selection depends on the complete brake system.
Technical Details
- Manufacturer part number: 120-18287-RD
- Caliper type: AeroDM Lug Mount
- Construction: Forged Aluminium
- Finish: Red Powder Coat
- Piston bores: 1.62 / 1.38 / 1.38 inches
- Piston type: Stainless
- Piston count: 6
- Published piston area: 5.06 square inches
- Dust boots: No
- Nominal rotor width: 1.25 inch
- Rotor thickness limits: 1.10–1.28 inches
- Rotor diameter limits: 12.19–13.38 inches
- Mounting style: Lug
- Mounting side: Left Hand
- Mounting centers: 7.08 inches
- Mounting-hole size: 0.47 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 6617
- Published pad area: 11.1 square inches
- Published pad volume: 5.2 cubic inches
- Manufacturer-listed component weight: 8.9 lb
- Documented front package: Toyota Tacoma (2024–2025), Wilwood kit 140-18381; match its complete rotor and hydraulic arrangement
- Matched-kit rotor: 1.26-inch thickness × 13.38-inch diameter in DS1709; package-specific dimensions govern the matched assembly
Fitment & Compatibility
Compare the existing brake package with DS1709 and its specified rotor before purchasing. The full kit determines rotor position, spindle mounting and hydraulic-line requirements. Check left-hand orientation, fitting clearance and the wheel template; the caliper’s nominal rotor opening alone cannot establish compatibility with another Tacoma or an unrelated conversion.
PMB Performance has over 20 years of experience helping customers with brake and parts fitment. Share the installed component identification and relevant measurements when requesting assistance.
