Product details

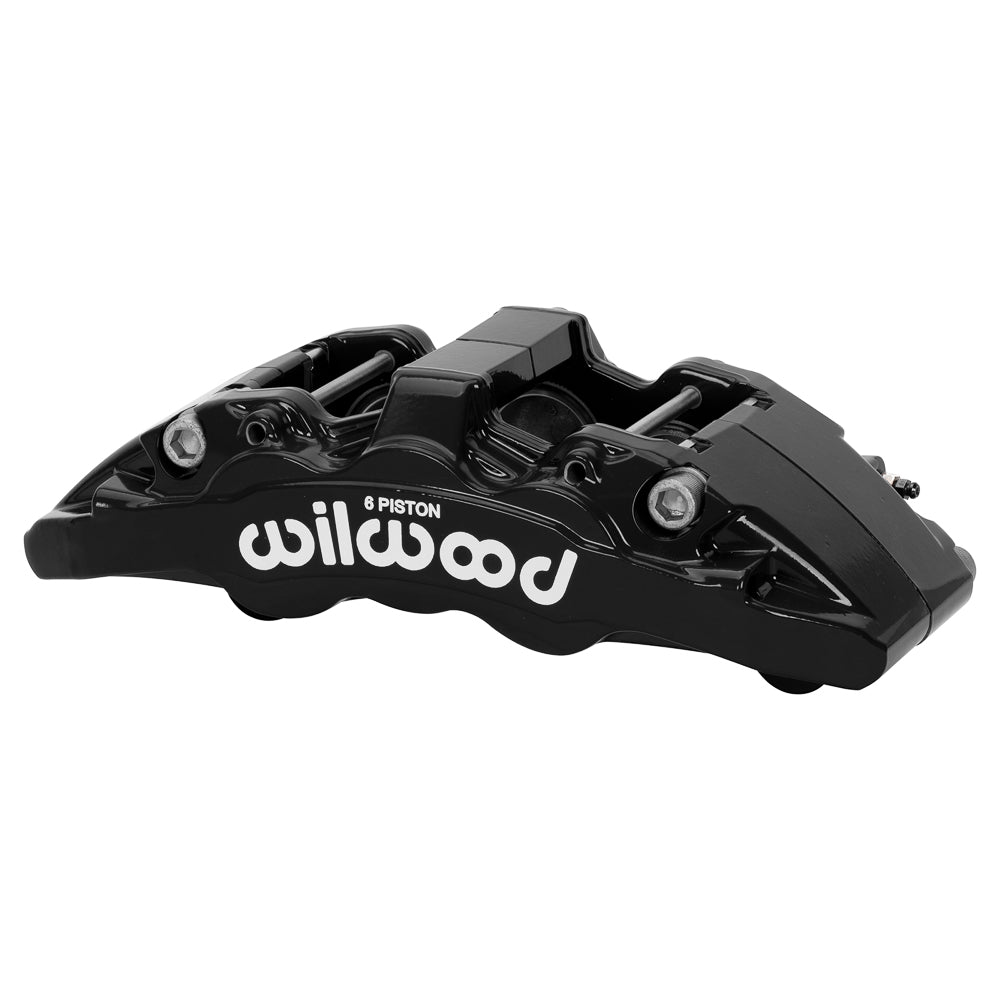

Black powder coating covers the left-hand AeroDM six-piston caliper for Wilwood’s 2024–2025 Toyota Tacoma front package. The caliper uses a 7.08-inch direct lug interface and a staggered 1.62/1.38/1.38-inch bore layout. The surrounding conversion is an essential part of the application, not an optional assumption based on the vehicle name. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-18287-BK
- Caliper type: AeroDM Lug Mount
- Construction: Forged Aluminium
- Finish: Black Powder Coat
- Piston bores: 1.62 / 1.38 / 1.38 inches
- Piston type: Stainless
- Piston count: 6
- Published piston area: 5.06 square inches
- Dust boots: No
- Nominal rotor width: 1.25 inch
- Rotor thickness limits: 1.10–1.28 inches
- Rotor diameter limits: 12.19–13.38 inches
- Mounting style: Lug
- Mounting side: Left Hand
- Mounting centers: 7.08 inches
- Mounting-hole size: 0.47 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 6617
- Published pad area: 11.1 square inches
- Published pad volume: 5.2 cubic inches
- Manufacturer-listed component weight: 8.9 lb
- Documented front package: Toyota Tacoma (2024–2025), Wilwood kit 140-18381; match its complete rotor and hydraulic arrangement
- Matched-kit rotor: 1.26-inch thickness × 13.38-inch diameter in DS1709; package-specific dimensions govern the matched assembly
Fitment & Compatibility
Confirm this caliper against the parts list and left-hand installation in DS1709. Use the prescribed rotor and hydraulic connection and verify spoke clearance with the complete assembly. When servicing a modified truck, check that the spindle, hub and installed kit remain the documented arrangement before selecting the individual replacement.
PMB Performance has over 20 years of experience helping customers with brake and parts fitment. Share the installed component identification and relevant measurements when requesting assistance.
