Product details
A black left-hand MC4 caliper provides cable-actuated parking hold in this 0.81-inch nominal-width format. The sliding design incorporates an aluminum piston protected by a dust boot and a manually adjustable lever mechanism. It is supplied with the steel bracket, parking pads and noise shields described for this exact mechanical caliper. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-18267-BK
- Caliper type: MC4 Mechanical
- Construction: Cast Aluminium
- Finish: Black Powder Coat
- Piston bores: 1.19 inches
- Piston type: Aluminum
- Mechanically driven piston count: 1
- Dust boots: Yes
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.70–0.81 inches
- Rotor diameter limits: 11.00–14.00 inches
- Mounting style: Floating
- Mounting side: Left Hand
- Mounting centers: 4.75 inches
- Mounting-hole size: 0.67 inch
- Actuation: Cable-operated parking mechanism; no hydraulic inlet

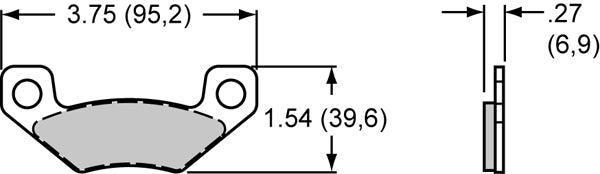

- Required pad shape: 6407
- Published pad area: 1.7 square inches
- Published pad volume: 0.26 cubic inches
- Manufacturer-listed component weight: 3.3 lb
- Supplied components: Individual caliper, parking pads with noise shields and steel mounting bracket
- Cable interface: 0.310-inch-diameter barrel end; confirm cable travel and routing
Fitment & Compatibility
Confirm the left-hand cable pull and the 4.75-inch bracket pattern. A rotor within the 11.00–14.00-inch diameter envelope must also meet the thickness range and align with the pad faces. Check the barrel-ended cable connection, full return movement and available wheel clearance, then set the mechanical adjuster for the completed installation.
With over 20 years of parts experience, PMB Performance can help compare this component with your existing brake assembly. Include its caliper reference and any conversion-kit information.
Brake-pad warning: Cancer and Reproductive Harm. www.P65Warnings.ca.gov. This warning applies to the brake pads.
