Product details

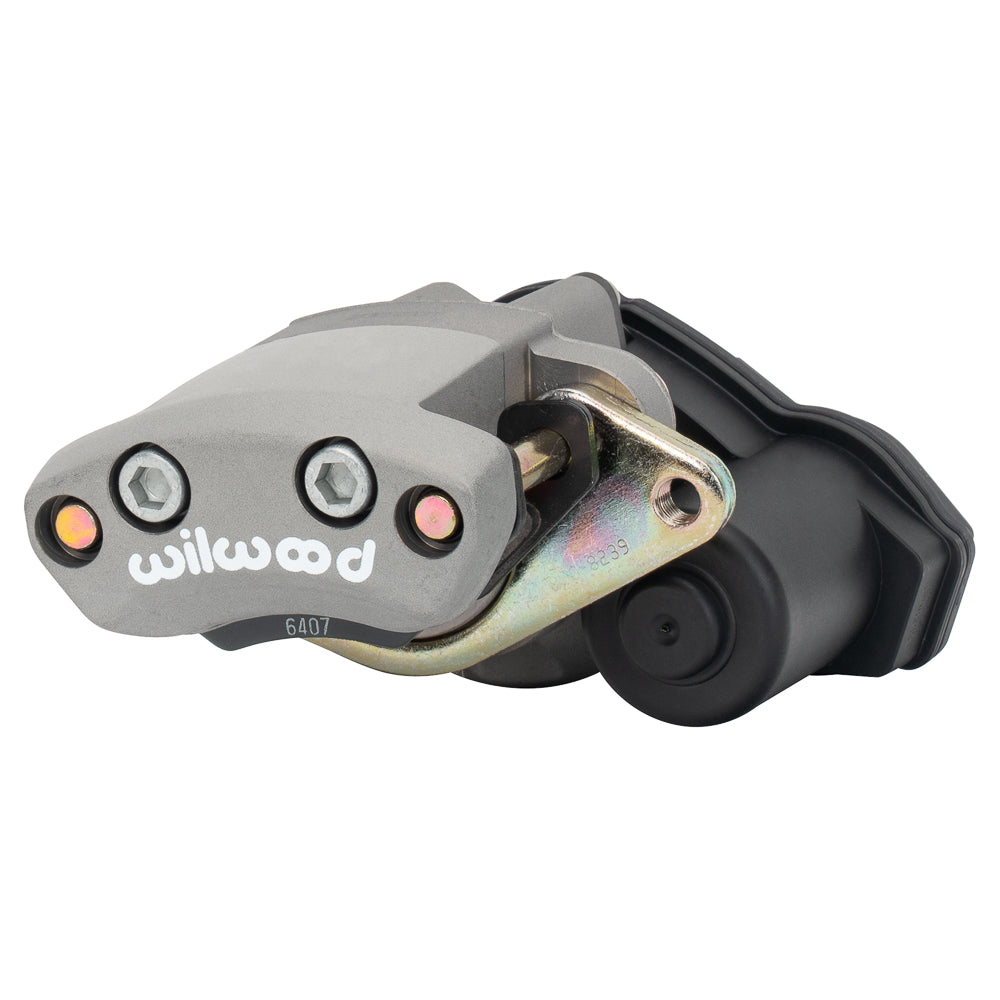

The left-hand anodized Hi-Torque EPB provides electric parking actuation for a 1.10-inch nominal-width rotor. It is an aluminum-and-steel caliper with a lug-mounted bracket interface and no brake-fluid inlet. This version belongs to a coordinated parking system with the appropriate motor controls and a separate service-brake assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized uses, including calipers, brake rotors, master cylinders, valves, fittings and brake lines; each component must match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 120-18232
- Caliper type: Electric Parking Brake
- Construction: Aluminium / Steel
- Finish: Type III Anodize
- Piston bores: 1.25 inches
- Piston type: Steel
- Mechanically driven piston count: 1
- Dust boots: No
- Nominal rotor width: 1.10 inch
- Rotor thickness limits: 1.04–1.10 inches
- Rotor diameter limits: 11.00–14.00 inches
- Mounting style: Lug
- Mounting side: Left Hand
- Mounting centers: 4.75 inches
- Mount height: 0.36 inch
- Actuation: Hi-Torque electric parking motor; no hydraulic inlet
- Required pad shape: 6407
- Published pad area: 1.7 square inches
- Published pad volume: 0.26 cubic inches
- Manufacturer-listed component weight: 5.0 lb
Fitment & Compatibility
Check the exact rotor and installation drawing before choosing the caliper. Its permitted thickness is 1.04–1.10 inches, with an 11.00–14.00-inch diameter envelope. Allow space on the left-hand side for the motor housing and lead, verify the 4.75-inch bracket geometry and confirm that the controller is intended for the Hi-Torque drive.
For help identifying the correct brake component, provide the caliper markings and installation dimensions. PMB Performance has over 20 years of experience with parts and brake-system details.
