Product details

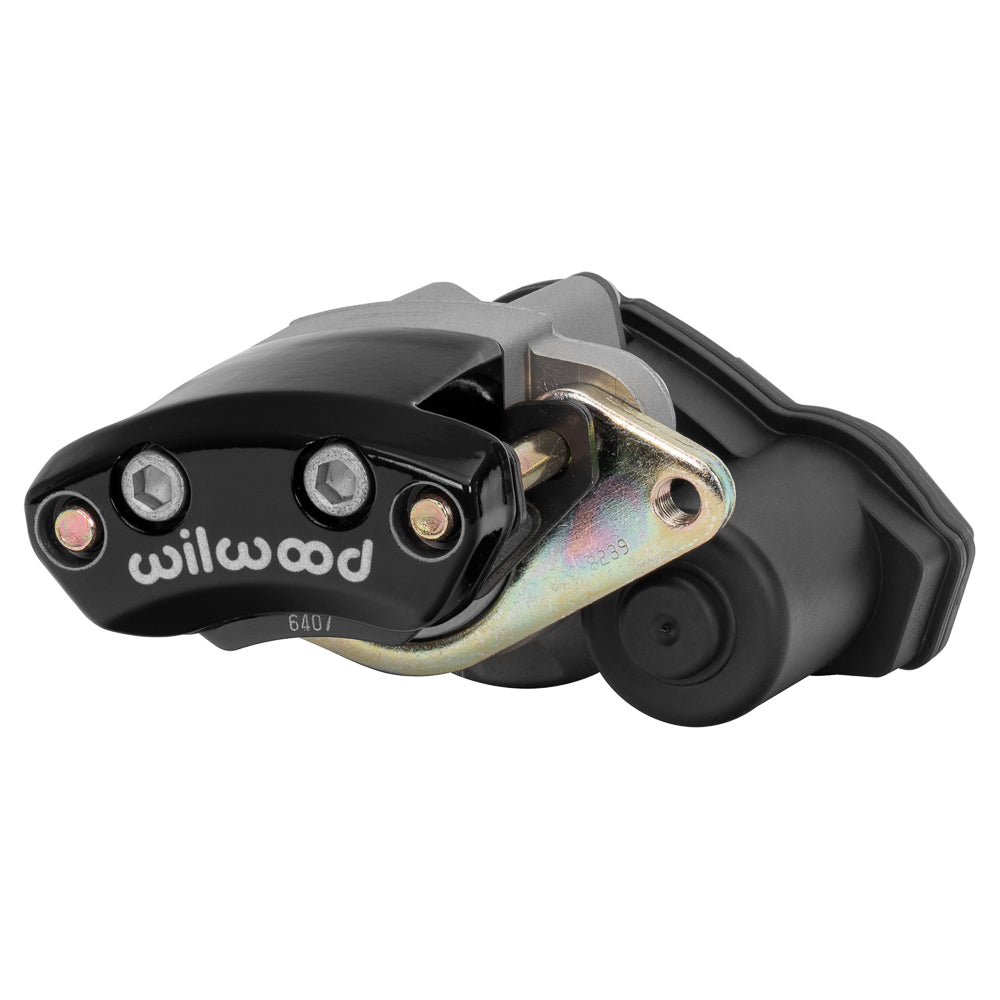

Black finish distinguishes this left-hand EPB motorized parking caliper. The body is dimensioned around a nominal 0.81-inch rotor width and uses the 4.75-inch mounting format. Hi-Torque motor operation replaces a parking cable input; it does not convert the part into a hydraulic caliper or establish vehicle-specific compatibility. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. The manufacturer produces disc brake systems and components for motorsport, street-performance and specialized applications, with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Individual components are chosen to suit the complete brake system.
Technical Details
- Manufacturer part number: 120-18230-BK
- Caliper type: Electric Parking Brake
- Construction: Aluminium / Steel
- Finish: Black Powder Coat
- Piston bores: 1.25 inches
- Piston type: Steel
- Mechanically driven piston count: 1
- Dust boots: No
- Nominal rotor width: 0.81 inch
- Rotor thickness limits: 0.75–0.81 inches
- Rotor diameter limits: 11.00–14.00 inches
- Mounting style: Lug
- Mounting side: Left Hand
- Mounting centers: 4.75 inches
- Mount height: 0.36 inch
- Actuation: Hi-Torque electric parking motor; no hydraulic inlet
- Required pad shape: 6407
- Published pad area: 1.7 square inches
- Published pad volume: 0.26 cubic inches
- Manufacturer-listed component weight: 4.9 lb
Fitment & Compatibility
Check the exact caliper and controller pairing before ordering, including any requirements for the Hi-Torque drive. The bracket must set both radial height and rotor offset while leaving the motor unobstructed. Inspect wheel clearance and protect the electrical lead from heat, abrasion and moving suspension components after the complete system is assembled.
PMB Performance has over 20 years of experience helping customers with brake and parts fitment. Share the installed component identification and relevant measurements when requesting assistance.
