Product details

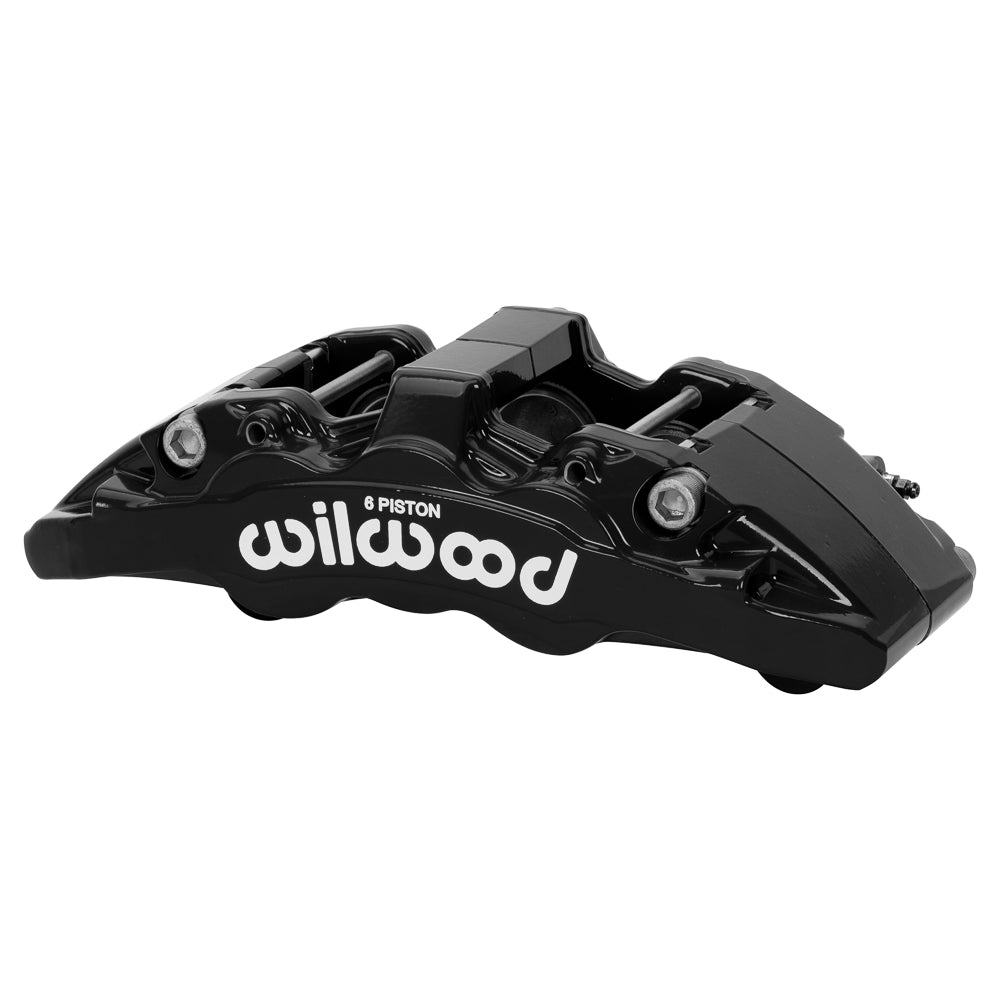

The black right-hand AeroDM is a six-piston front caliper used in Wilwood’s documented Toyota Tundra brake package. A forged body and internal fluid routing support the direct spindle-mount layout, with staggered 1.75/1.62/1.62-inch bores. This listing is for the individual caliper, not the rotors, hose kit or full front axle package. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-18225-BK
- Caliper type: AeroDM Lug Mount
- Construction: Forged Aluminium
- Finish: Black Powder Coat
- Piston bores: 1.75 / 1.62 / 1.62 inches
- Piston type: Stainless
- Piston count: 6
- Published piston area: 6.52 square inches
- Dust boots: No
- Nominal rotor width: 1.25 inch
- Rotor thickness limits: 1.10–1.25 inches
- Rotor diameter limits: 12.19–13.56 inches
- Mounting style: Lug
- Mounting side: Right Hand
- Mounting centers: 7.48 inches
- Mounting-hole size: 0.40 inch
- Hydraulic inlet thread: 1/8-27 NPT
- Required pad shape: 6617
- Published pad area: 11.1 square inches
- Published pad volume: 5.2 cubic inches
- Manufacturer-listed component weight: 8.8 lb
- Documented front package: Toyota Tundra (2007–2015), Wilwood kit 140-18357; use the kit-specific rotor, line and hardware arrangement
- Matched-kit rotor: 1.26-inch thickness × 13.39-inch diameter in DS1695; identify the approved package by its exact component list
Fitment & Compatibility
Wilwood’s DS1695 identifies this caliper pair in the front kit for the documented Tundra application. Match the complete kit reference and its rotor arrangement rather than treating the caliper as a standalone original-brake replacement. Confirm the 7.48-inch lug spacing, spindle mounting, hose routing and wheel clearance with the applicable installation instructions. The documented application is Toyota Tundra (2007–2015). The kit-specific rotor dimensions govern the matched assembly; do not treat the nominal caliper opening as approval for unrelated rotors.
For help identifying the correct brake component, provide the caliper markings and installation dimensions. PMB Performance has over 20 years of experience with parts and brake-system details.
