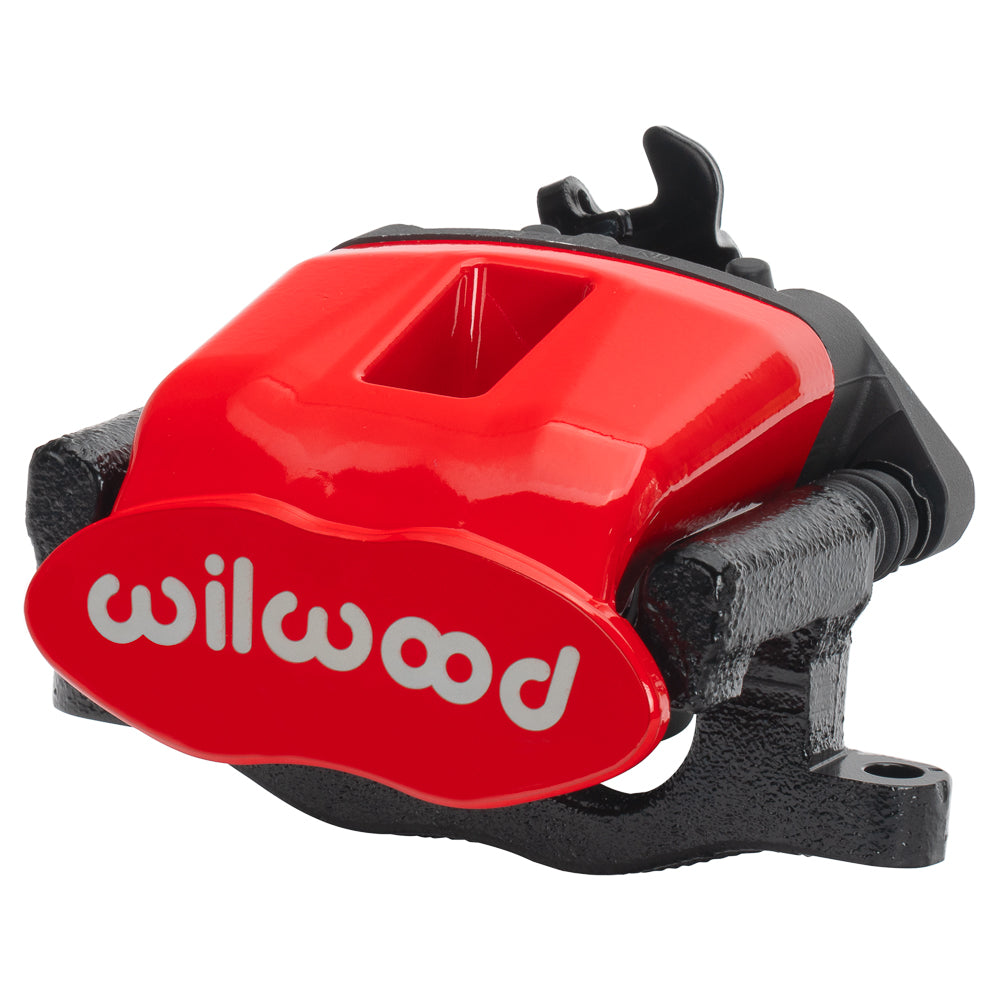

Wilwood Rear Left Red CPB Thin-Rotor Combination Caliper, 5.98-Inch Radial Mount: red combination body, upper pad cavity and dark carrier

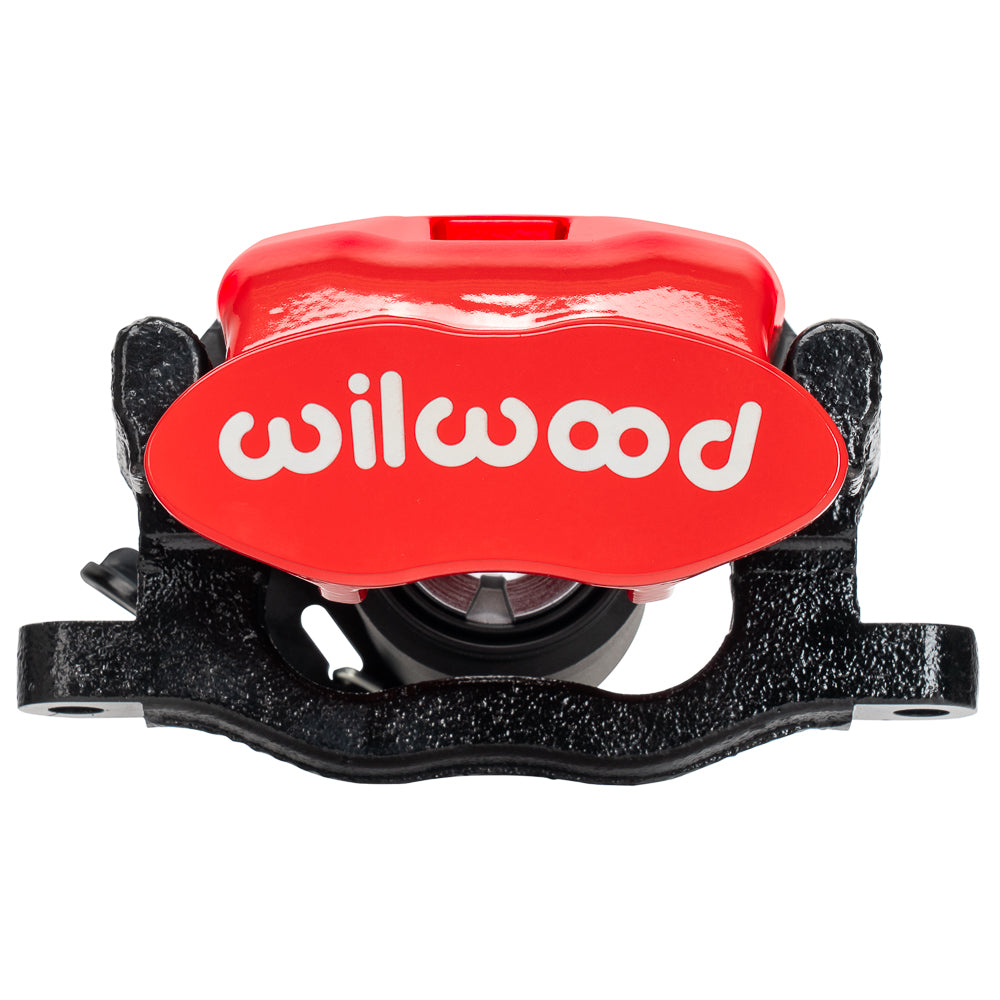

Wilwood CPB red logo-side face in a front family view, framed by the black carrier

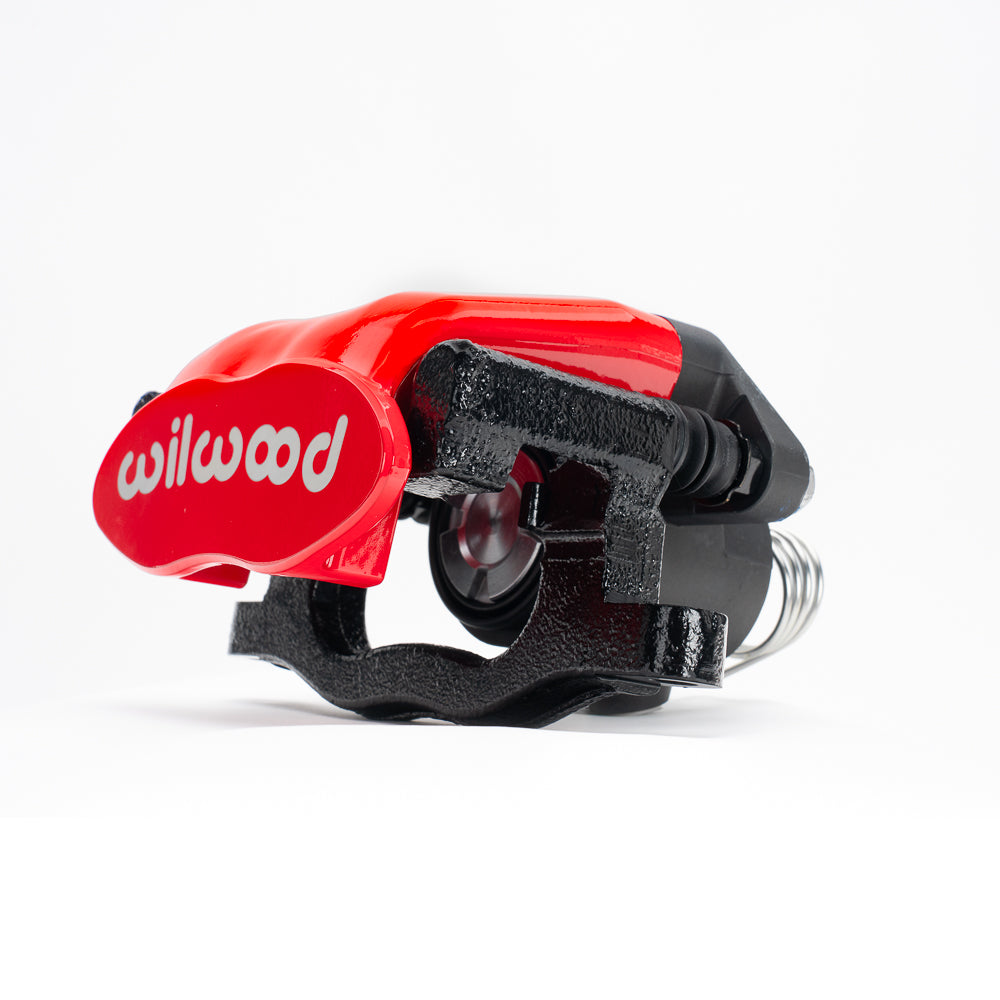

Wilwood red combination-brake body and mounting carrier, alternate angled family view

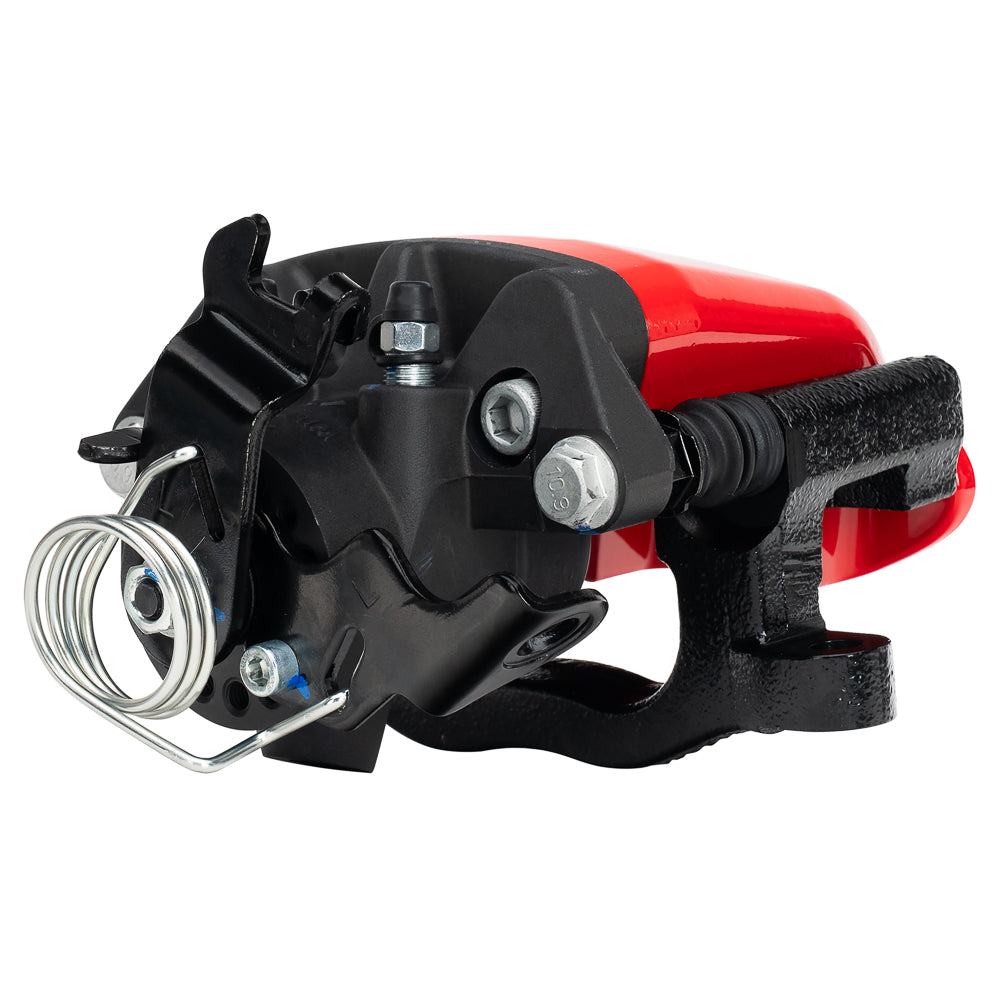

Wilwood red CPB rear family view with cable-actuator housing and coiled return spring
Wilwood Rear Left Red CPB Thin-Rotor Combination Caliper, 5.98-Inch Radial Mount: red combination body, upper pad cavity and dark carrier
Wilwood CPB red logo-side face in a front family view, framed by the black carrier
Wilwood red combination-brake body and mounting carrier, alternate angled family view
Wilwood red CPB rear family view with cable-actuator housing and coiled return spring

Wilwood Rear Left Red CPB Thin-Rotor Combination Caliper, 5.98-Inch Radial Mount

SKU: 120-18210-RD

$314.82 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

A cable-operated parking lock and hydraulic service piston are incorporated in this red left-hand CPB. The caliper slides on its mount to maintain pad alignment, while the fixed radial bracket establishes its position over the rotor. It is configured for a thin 0.38-inch rotor width and uses an aluminum-and-steel construction. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized uses, including calipers, brake rotors, master cylinders, valves, fittings and brake lines; each component must match the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 120-18210-RD
  • Caliper type: Combination Parking Brake
  • Construction: Aluminium / Steel
  • Finish: Red Powder Coat
  • Piston bores: 1.34 inches
  • Piston type: Steel
  • Piston count: 1
  • Published piston area: 1.41 square inches
  • Dust boots: Yes
  • Nominal rotor width: 0.38 inch
  • Rotor thickness limits: 0.32–0.38 inches
  • Rotor diameter limits: 11.00–13.00 inches
  • Mounting style: Radial
  • Mounting side: Left Hand
  • Mounting centers: 5.98 inches
  • Mounting-hole size: 0.39 inch
  • Mount height: 2.08 inch
  • Hydraulic inlet thread: M10 x 1.00
  • Required pad shape: D340
  • Published pad area: 4 square inches
  • Published pad volume: 1.5 cubic inches
  • Manufacturer-listed component weight: 6.1 lb

Fitment & Compatibility

For the rear installation, confirm a compatible axle bracket, rotor offset and 11.00–13.00-inch diameter. Do not order it as an EPB: parking operation uses a cable and does not use an electric motor. Verify the cable termination and return movement, then check the M10 x 1.00 inlet and clearance around the wheel and suspension.

For help identifying the correct brake component, provide the caliper markings and installation dimensions. PMB Performance has over 20 years of experience with parts and brake-system details.
