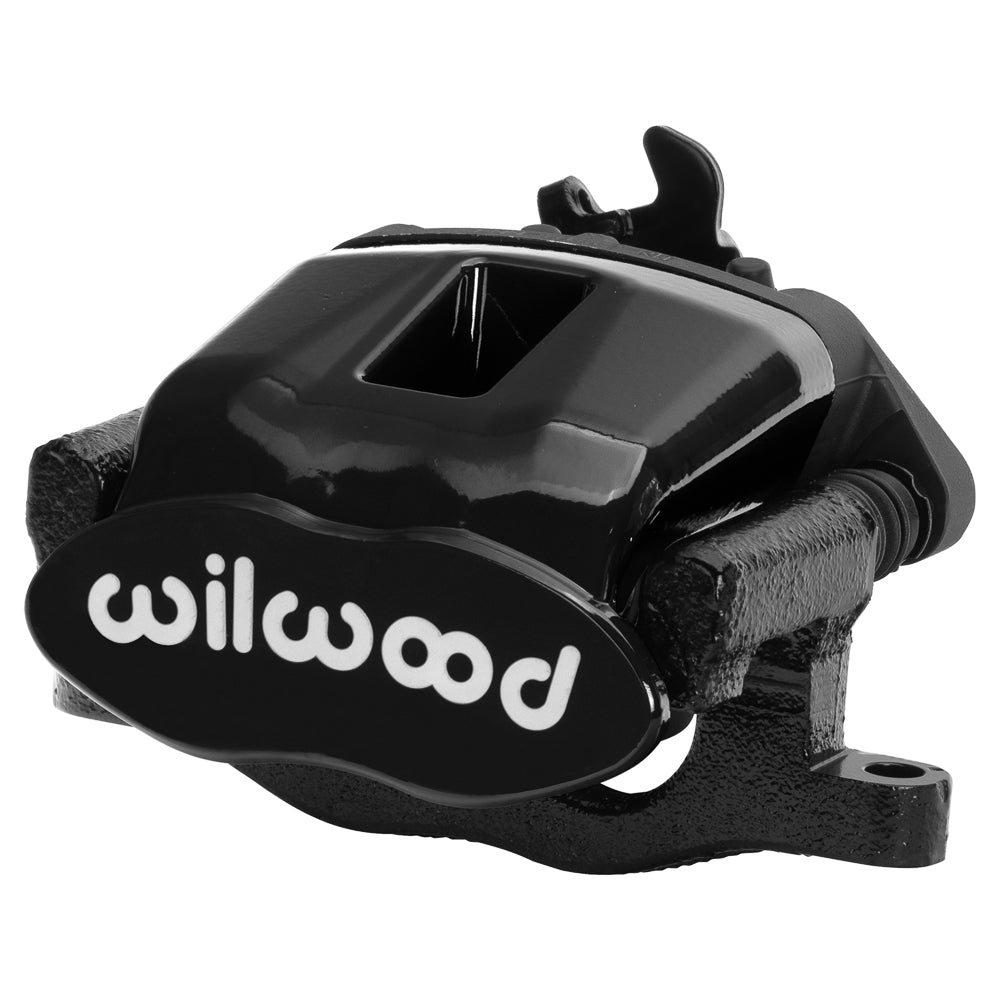

Wilwood Left Rear Black CPB Caliper, Hydraulic Service Brake and Cable Parking Lock: black combination-caliper body with its pad opening and mounting carrier

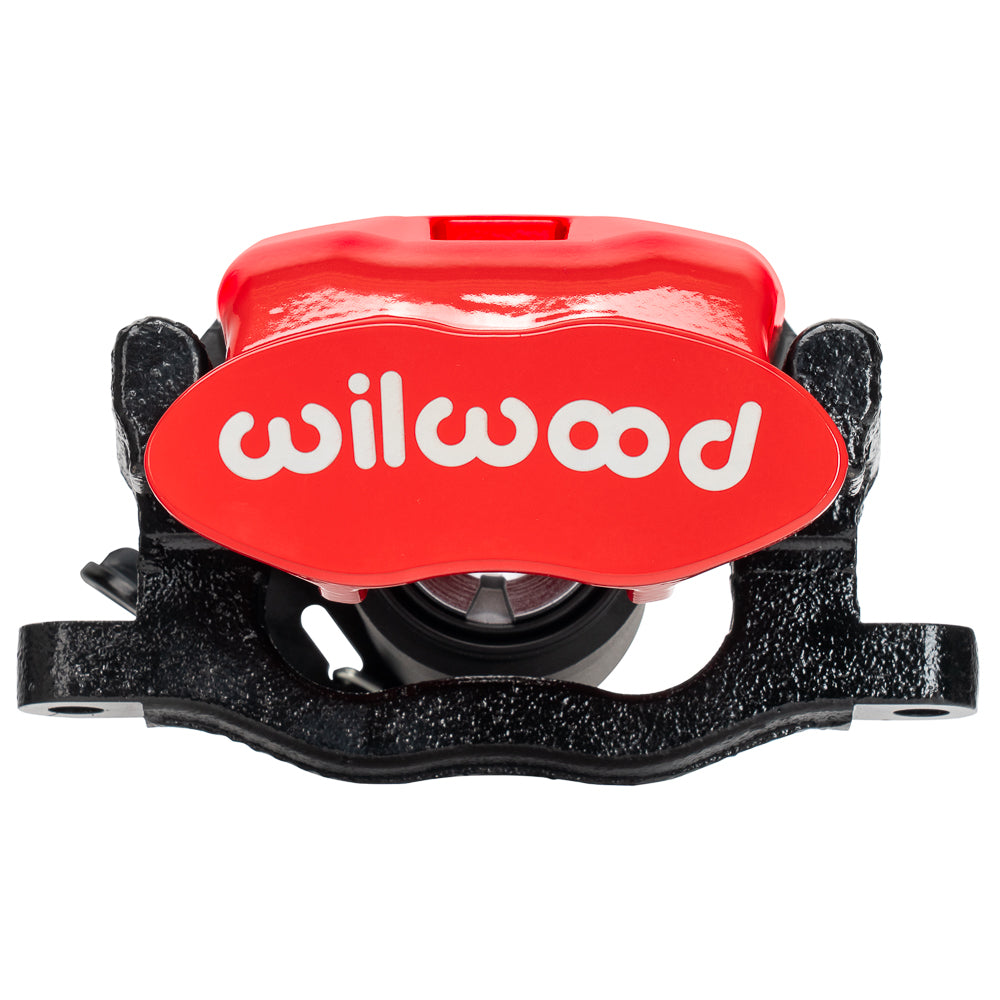

Wilwood red CPB family caliper seen straight on, with white lettering and dark mounting carrier

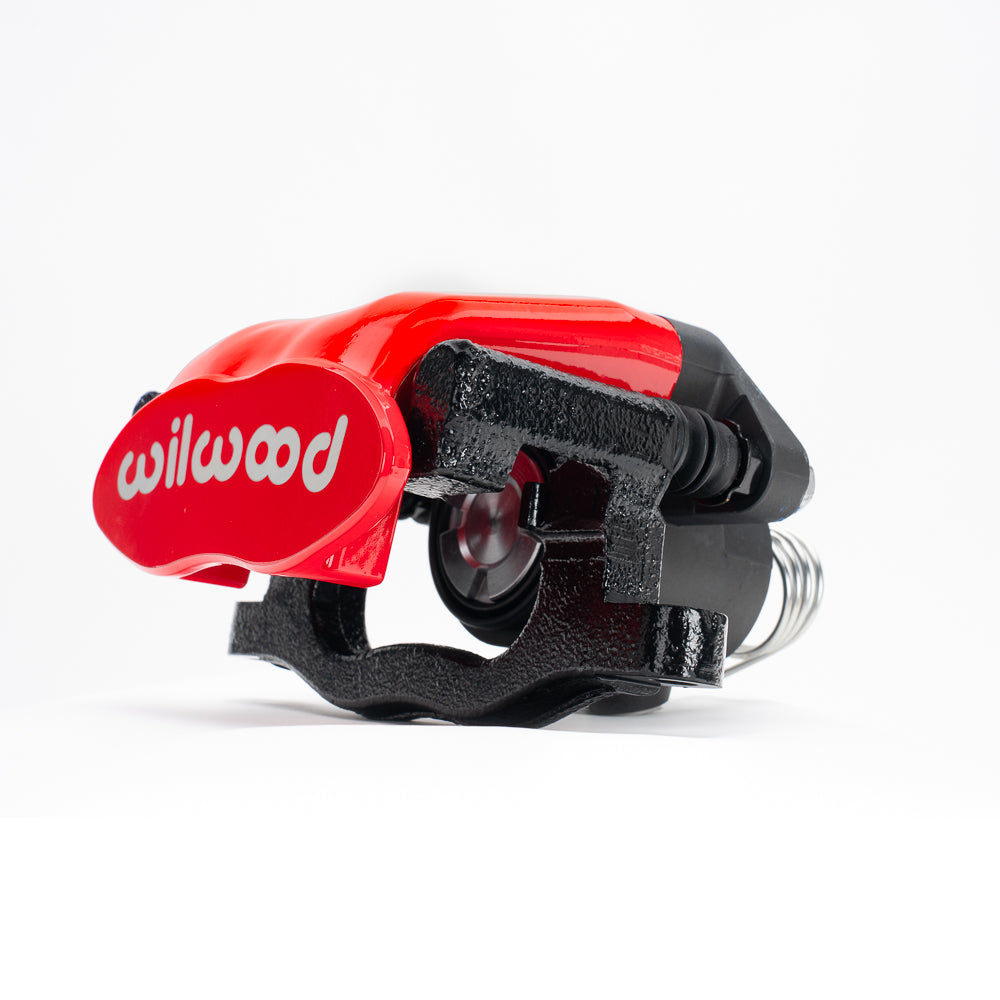

Wilwood combination parking caliper in red, side-angle family view of carrier and lever spring

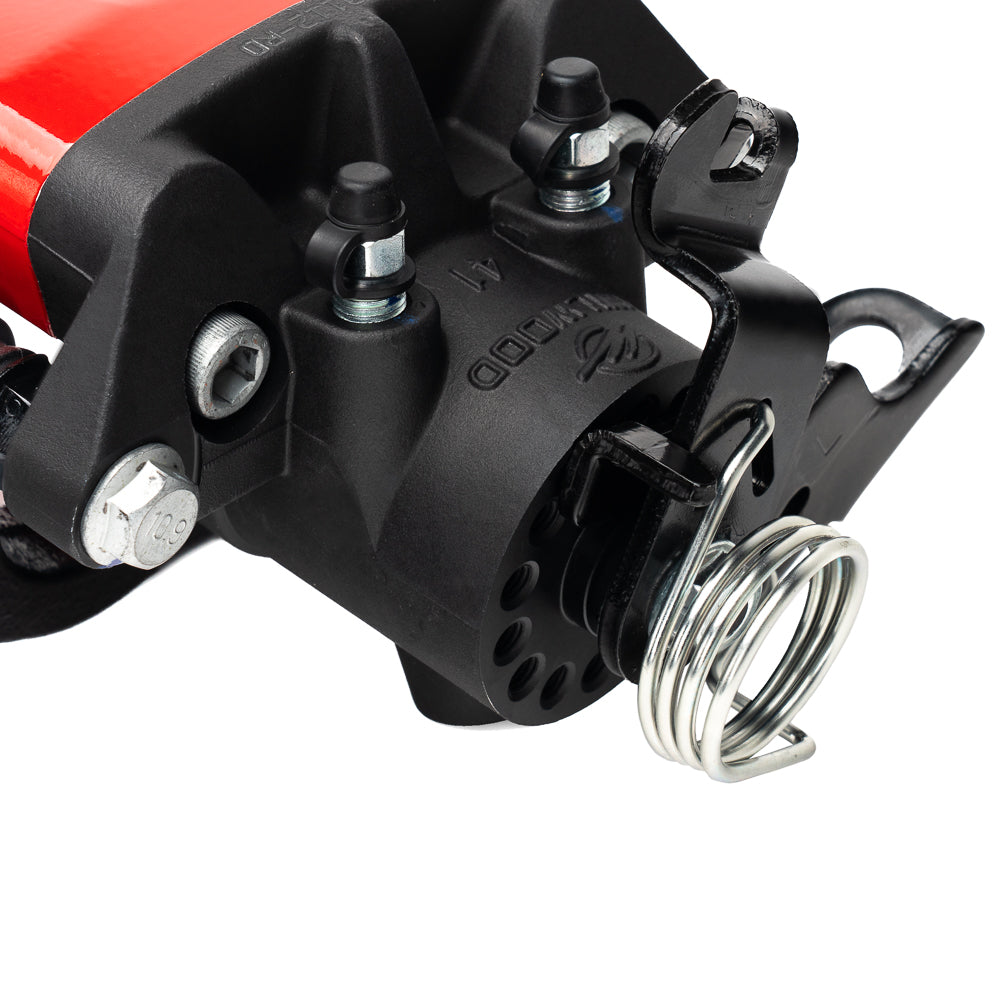

Wilwood CPB parking mechanism viewed from behind, with dark actuator housing and return spring
Wilwood Left Rear Black CPB Caliper, Hydraulic Service Brake and Cable Parking Lock: black combination-caliper body with its pad opening and mounting carrier
Wilwood red CPB family caliper seen straight on, with white lettering and dark mounting carrier
Wilwood combination parking caliper in red, side-angle family view of carrier and lever spring
Wilwood CPB parking mechanism viewed from behind, with dark actuator housing and return spring

Wilwood Left Rear Black CPB Caliper, Hydraulic Service Brake and Cable Parking Lock

SKU: 120-18210-BK

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black powder coating finishes the left-hand thin-rotor CPB caliper. The hydraulic piston applies the service brake, while a separate cable input operates the parking lock in the same floating assembly. This combination is intended for suitable rear disc conversions or replacement of an identical CPB configuration, with a 0.38-inch nominal rotor width. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. The manufacturer produces disc brake systems and components for motorsport, street-performance and specialized applications, with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Individual components are chosen to suit the complete brake system.

Technical Details

  • Manufacturer part number: 120-18210-BK
  • Caliper type: Combination Parking Brake
  • Construction: Aluminium / Steel
  • Finish: Black Powder Coat
  • Piston bores: 1.34 inches
  • Piston type: Steel
  • Piston count: 1
  • Published piston area: 1.41 square inches
  • Dust boots: Yes
  • Nominal rotor width: 0.38 inch
  • Rotor thickness limits: 0.32–0.38 inches
  • Rotor diameter limits: 11.00–13.00 inches
  • Mounting style: Radial
  • Mounting side: Left Hand
  • Mounting centers: 5.98 inches
  • Mounting-hole size: 0.39 inch
  • Mount height: 2.08 inch
  • Hydraulic inlet thread: M10 x 1.00
  • Required pad shape: D340
  • Published pad area: 4 square inches
  • Published pad volume: 1.5 cubic inches
  • Manufacturer-listed component weight: 6.1 lb

Fitment & Compatibility

Compare the complete rear brake arrangement with the caliper drawing, not just the nominal piston diameter. The rotor must meet the 0.32–0.38-inch thickness limits and be centered correctly in the sliding body. Check cable approach, lever clearance, bleeder position and the receiving radial bracket before selecting this left-hand unit.

PMB Performance brings over 20 years of brake and parts experience to selection questions. Send the existing caliper reference and brake-package details for help checking compatibility.
