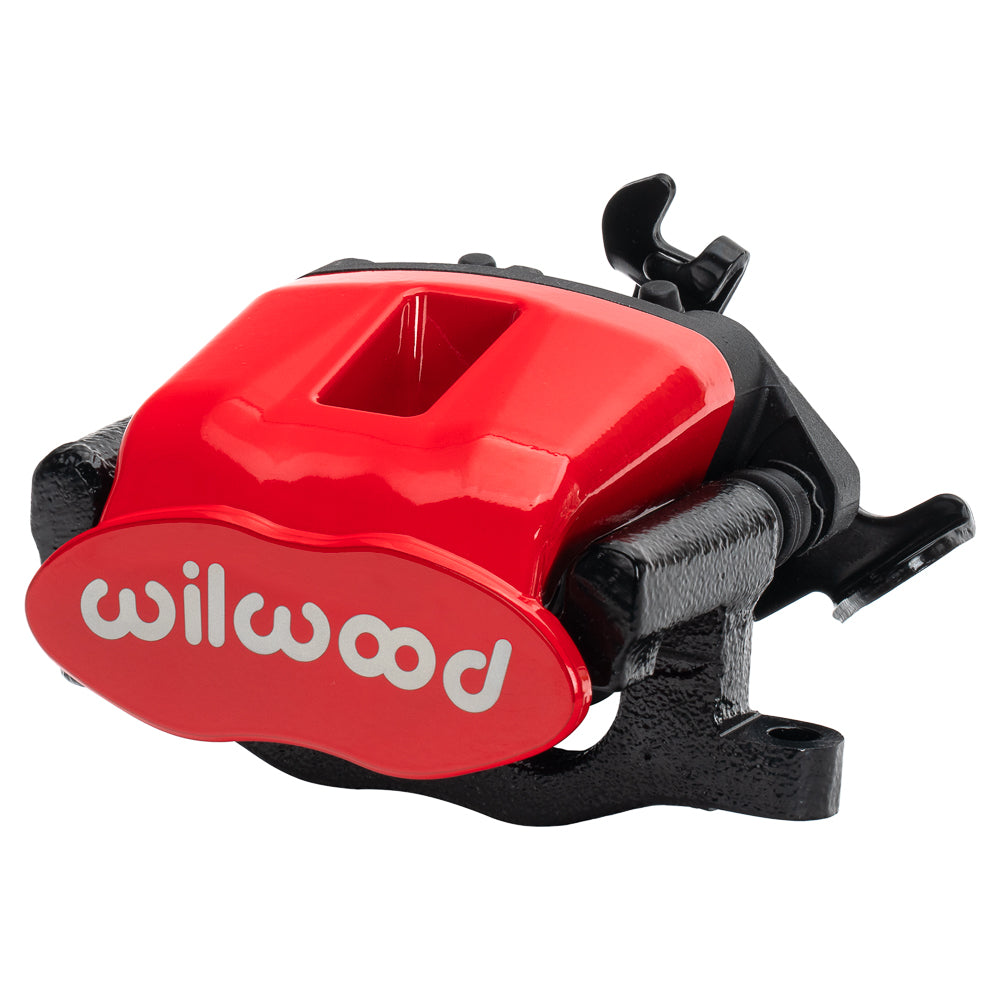

Wilwood Red Right Rear Combination Parking Brake Caliper with 34 mm Piston: red combination body, upper pad cavity and dark carrier

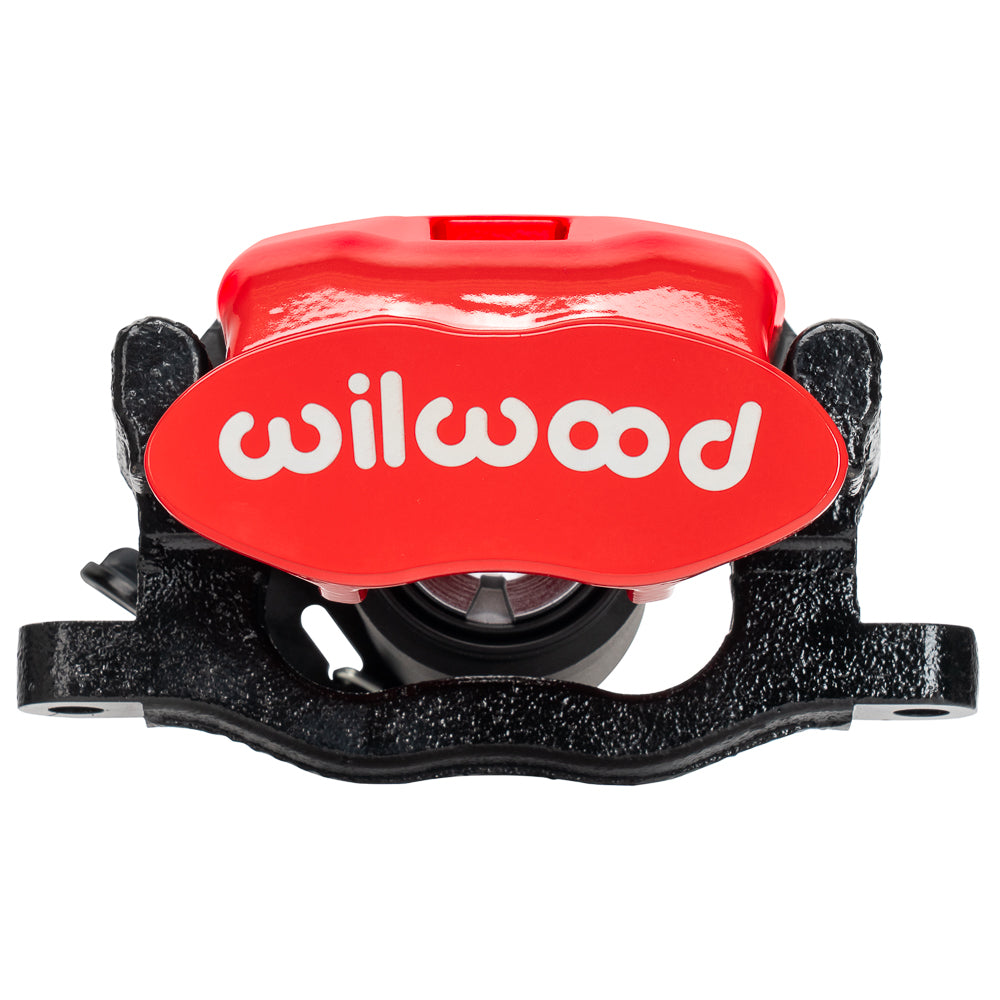

Wilwood red combination parking caliper, front-on family view with the lower piston area visible

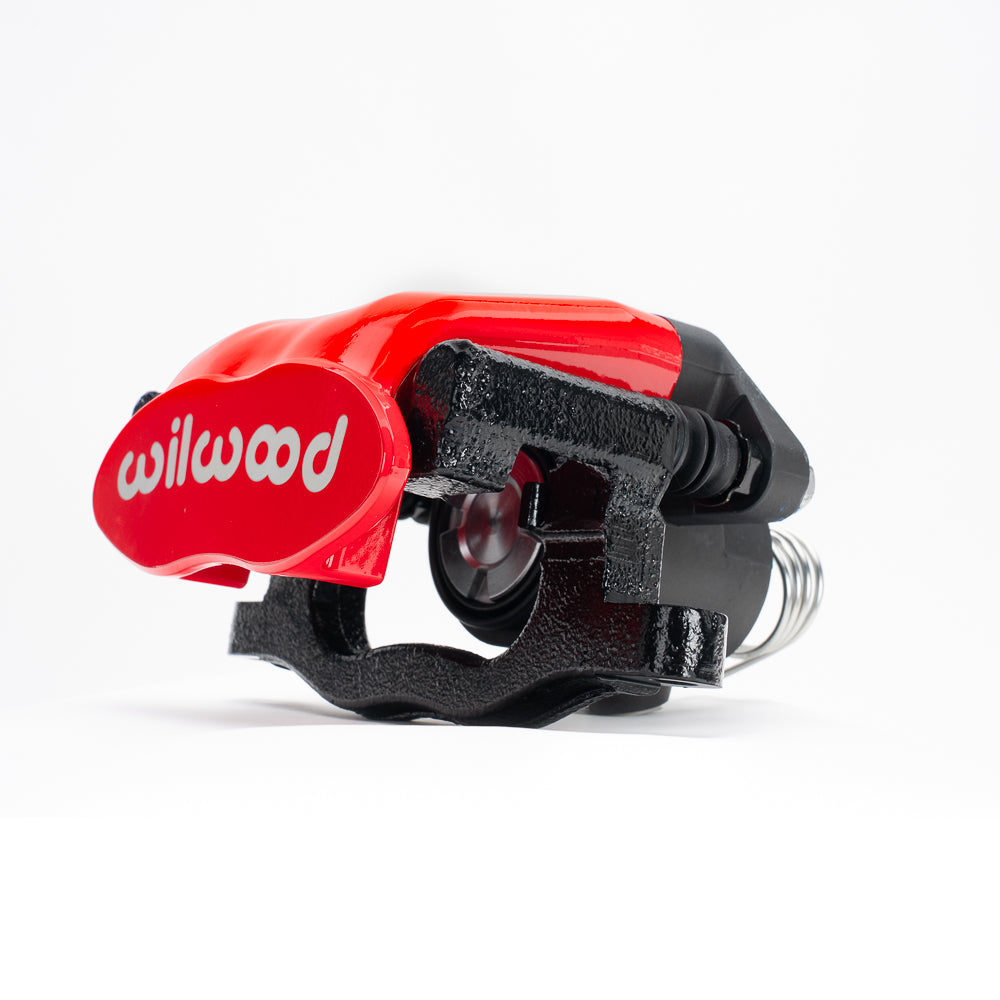

Wilwood CPB family housing in red, oblique view showing the carrier opening and spring

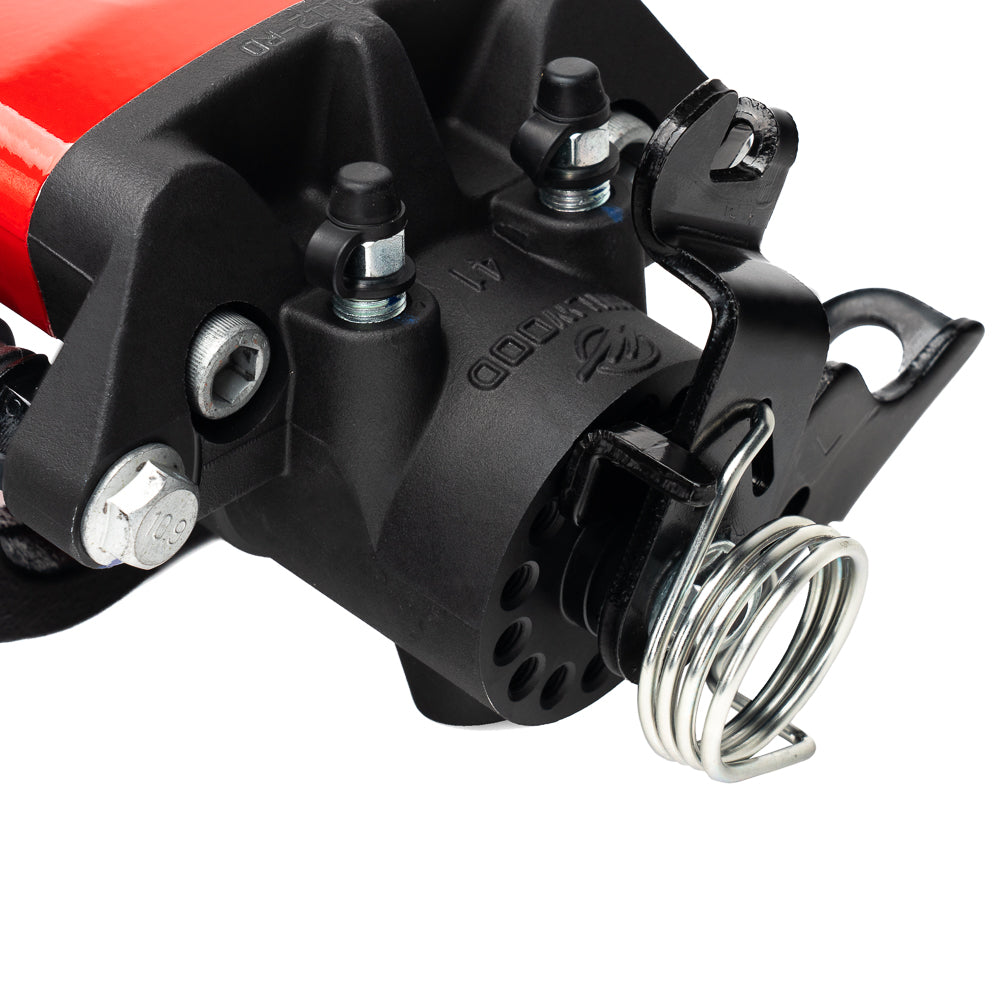

Wilwood combination-caliper rear mechanism, cable connection and coiled spring detail
Wilwood Red Right Rear Combination Parking Brake Caliper with 34 mm Piston: red combination body, upper pad cavity and dark carrier
Wilwood red combination parking caliper, front-on family view with the lower piston area visible
Wilwood CPB family housing in red, oblique view showing the carrier opening and spring
Wilwood combination-caliper rear mechanism, cable connection and coiled spring detail

Wilwood Red Right Rear Combination Parking Brake Caliper with 34 mm Piston

SKU: 120-18209-RD

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red right-hand CPB provides two brake functions in one caliper: hydraulic stopping and a mechanical cable parking mechanism. Its dust-booted stainless piston is specified at 1.34 inches, equivalent to the nominal 34 mm designation. This version’s 0.32–0.38-inch rotor thickness envelope separates it from the wider CPB bodies. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, from calipers and brake rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications; selection depends on the complete brake system.

Technical Details

  • Manufacturer part number: 120-18209-RD
  • Caliper type: Combination Parking Brake
  • Construction: Aluminium / Steel
  • Finish: Red Powder Coat
  • Piston bores: 1.34 inches
  • Piston type: Steel
  • Piston count: 1
  • Published piston area: 1.41 square inches
  • Dust boots: Yes
  • Nominal rotor width: 0.38 inch
  • Rotor thickness limits: 0.32–0.38 inches
  • Rotor diameter limits: 11.00–13.00 inches
  • Mounting style: Radial
  • Mounting side: Right Hand
  • Mounting centers: 5.98 inches
  • Mounting-hole size: 0.39 inch
  • Mount height: 2.08 inch
  • Hydraulic inlet thread: M10 x 1.00
  • Required pad shape: D340
  • Published pad area: 4 square inches
  • Published pad volume: 1.5 cubic inches
  • Manufacturer-listed component weight: 6.1 lb

Fitment & Compatibility

The rear axle requires a bracket that establishes the correct radial height and rotor offset while allowing the caliper to float. Match the 5.98-inch centers and inspect the full wheel envelope. Check the vehicle’s parking cable end, actuation travel and hydraulic fitting independently; this caliper alone is not an axle conversion kit.

PMB Performance brings over 20 years of brake and parts experience to selection questions. Send the existing caliper reference and brake-package details for help checking compatibility.
