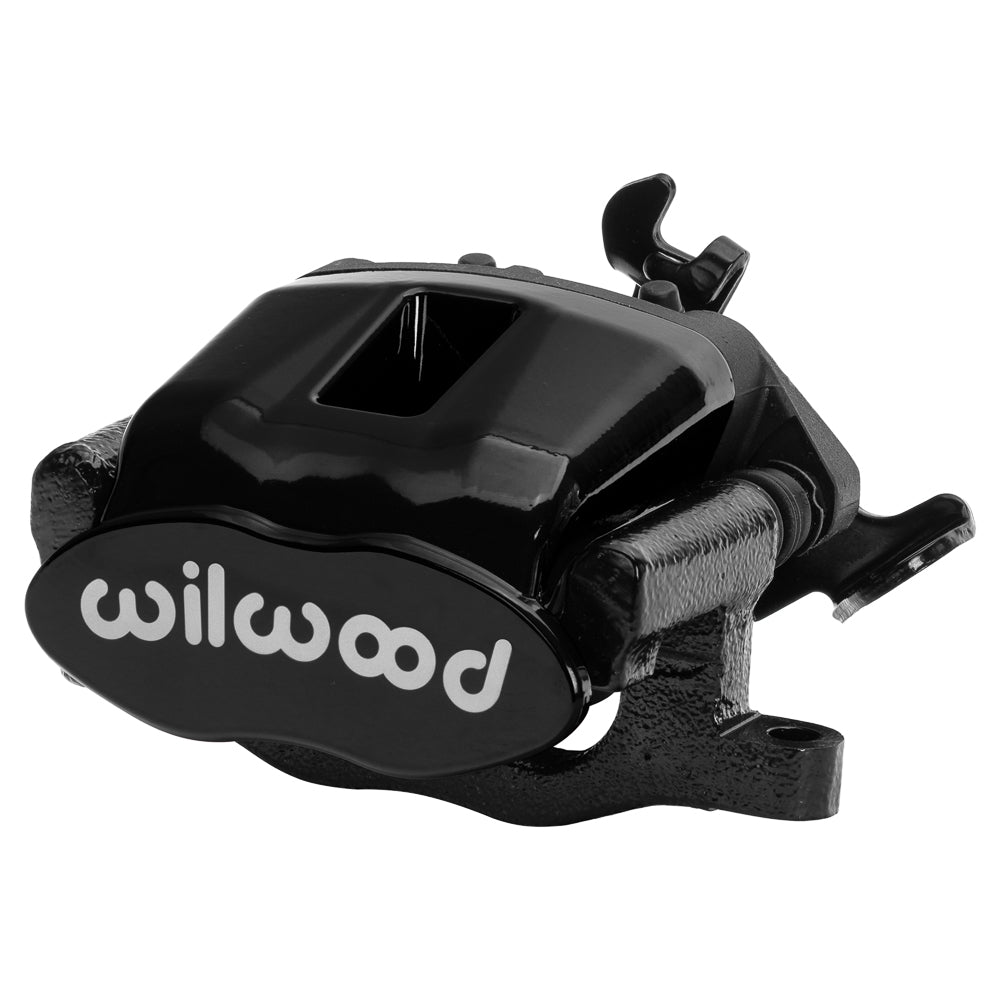

Wilwood Right Rear CPB Black Combination Brake Caliper, 0.38-Inch Rotor Width: black combination-caliper body with its pad opening and mounting carrier

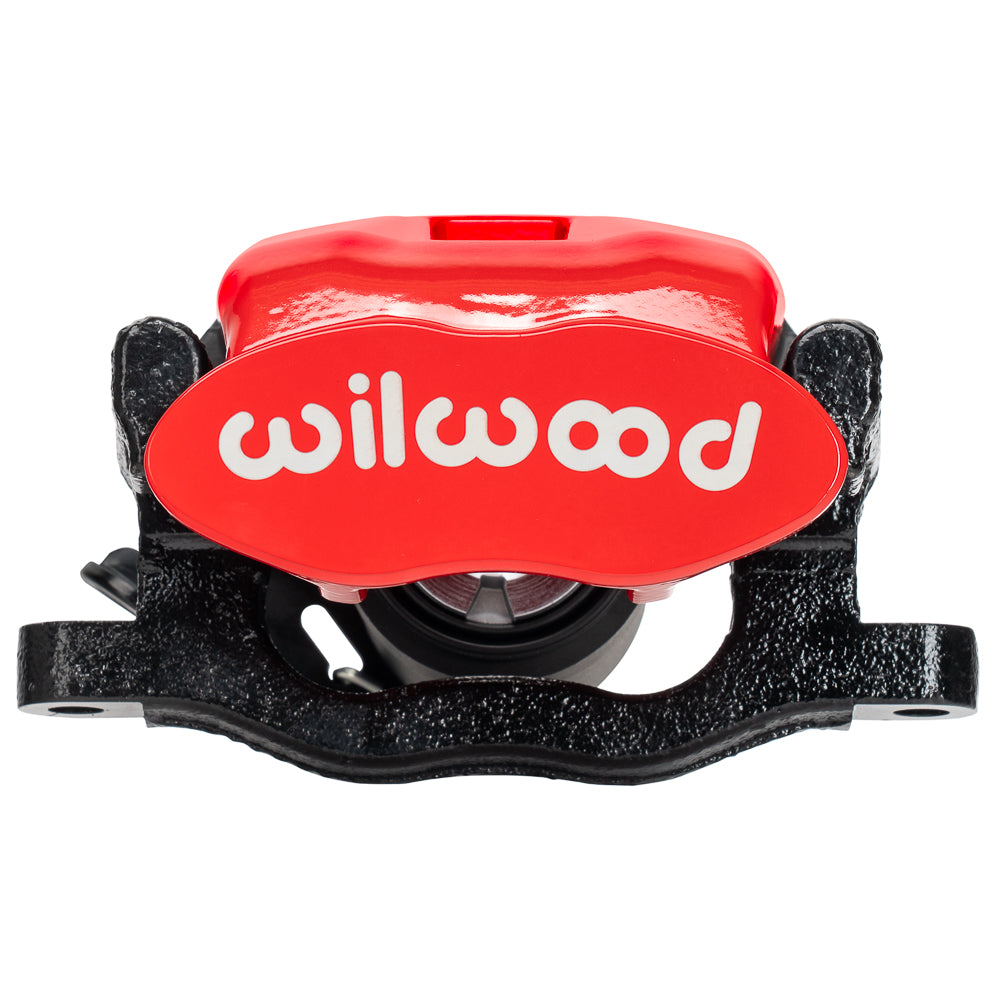

Wilwood CPB caliper in red, alternate front view showing the oval logo face and black carrier

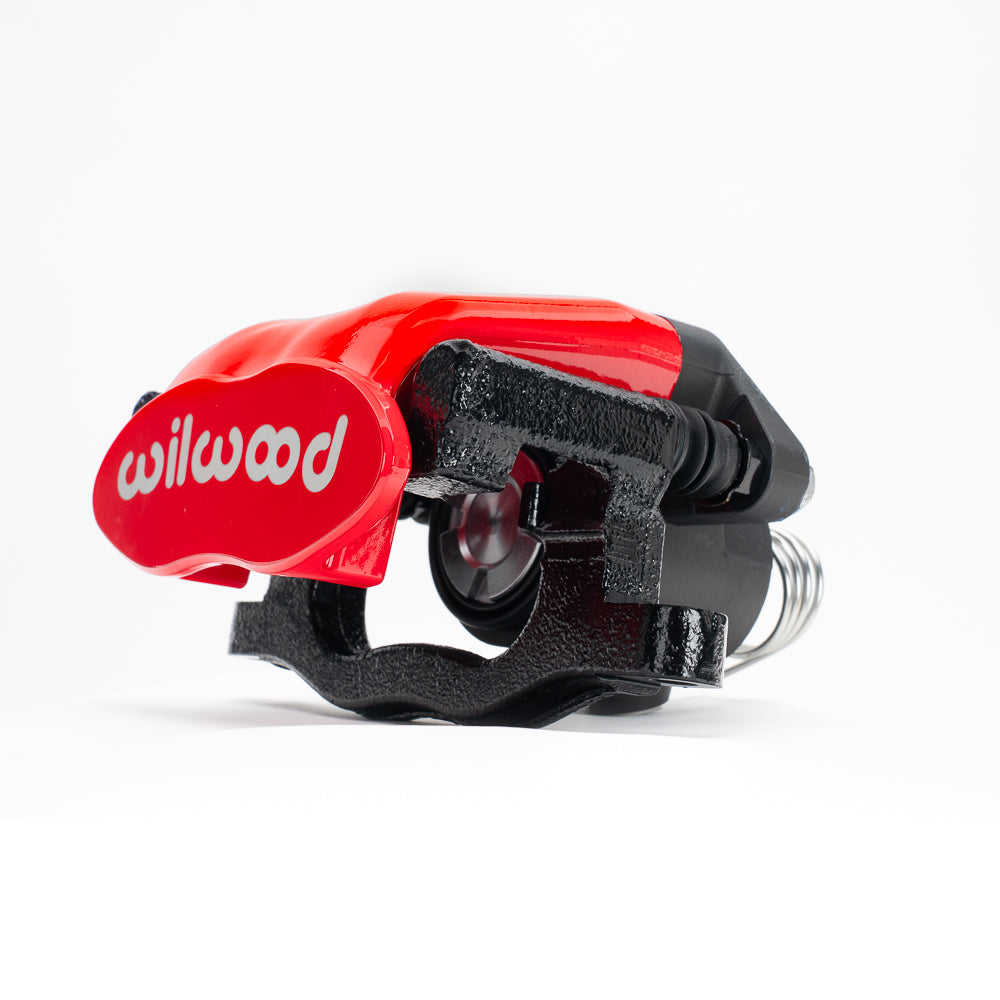

Wilwood red CPB family caliper, angled view of the open carrier and parking return spring

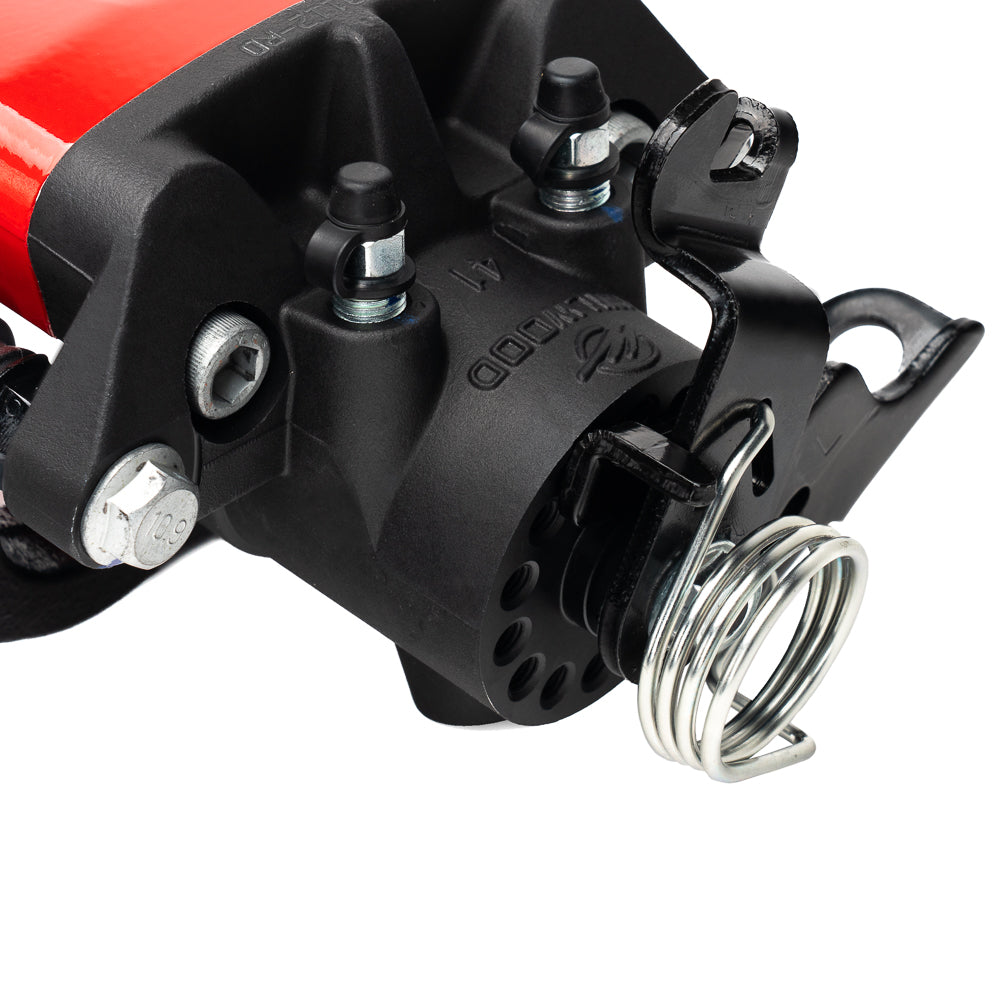

Wilwood CPB rear actuator detail with black cable lever housing, silver spring and red body edge
Wilwood Right Rear CPB Black Combination Brake Caliper, 0.38-Inch Rotor Width: black combination-caliper body with its pad opening and mounting carrier
Wilwood CPB caliper in red, alternate front view showing the oval logo face and black carrier
Wilwood red CPB family caliper, angled view of the open carrier and parking return spring
Wilwood CPB rear actuator detail with black cable lever housing, silver spring and red body edge

Wilwood Right Rear CPB Black Combination Brake Caliper, 0.38-Inch Rotor Width

SKU: 120-18209-BK

$315.52 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This black right-hand Combination Parking Brake caliper combines a hydraulic service brake with a cable-operated parking lock. It is the thin-rotor CPB configuration for a nominal 0.38-inch width, rather than an electric parking caliper. A single 34 mm piston works in a floating body carried by a fixed radial bracket. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.

Technical Details

  • Manufacturer part number: 120-18209-BK
  • Caliper type: Combination Parking Brake
  • Construction: Aluminium / Steel
  • Finish: Black Powder Coat
  • Piston bores: 1.34 inches
  • Piston type: Steel
  • Piston count: 1
  • Published piston area: 1.41 square inches
  • Dust boots: Yes
  • Nominal rotor width: 0.38 inch
  • Rotor thickness limits: 0.32–0.38 inches
  • Rotor diameter limits: 11.00–13.00 inches
  • Mounting style: Radial
  • Mounting side: Right Hand
  • Mounting centers: 5.98 inches
  • Mounting-hole size: 0.39 inch
  • Mount height: 2.08 inch
  • Hydraulic inlet thread: M10 x 1.00
  • Required pad shape: D340
  • Published pad area: 4 square inches
  • Published pad volume: 1.5 cubic inches
  • Manufacturer-listed component weight: 6.1 lb

Fitment & Compatibility

Choose it for a rear conversion or matching replacement only after checking the rotor and axle bracket. The published rotor diameter range is 11.00–13.00 inches, and the fixed bracket uses 5.98-inch radial centers. Verify cable travel and end fittings, the M10 x 1.00 hydraulic connection and correct bias with the front brake package.

PMB Performance brings over 20 years of brake and parts experience to selection questions. Send the existing caliper reference and brake-package details for help checking compatibility.
