Product details

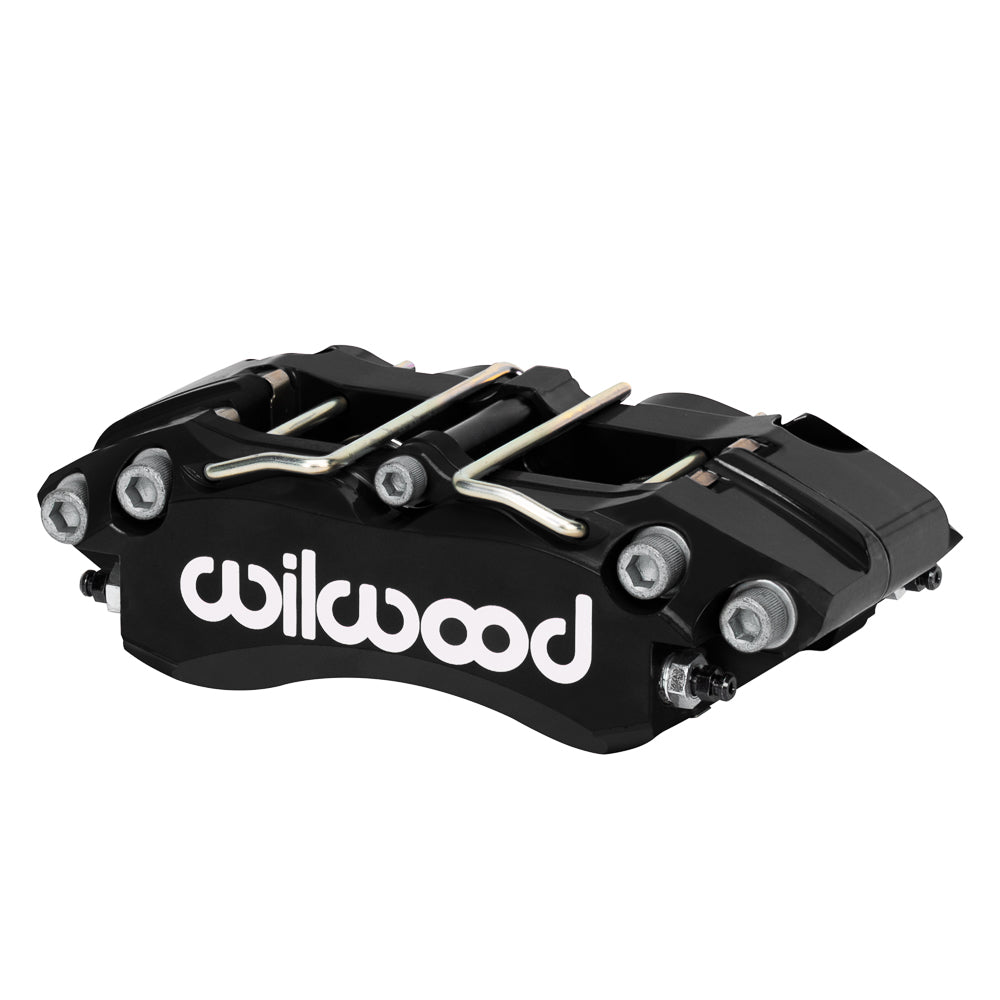

The black powder-coated Narrow DynaPro is a compact four-piston component using the thin-pad layout and a 0.25-inch rotor opening. There is a conflict between this part’s stated 1.96-square-inch piston area and its published bore fields. Confirm the correct piston specification before purchasing it as a replacement for a known hydraulic package. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among its products, selected according to the complete brake system’s requirements.
Technical Details
- Manufacturer part number: 120-18086-BK
- Caliper type: Narrow Dynapro Radial Mount
- Construction: Billet Aluminium
- Finish: Black Powder Coat
- Piston configuration: Four pistons; published bore and piston-area information require confirmation before selection
- Piston type: Stainless
- Piston count: 4
- Dust boots: No
- Nominal rotor width: 0.25 inch
- Rotor thickness limits: 0.25–0.25 inches
- Rotor diameter limits: 10.75–12.19 inches
- Mounting style: Radial
- Handedness: Not restricted to one side; correct mounting and bleed orientation required
- Mounting centers: 4.75 inches
- Mounting-hole size: 0.39 inch
- Mount height: 1.61 inch
- Hydraulic inlet thread: M10 x 1.25
- Required pad shape: 7812
- Published pad area: 6.36 square inches
- Published pad volume: 2.1 cubic inches
- Manufacturer-listed component weight: 4.1 lb
Fitment & Compatibility
Use the exact caliper identity during the compatibility check; a shared color or body outline cannot resolve the bore issue. Once confirmed, compare the radial bracket, rotor centerline and pad contact with the drawing. The M10 inlet thread, wheel-spoke envelope and bleed-screw orientation remain separate installation requirements.
