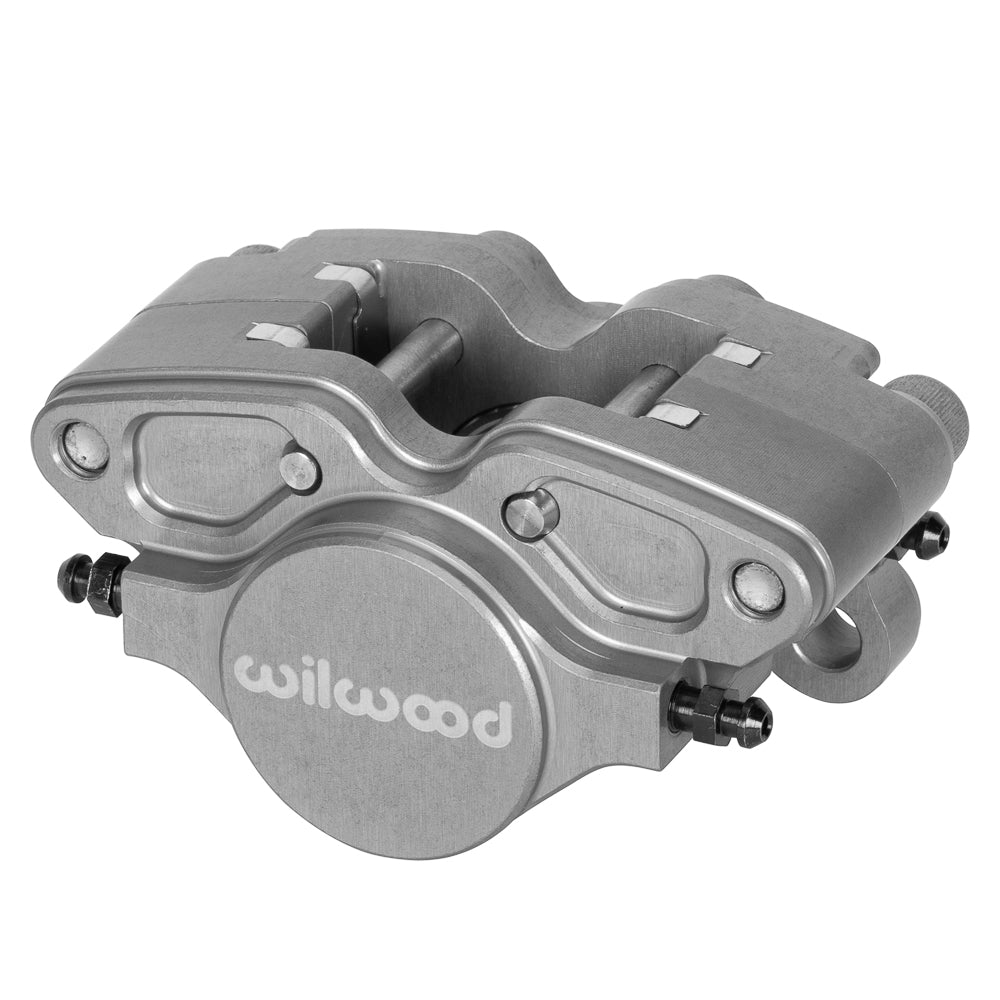

Wilwood Anodized GP200 Two-Piston Caliper, Above-Axle Logo Layout / 1/8-27 NPT Inlet: Gray compact GP200 caliper with a round central logo panel, bridge hardware and small bleed fittings.

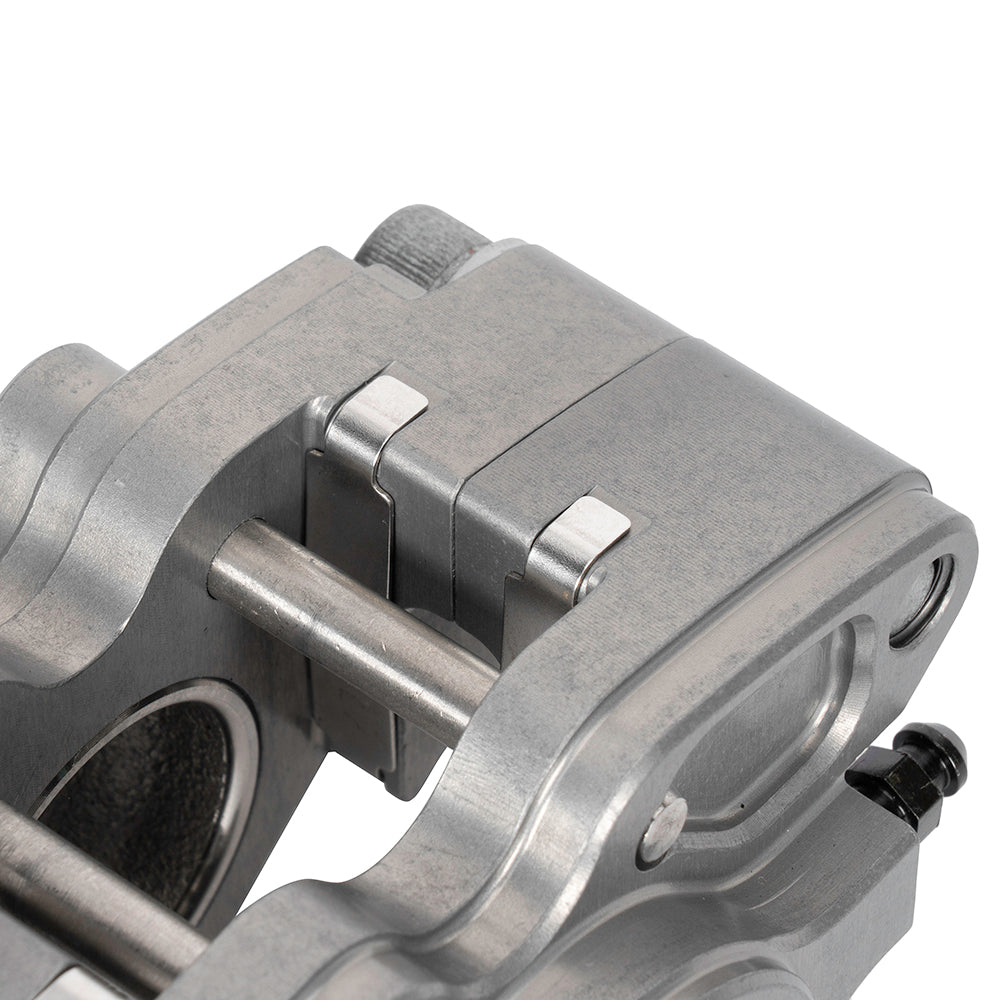

Wilwood Anodized GP200 Two-Piston Caliper, Above-Axle Logo Layout / 1/8-27 NPT Inlet: Close view of the GP200 bridge and pad-retaining pin hardware, with the upper pad opening visible.
Wilwood Anodized GP200 Two-Piston Caliper, Above-Axle Logo Layout / 1/8-27 NPT Inlet: Gray compact GP200 caliper with a round central logo panel, bridge hardware and small bleed fittings.
Wilwood Anodized GP200 Two-Piston Caliper, Above-Axle Logo Layout / 1/8-27 NPT Inlet: Close view of the GP200 bridge and pad-retaining pin hardware, with the upper pad opening visible.

Wilwood Anodized GP200 Two-Piston Caliper, Above-Axle Logo Layout / 1/8-27 NPT Inlet

SKU: 120-17702

$147.40 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wilwood GP200 is a compact two-piston caliper with a central 1/8-27 NPT inlet and logo layout intended for mounting above the axle. Its billet aluminum body, internal fluid crossover and 2.38-inch lug pattern address installations with limited available space. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

  • Manufacturer part number: 120-17702. Type: GP200 Caliper caliper.
  • Attachment geometry: lug mount with 2.38-inch centers; universal. 0.32-inch holes; 1.10-inch mounting height.
  • Rotor dimensions: outside diameter 8.00–11.00 inches; nominal width 0.25 inch, with width limits of 0.19–0.25 inch.
  • Pad fit uses shape 4908. Match the pad to the rotor and intended operating conditions.
  • Bore sequence 1.25 inches across 2 pistons. Piston construction: stainless steel; specified effective area 1.23 square inches.
  • Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
  • Construction and surface: billet aluminum, finished in Type III Anodize.
  • Caliper component weight: approximately 0.9 lb.
  • Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
  • Piston dust boots: no.

Fitment & Compatibility

Check the bracket and 4908 pad alignment on an 8.00–11.00-inch rotor, using the nominal 0.25-inch rotor-width configuration. Confirm the inlet and logo arrangement rather than substituting the inverted-logo GP200 with a different connection thread.
