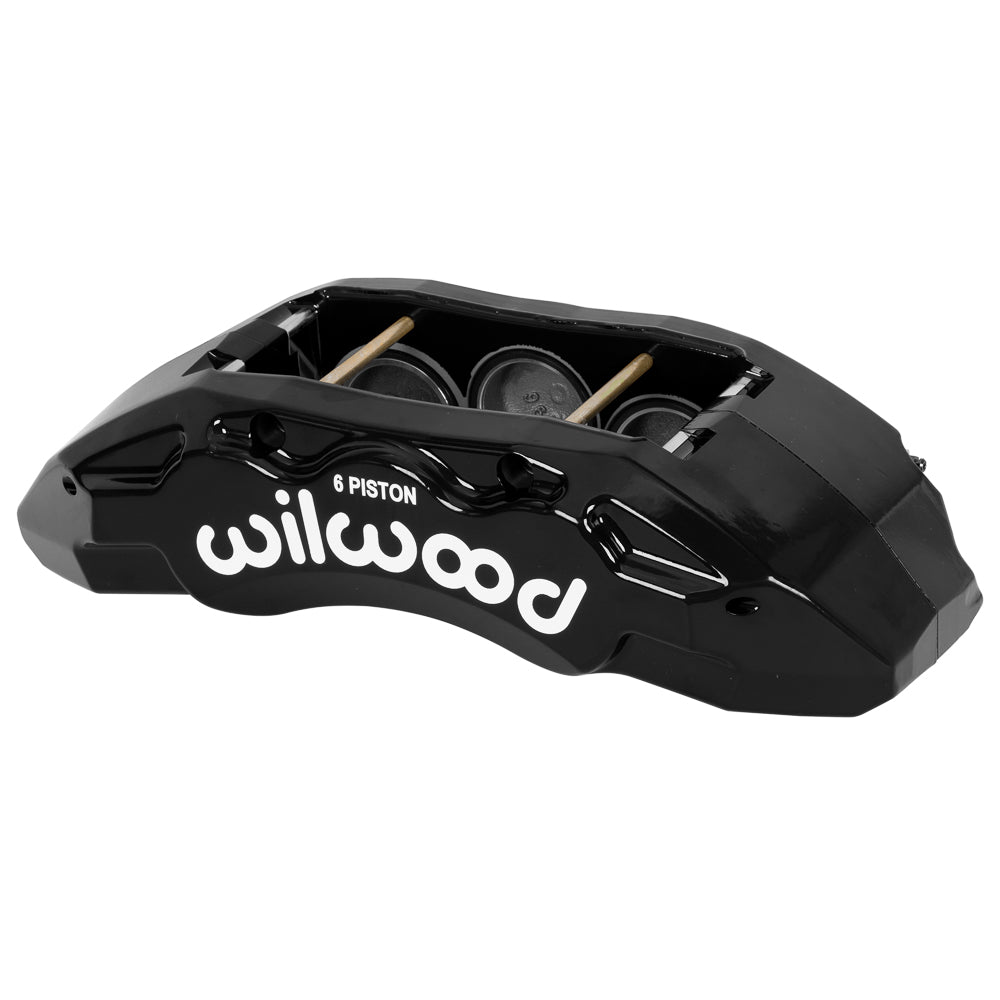

The black left rear Wilwood TX6 carries six stainless pistons for the documented later Ford heavy-duty truck rear brake package. A nominal 1.38-inch rotor channel and 5.04-square-inch effective area identify this configuration separately from the larger-bore front caliper. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17694-BK. Type: TX6-DM Forged Lug Mount caliper.
- Caliper body: forged aluminum; finish: Black Powder Coat.
- Mounting: lug, 12.00-inch centers; orientation: left hand.
- Piston arrangement: 6 stainless steel pistons; bore specification 1.62/1.38/1.38 inches. Effective piston area: 5.04 square inches.
- Brake pad shape: 10120. Choose pad dimensions and friction material for the brake system.
- Rotor channel: 1.38-inch nominal width. Specified width limits: 1.30–1.38 inch; rotor outside diameter: 15.50 inches.
- Piston dust boots: yes.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Caliper component weight: approximately 14.4 lb.
Fitment & Compatibility
Use the 2023-and-later Ford F-250/F-350 4WD rear conversion's bracket, rotor and flexline arrangement. Check rotor offset and the wheel-clearance drawing, and retain the caliper's proper left-hand piston sequence.
With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
