Product details

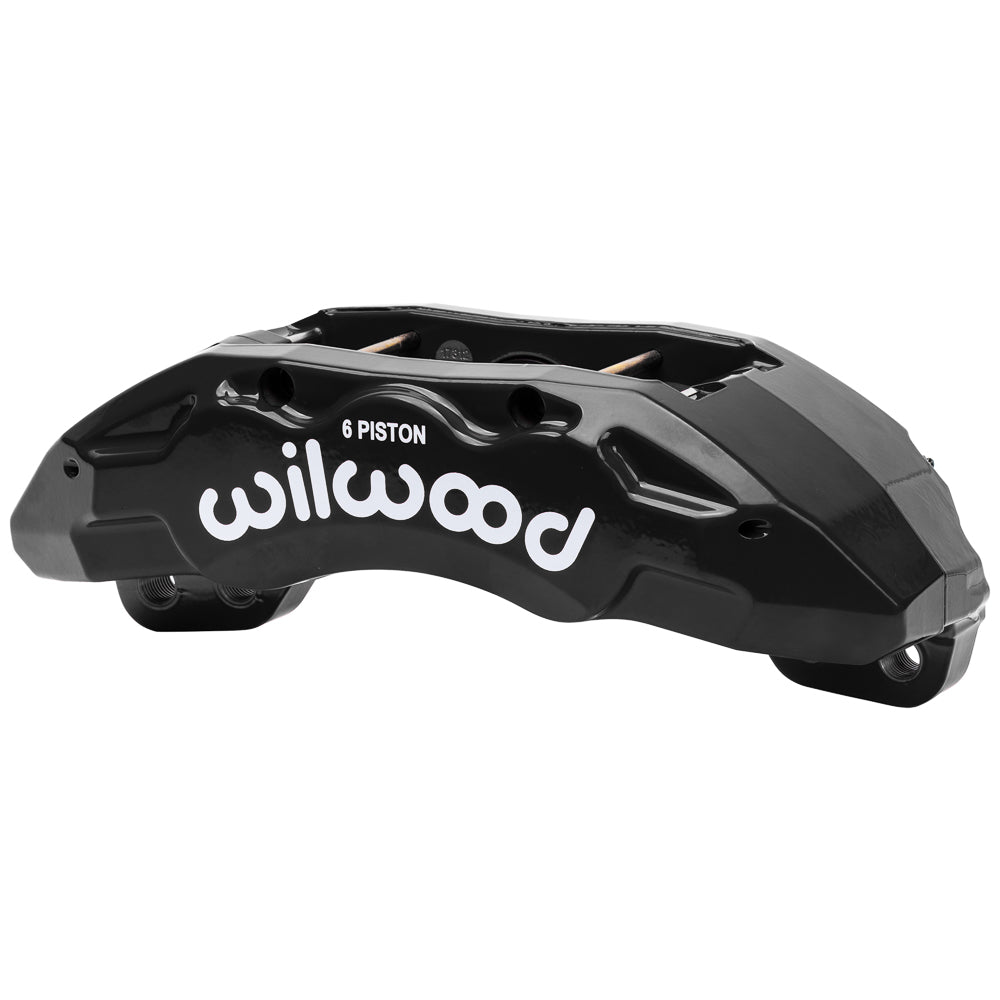

A black forged housing carries the six differential stainless pistons in this left front Wilwood TX6-DM. The caliper's 12.68-inch direct-lug spacing belongs to the 2023-and-later Ford F-250/F-350 4WD conversion with nominal 1.50-inch-wide rotors. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc braking systems for motorsport, street-performance and specialized applications, with a component range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-17689-BK. Type: TX6-DM Forged Lug Mount caliper.
- Pad fit uses shape 10120. Match the pad to the rotor and intended operating conditions.
- Construction and surface: forged aluminum, finished in Black Powder Coat.
- Rotor dimensions: outside diameter 15.00 inches; nominal width 1.50 inch, with width limits of 1.42–1.50 inch.
- Hydraulic inlet thread: 1/8-27 NPT. Match the fitting thread and sealing arrangement to the brake hose.
- Bore sequence 2.00/1.88/1.88 inches across 6 pistons. Piston construction: stainless steel; specified effective area 8.70 square inches.
- Attachment geometry: lug mount with 12.68-inch centers; left hand.
- Piston dust boots: yes.
- Component: one individual hydraulic brake caliper. Select the mating rotor, pads, mounting hardware and line connection to suit the complete brake assembly.
- Caliper component weight: approximately 14.4 lb.
Fitment & Compatibility
Compare the matching Wilwood rotor and front hose package with the truck's actual equipment. The later 4WD spindle geometry and complete wheel-clearance envelope need confirmation; this caliper is not an earlier F-250/F-350 interchange by appearance.
With 20+ years of experience, PMB Performance can help assess the brake hardware. Provide the caliper number, rotor dimensions and bracket measurements when asking about compatibility.
